Product information

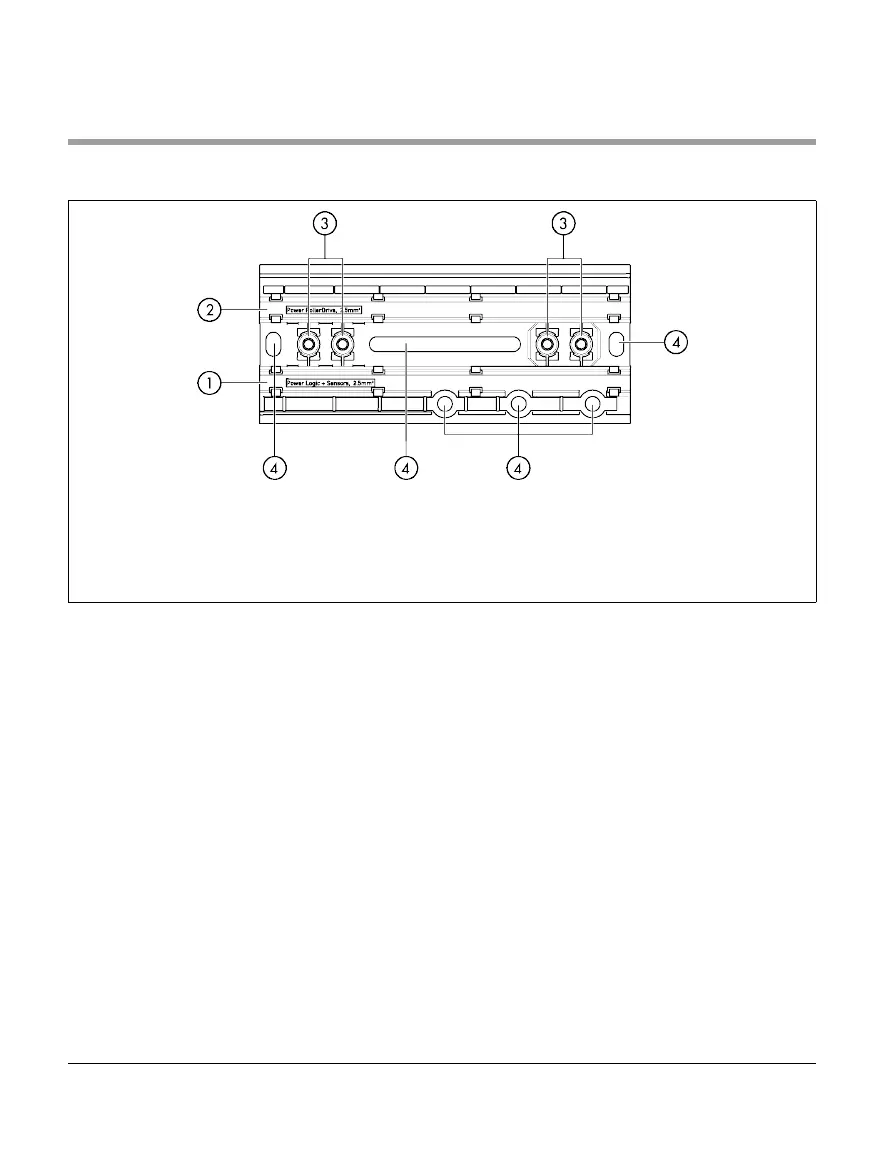

Base plate
1 Cable guide for power supply to logic and sensors (L1)
2 Cable guide for power supply to RollerDrive (L2)
3 MultiControl xing
4 Holes/slot for attaching the base plate
3.3 Scope of delivery
The scope of delivery of the MultiControl includes the following parts:
• MultiControl
• Base plate
• Two screws for attaching the MultiControl to the base plate
