Version 2.5 (11/2020) UL

Translation of the original operating manual

Assembly and installation

Characteristic values for the outputs

Output voltage 24 V DC

Maximum output current ≤ 200 mA

Output voltage "1" for PNP > 15 V at 200 mA

Output voltage "1" for NPN ≤ 5 V at 200 mA

¾ Seal any unused sensor connections with an M8 blind cap to achieve protection rate IP54.

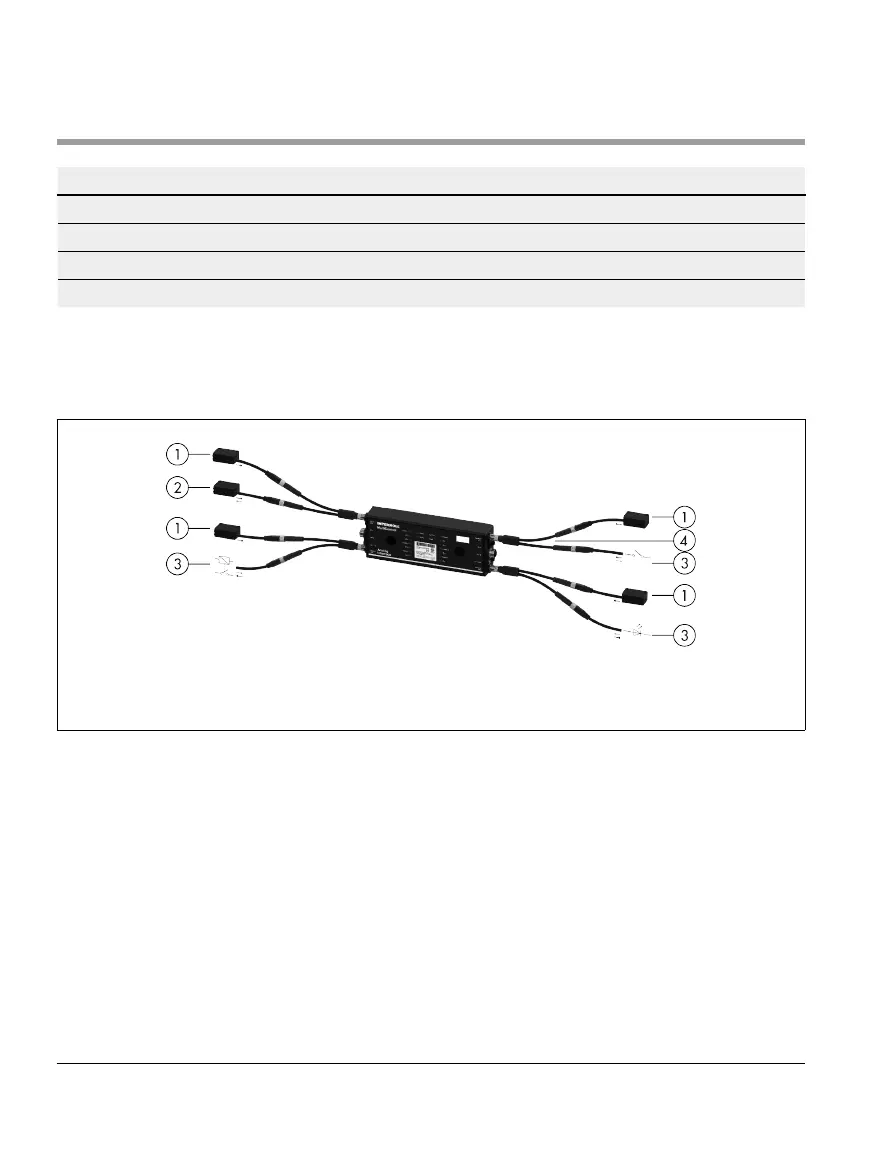

Overview of connections

1 Zone sensor 3 AUX I/O

2 Start sensor 4 Y-cable
