Assembly and installation

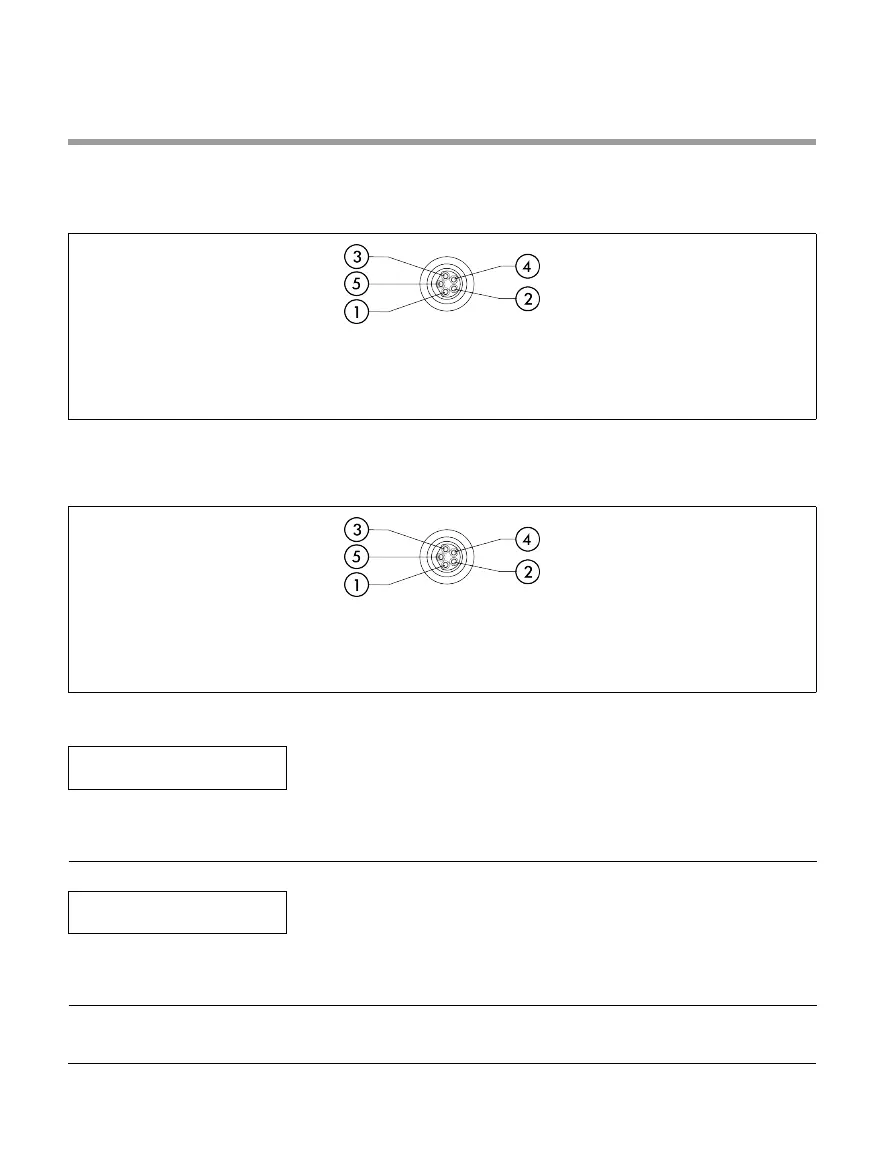

Connecting the RollerDrive
RollerDrive AI
1 +24 V/48 V 4 Input: Error
2 Output: Rotational direction 5 Output: Speed
3 Earth
¾ Seal unused RollerDrive connections with an M8 blind cap to achieve protection rate IP54.
RollerDrive BI
1 +24 V/48 V 4 CAN bus signal CAN Low
2 CAN bus signal CAN High 5 Service manufacturer
3 Earth
¾ Seal unused RollerDrive connections with an M8 blind cap to achieve protection rate IP54.
NOTE
Incorrect connected loads can destroy the RollerDrive.
¾ Do not attempt to operate a RollerDrive EC5000 24 V DC at 48 V DC. This will destroy the motor
electronics.
NOTE
Connecting/disconnecting under voltage can destroy the RollerDrive EC5000 with bus interface
¾ The RollerDrive EC5000 BI is not hot-plug-compatible. Disconnect the power supply to connect/disconnect
the RollerDrive EC5000 BI.
