Version 2.5 (11/2020) UL
Translation of the original operating manual 23 of 140
Assembly and installation
¾ Drill two holes with a diameter of 6.5 mm through the markings in the conveyor frame.
¾ Attach the base plate to the conveyor frame with M6 screws.
¾ Make sure the base plate has not been distorted.
¾ Insert the ribbon cables for the power supplies (see „Connecting the power supply“ on page 26).

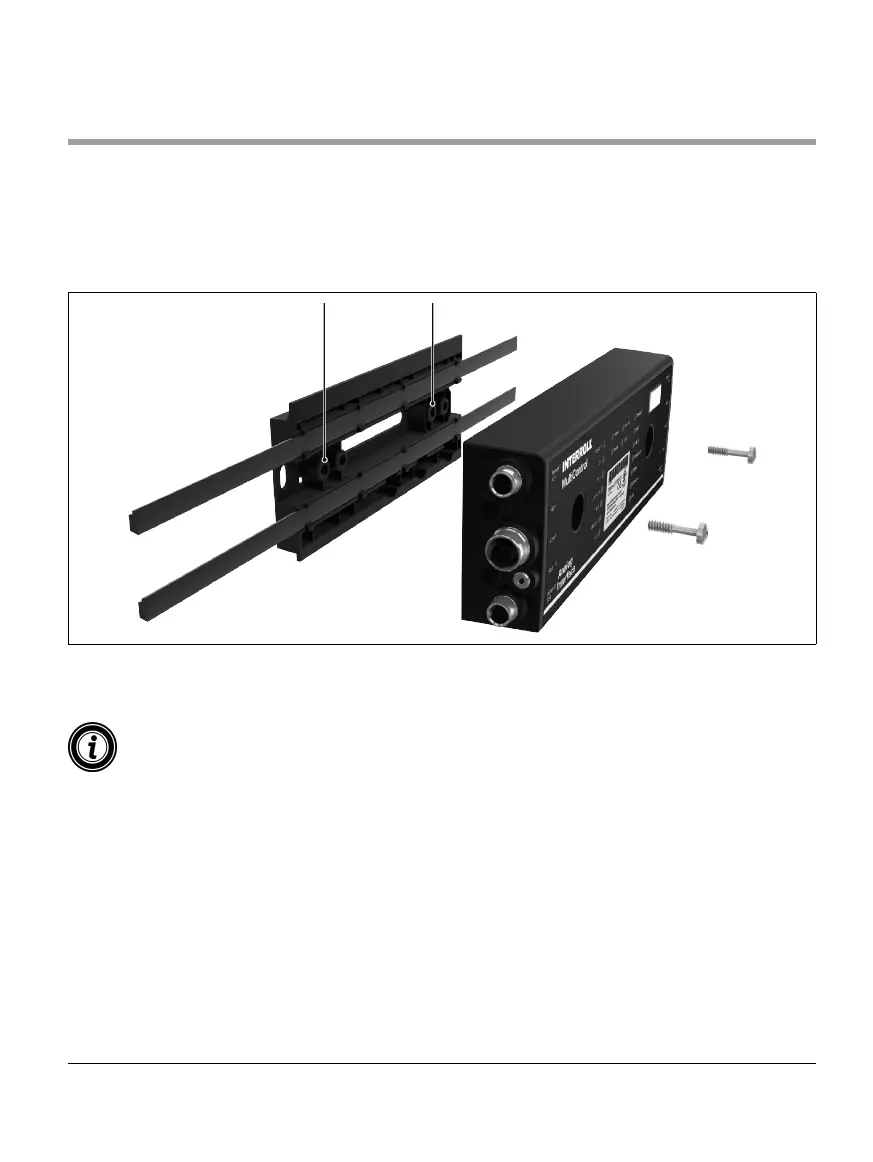

¾ Place the MultiControl on the left-hand holes and press it down until the lock engages.
¾ Screw the MultiControl onto the base plate (max. tightening torque 2,5 - 2,75 Nm). This drives the piercing
contacts through the ribbon cable and makes contact with the power supplies.
Use the screws provided to attach the MultiControl to the base plate.
