InVid Tech Protect Series - 1.5 Power Supply Connection

4

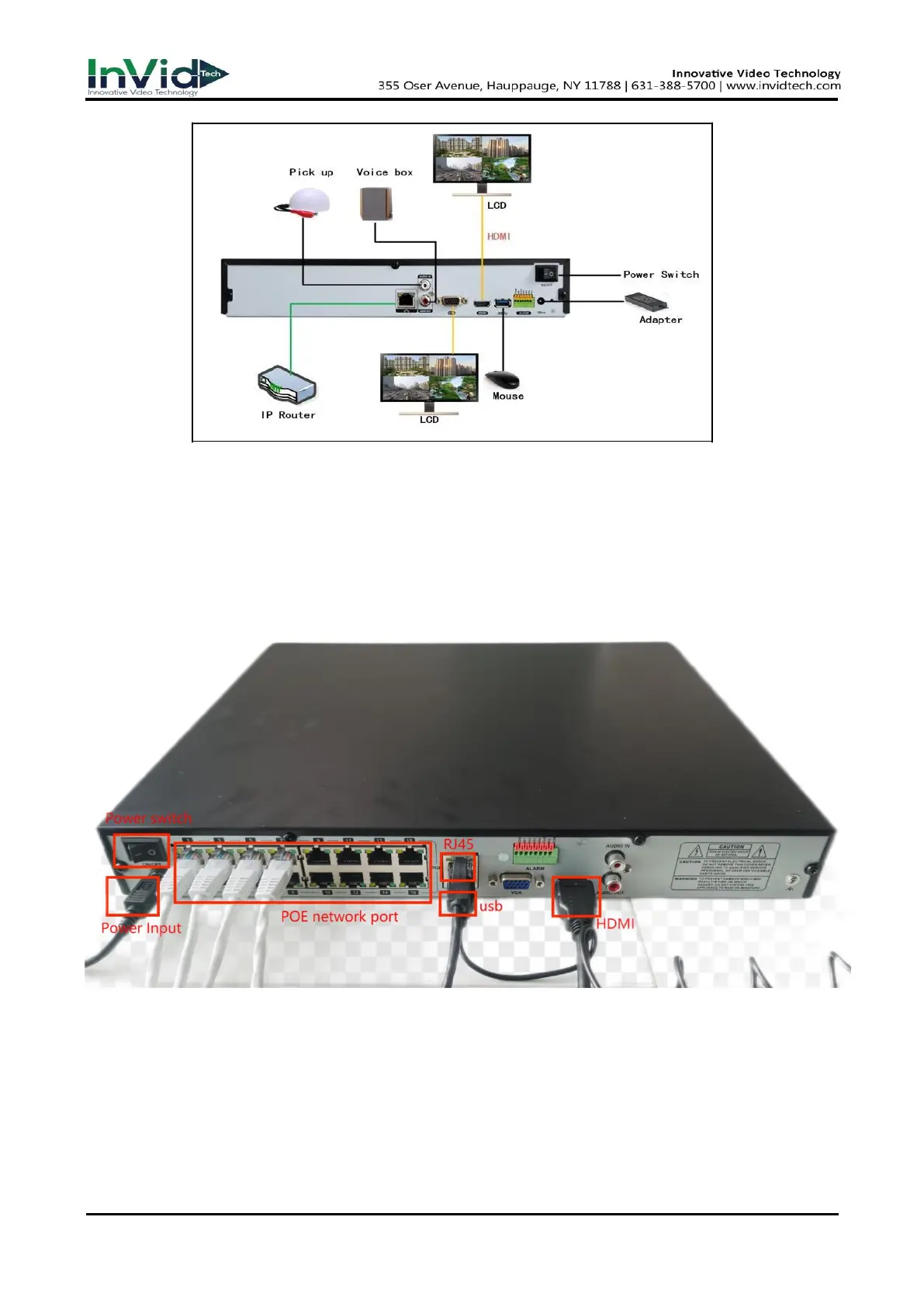

Figure 1-4-1 Device connection
1.5 Power Supply Connection
Please use attached power adapter to connect NVR. Before power on, make sure the cables on the
audio I/O ports and network port are well connected.
Figure 1-5-1 Power Supply Connection
