Iseki SGR19 User Manual

51
CHAPTER 4. TRANSMISSION & RELATED PARTS

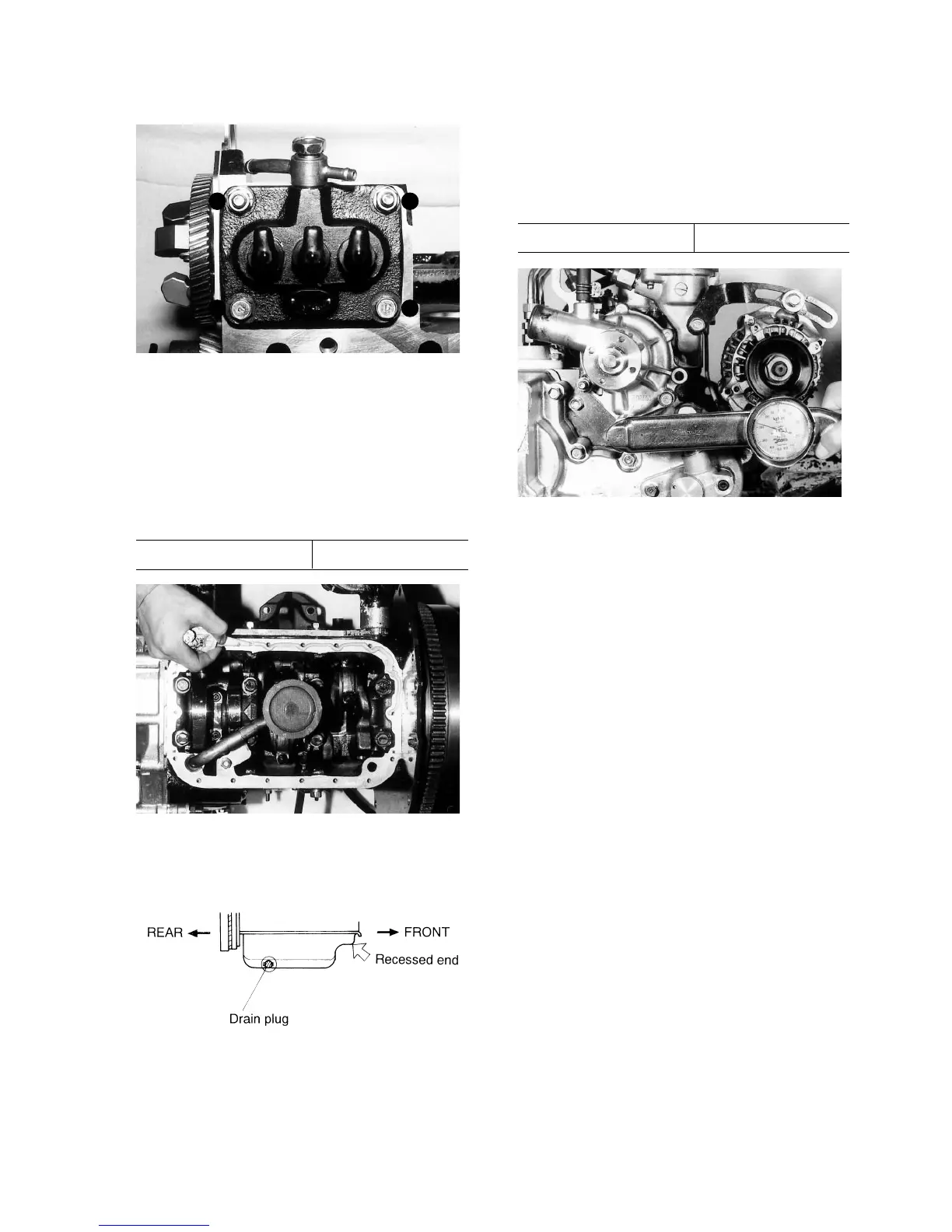

Fig. 3-110
• Installation of the oil pan
Apply liquid gasket to the cylinder block sur-
face in shape of a string of Ø3 – 3.5 mm as illus-
trated. Then install the oil pan and tighten to the
specified torque.
Specified torque 0.8 kgf·m
1
2 3
4
Fig. 3-111
• Install the oil pan with the recessed part turned
forward.
• Install the water pump spacer.
• Install the water pump with a new packing and
tighten to the specified torque.
Specified torque 1.9 kgf·m
Fig. 3-112
• Install the gear case.
• Install the cylinder head.
Fig. 3-113
• Install the water by-pass hose.
• Install the generator.
• Install the fan.
Set the fan belt on the fan pulley.
Install the spacer and the fan.
