Chapter 6 ELECTRIC ASSEMBLY
IP-EMZ Service Manual 6-17

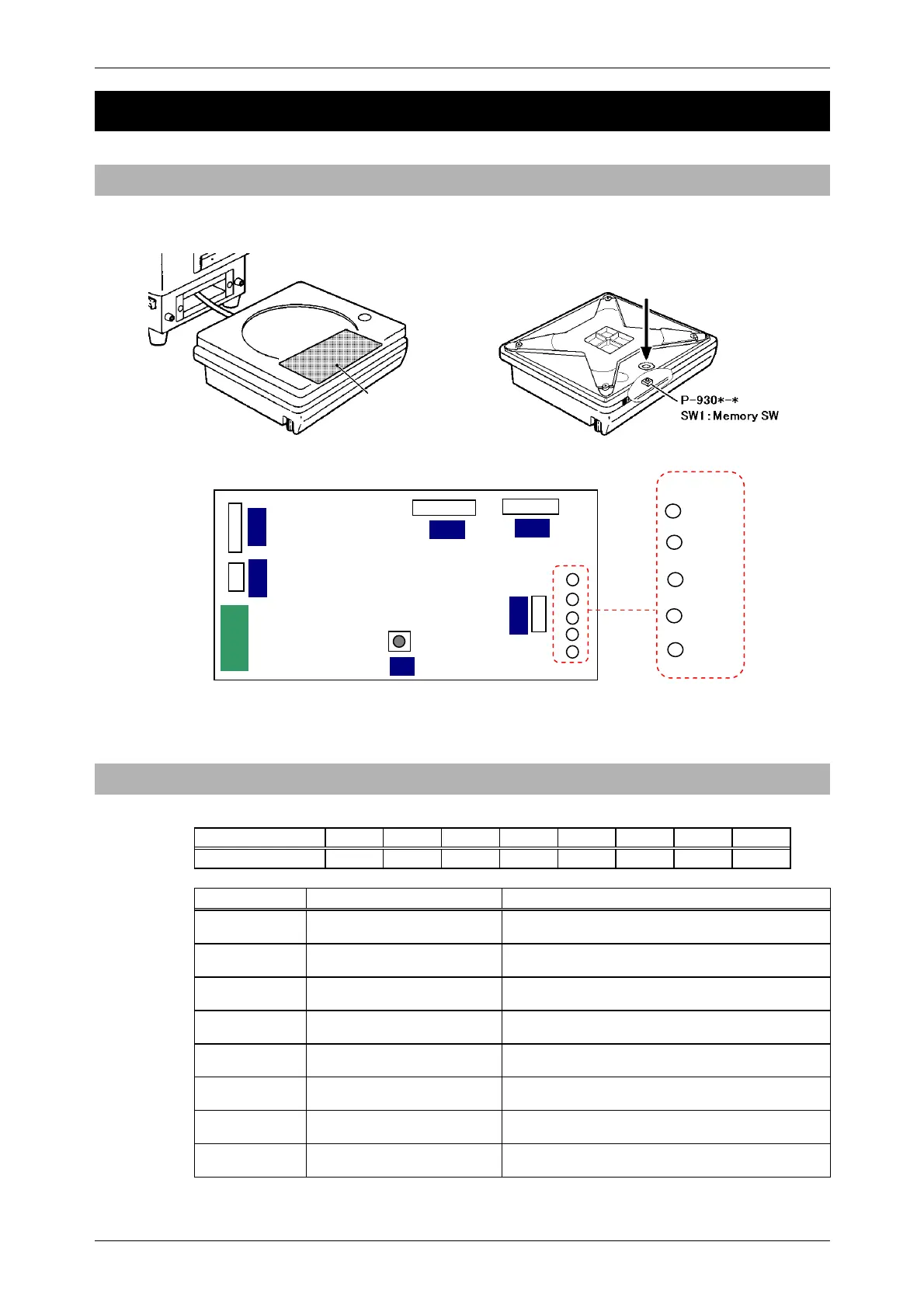

6.8 SCALE BOARD (P-930A-1/2)
6.8.1 BOARD LOCATION
This board is located in the scale unit.
Please push a Memory switch after the completion of adjustment.
6.8.2 DIP SWITCH SETTING
Switch No. 1 2 3 4 5 6 7 8
S3 OFF OFF OFF OFF OFF OFF OFF OFF
DIP switch bit
Function Set content
1 Board number
OFF: Command set
ON: “0” fixed
2
Storage command
OFF: Command prohibited
ON: Command allowed
3
Test mode
OFF: Command allowed
ON: Command prohibited
4
Move average
OFF: 8 times
ON: None
5
Zero bias
OFF: Yes
ON: No
6
Weight when transmitting
OFF: None
ON: 20msec
7
A/D data
OFF: ASC-HEX 5byte
ON: ASC-HEX 6byte
8
Analog filter
OFF: Soft
ON: Hard
XJ 4
XJ 5
XJ 6
S 1
XJ 3
P-930*
S1:Memory SW
XJ 1
Black Blue Green White Red
SLD IN- IN+ GND VXE
P-930A-1/2
15kg/30lb: P-930A-2
6kg: P-930A-1
