Chapter 3 TEST MODE
IP-EMZ Service Manual 3-29
3.13.1 SRAM DATA CHANGE
Press the [SRAM Data Change] button on the Memory Data Change Menu screen. Then, the SRAM
Data Change screen appears. This procedure is used to confirm or change SRAM data on the
memory dump list.

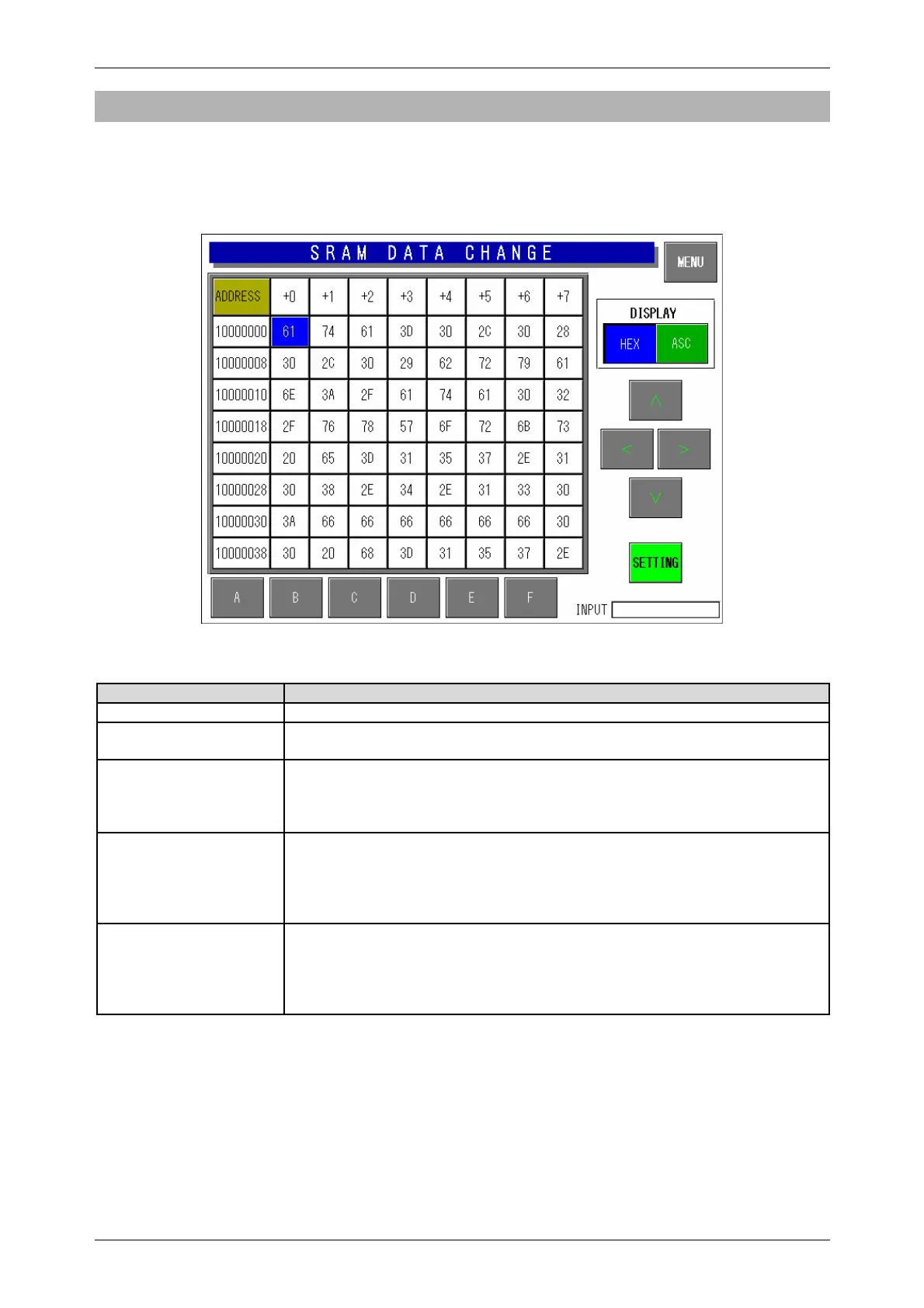

SRAM Data Change Screen
Buttons/Display Fields Function
MENU Returns to the Memory data change menu screen.
SRAM Data Button Press any button (address position) to change its color to blue and enable
settings for modification. The memory data status is displayed.
Display Select either “HEX” or “ASC” data formats.
Press one of these buttons to select the data format and the selected button
will change to blue. The data display format will change in the SRAM data
display field.
Up/Down
Left/Right
Press these buttons to move active SRAM data (address) positions.
Press these buttons without a numeric entry to move the cursor in the desired
direction.
Press one of these buttons after a numeric entry to move the cursor to the
entered address position.
SETTING Press this button after numeric entry to set the entered data to the memory
data to be changed (RAM data field is blue).
The data range is 0-FF.
An operation error buzzer will sound if data is entered outside the range or
there is no numeric entry made.
To Next Page
