Chapter 3 TEST MODE
IP-EMZ Service Manual 3-13
 DIP Switch Settings
DIP SW bit Content
0
Board No.
0: Set with “X” command
1: “0” fixed
1
Storage command
0: “W” command prohibited
1: “W” command allowed
2
Test mode
0: “∗” command prohibited
1: “∗” command allowed
3
Movement average
0: 8 times
1: None
4
Zero bias
0: Yes
1: No
5
Sending weight
0: No
1: 20msec
6
A/D data
0: ASC-HEX 5byte
1: ASC-HEX 6byte
7
Analog filter
0: Software
1: Hardware

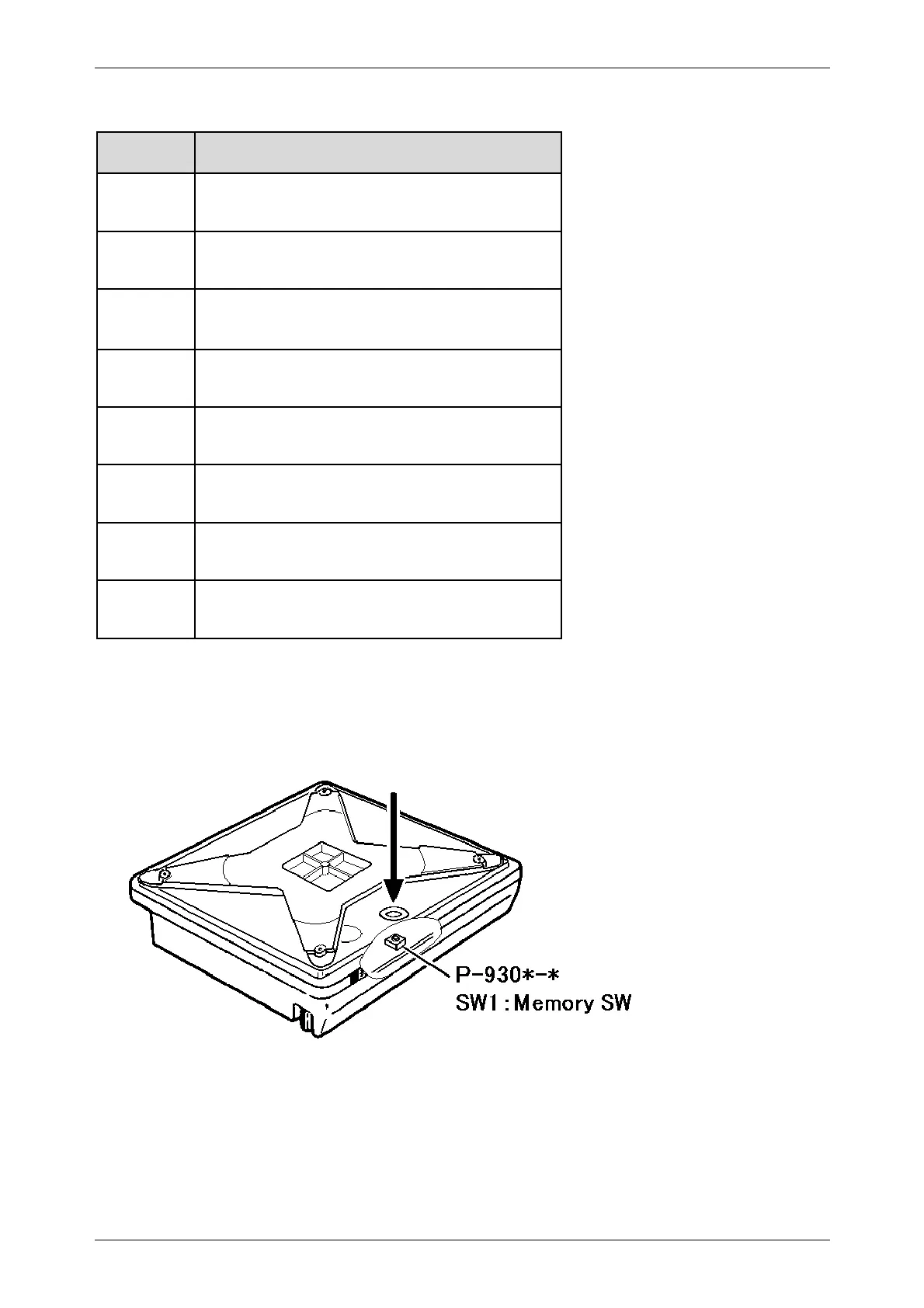

 Memory Switch
Please push a Memory switch after the completion of adjustment.
