iteco IT 10122 - Main Components

OPERATING AND MAINTENANCE HANDBOOK

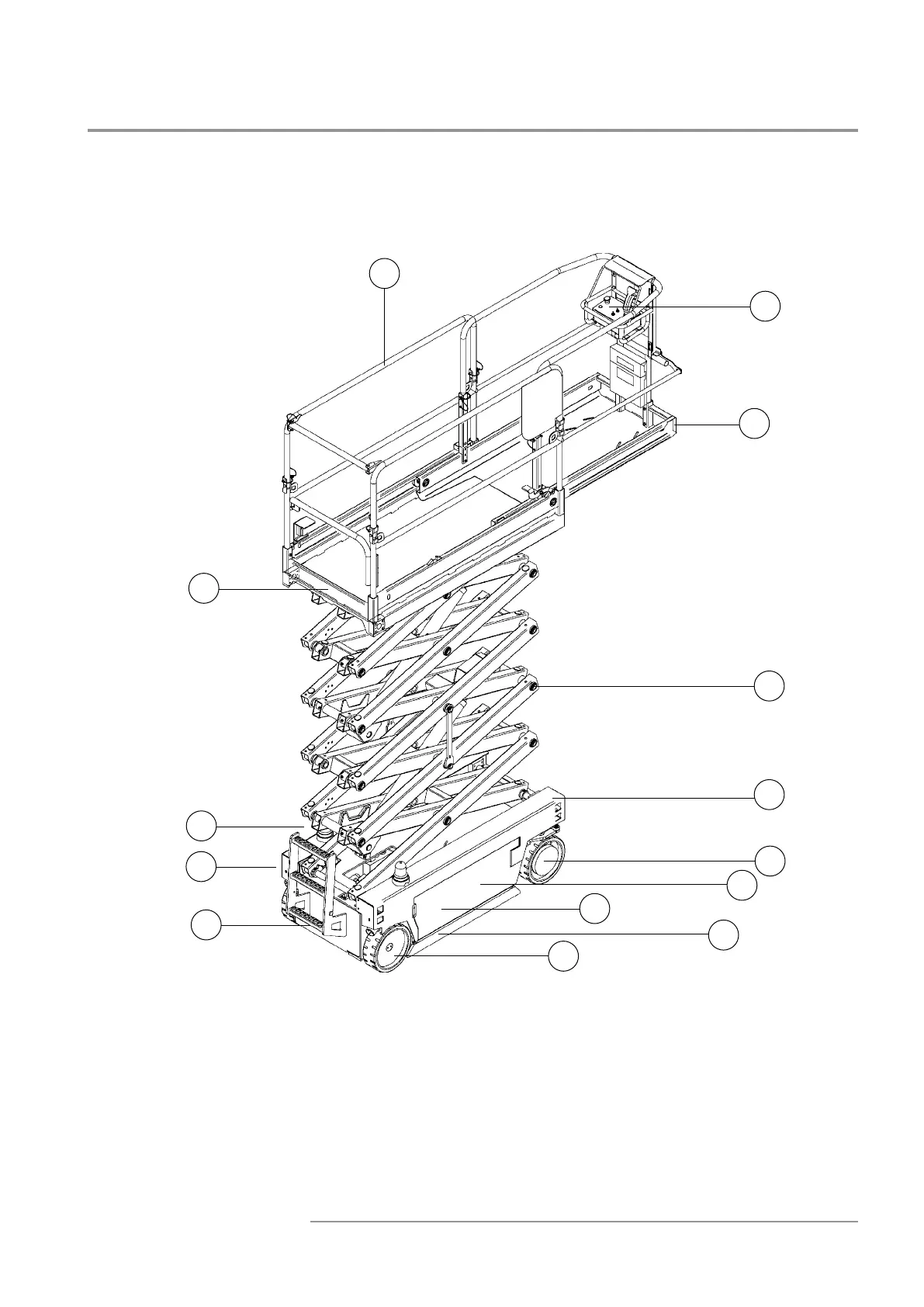

Main components
1 - Truck
2 - Drive wheels
3 - Liing structure:
4 - Fixed platform
5 - Control box
6 - Platform extension
7 - Baeries
8 - Ground control panel
9 -Electro-hydraulic control unit
10 - Idler wheels
11 - Railings
12 - Protections against overturning
2
3
1
5
11
12
7
4
8
7
6
10
IT10122 - IT12122
IT10122 5 scissors 2 liing cylinders
IT12122 6 scissors 2 liing cylinders
9
13 - Optional baeries
13
