OPERATING AND MAINTENANCE HANDBOOK
220V Line
To supply current in platform it is necessary to connect a mains cable
to the right back plug (pos. 3).
A socket foreseen in the platform supplies current to electric instru-
ments.
Rotating beacons
Every time the machine carries out a movement the rotating beacons
(pos. 4) installed on the truck go on.
IT10122 - IT12122

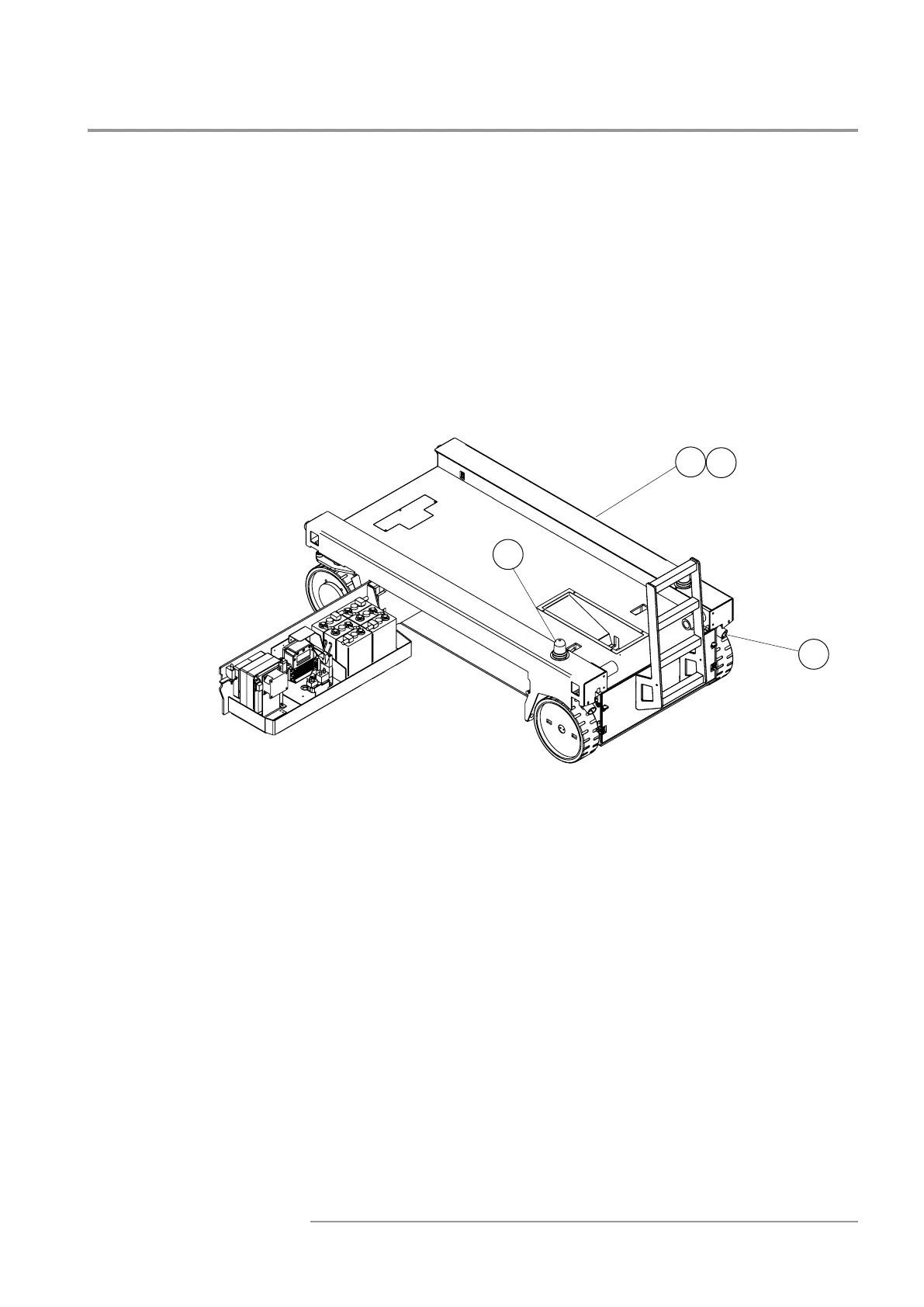

A cut-out box switch (pos. 1) and a magnetothermic switch (pos. 2)
have also been provided in the truck centre.
2
3
4
1
