OPERATING AND MAINTENANCE HANDBOOK
Load limiting device
The load limiting device consists of:
•An electronic control unit positioned in the le box
•An angular sensor (positioned under the platform)
•An analogue pressure sensor (positioned on liing cylinder/s cham-
ber directly)
Overloads, if any, are checked by the above-mentioned device both
with the machine at a standstill position and during platform liing.
An overload pilot light is on both in the ground control panel and in
the platform control panel, and an audible alarm is activated in the
presence of a load between the nominal one and a value up to 120%
of the laer: all machine movements are stopped.
To enable the movements again, it is necessary to remove the over-
load.
Safety belt connection

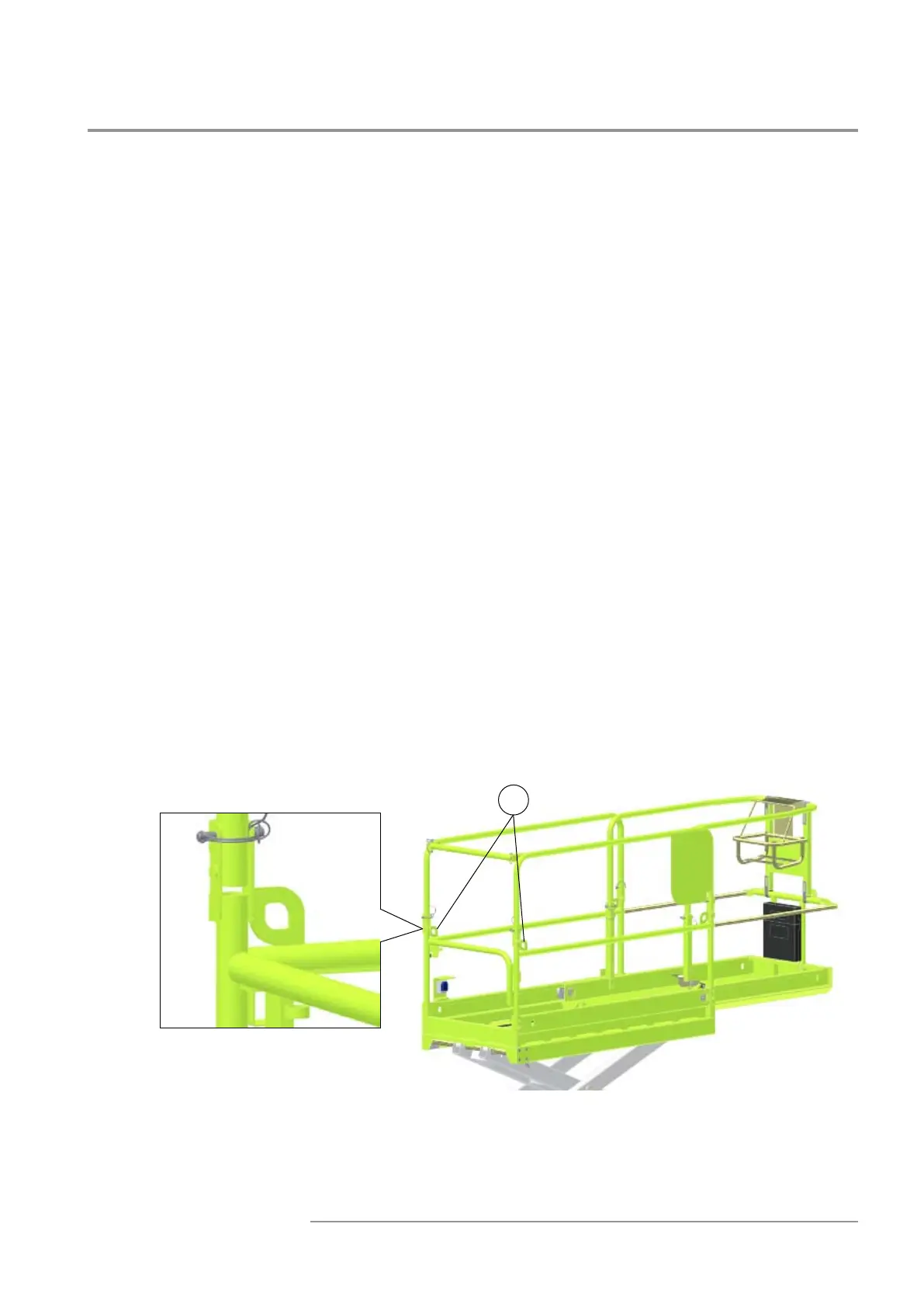

The machine is provided with suitable aachment points for the safety
belts (A) as indicated in the following picture:
A
IT10122 - IT12122
