iteco IT 10122 - Control Panels; Ground Control Panel

OPERATING AND MAINTENANCE HANDBOOK
Control panels
The aerial liing platform is equipped with 2 control panels: ground
control panel and platform control panel.
All movements are controlled by platform control panel; ground control
panel is an emergency control position.

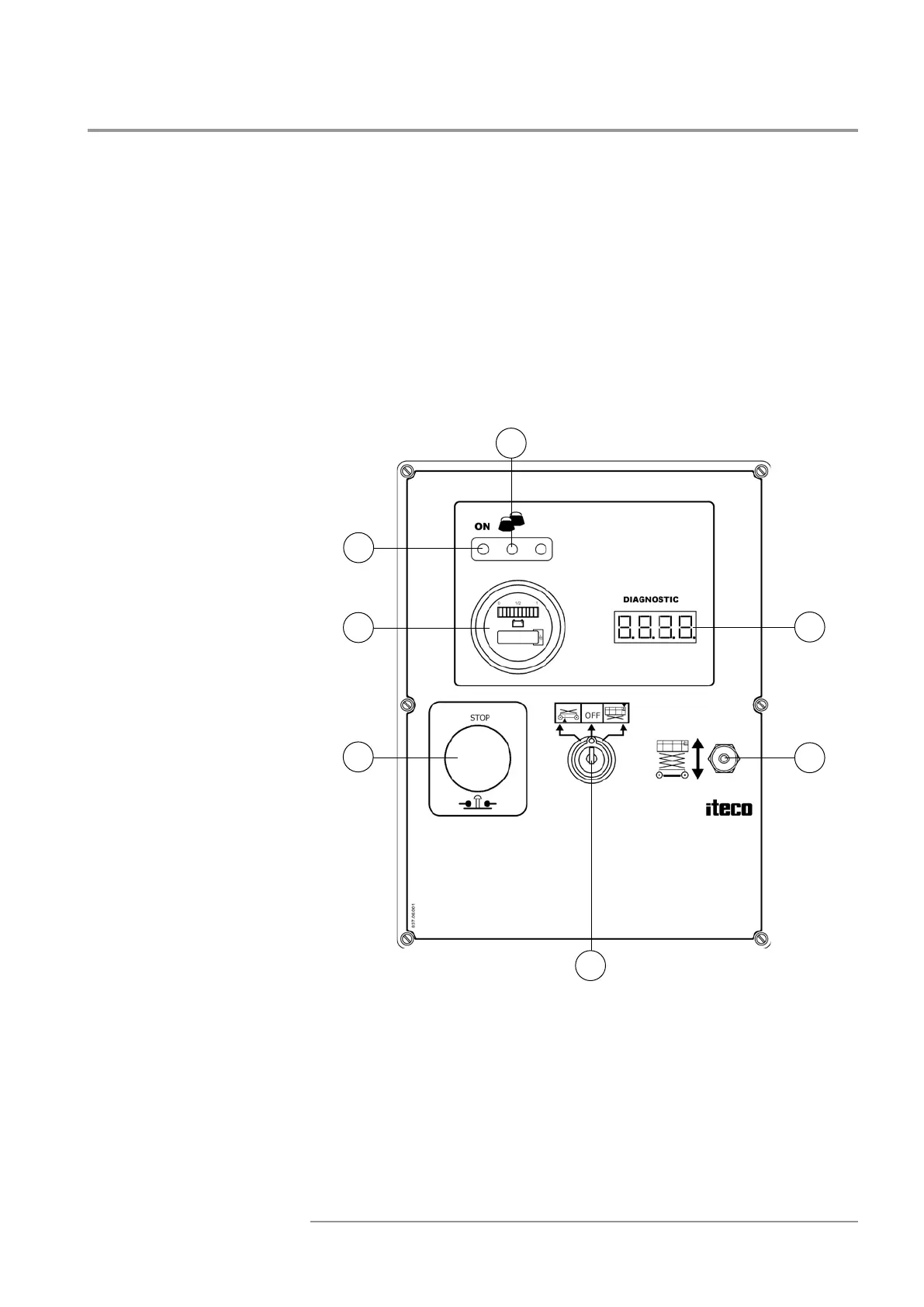

Ground control panel
1 Key selector (3 positions)
2 Red emergency stop push buon
3 Hour counter and baery check display
4 Diagnostic display
5 Platform liing/lowering selector
6 Pilot light machine ON
7 Overload pilot light
6
2
1
5
4
3
7
