DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.1 ELECTRONIC SYSTEM
5
– Printed 692.68.999 – 3 Ed. - Base 08-2020
ELECTRONIC SUB-SYSTEMS
It is strictly PROHIBITED to carry out connections to connectors other than those intended by IVECO and to
make any changes to the original electrical system.
5.1 ELECTRONIC SYSTEM
▶ It is not permitted to connect devices or electrical circuits directly to the control units. Only the
connectors listed in Chapter 5.2 may be used.

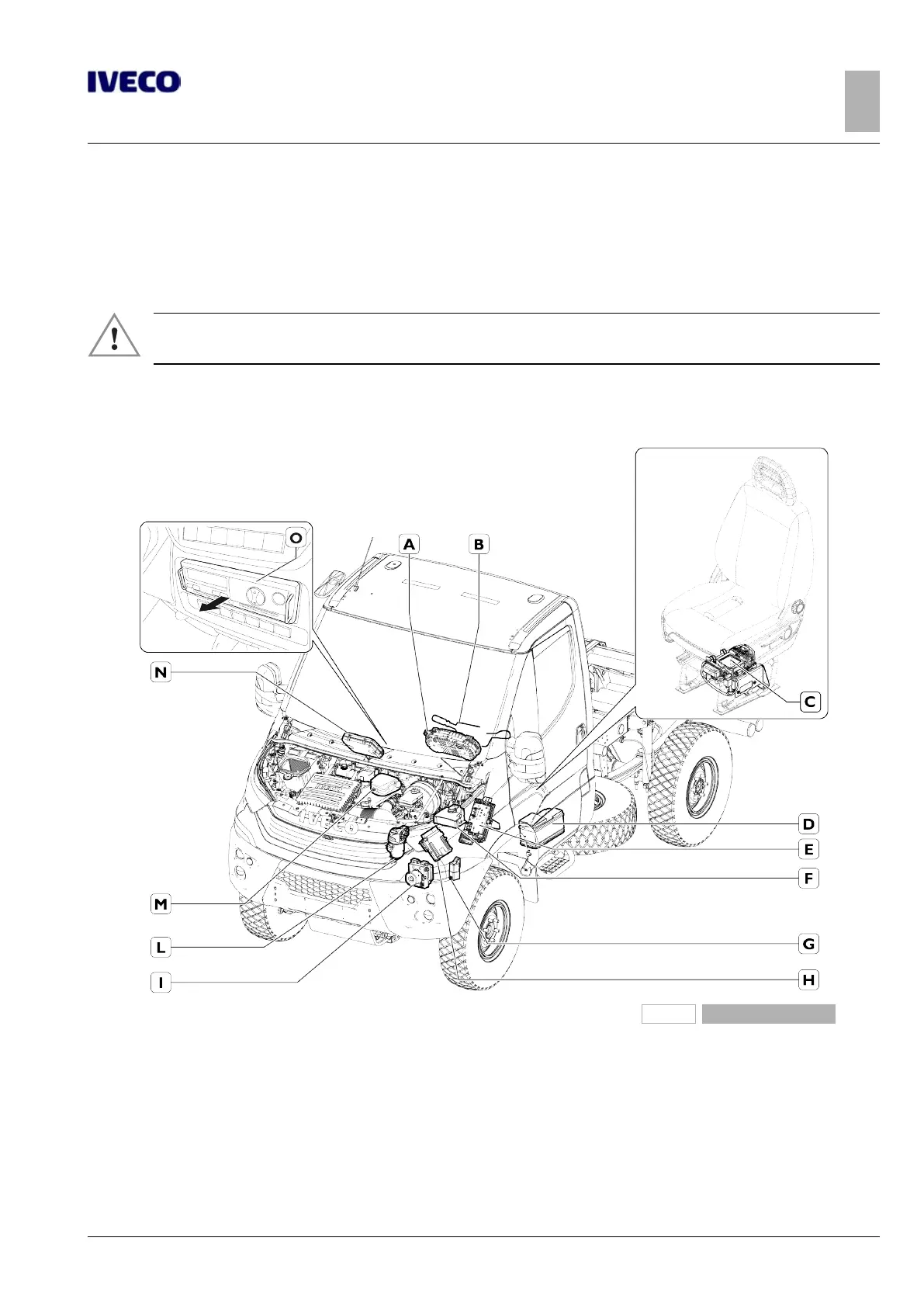

5.1.1 Location of control units
262151
Figure 1
A. Instrument panel
B. Steering wheel column and ignition switch
C. BDV control unit
D. CBA1 control unit on battery
E. Body Computer
F. CBA2 control unit in the engine compartment
G. Control unit for glow plug pre-heating
H. Engine Management control unit
I. ABS/ESP control unit
L. Green filter
M. Interconnection control unit (engine) SCM
N. Expansion Module
O. DTCO tachograph
