DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.7 CURRENT DRAWS
35
– Printed 692.68.999 – 3 Ed. - Base 08-2020
209810

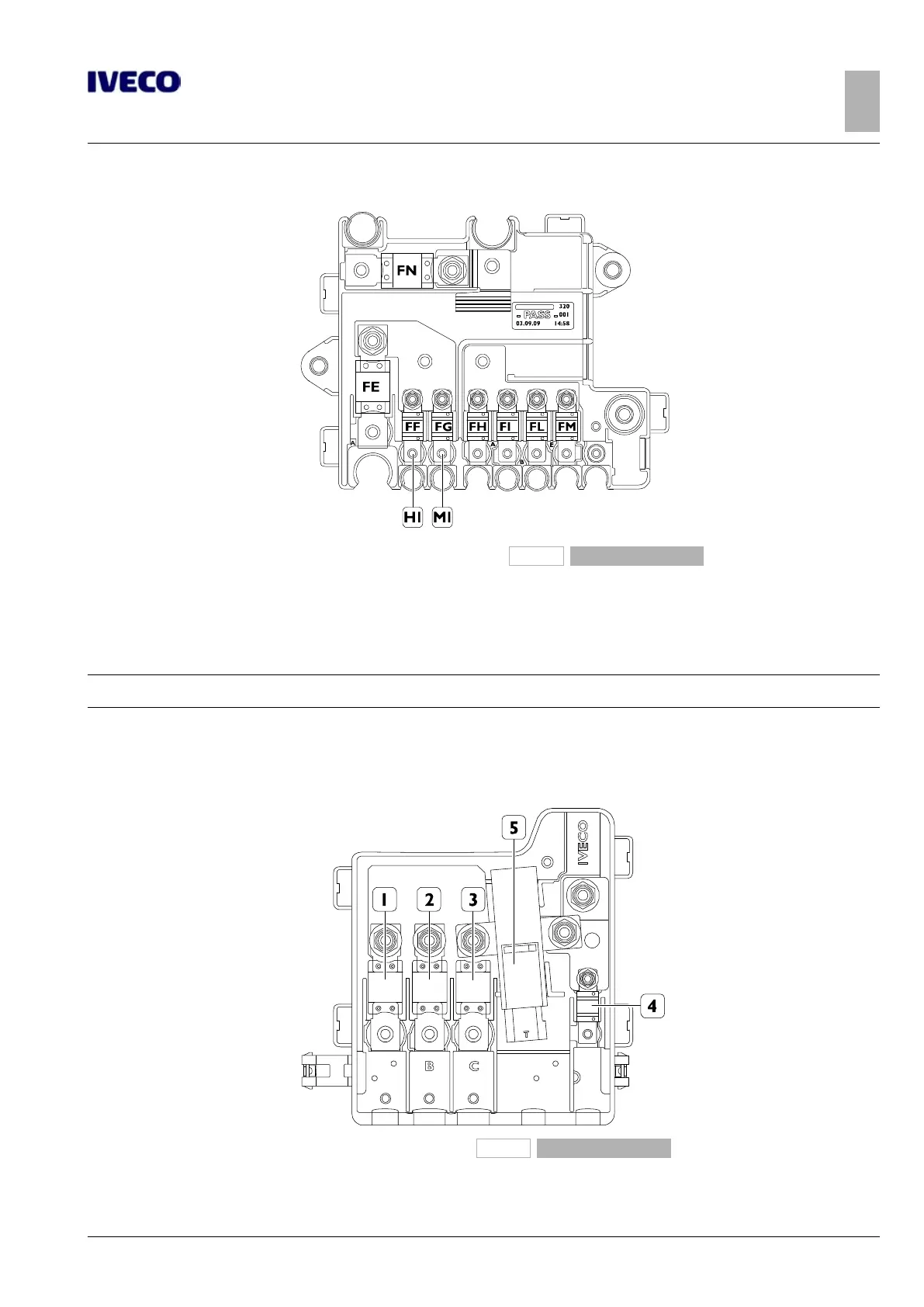

Figure 35
HI. Current take off point protected by fuse FF MI. Current take off point protected by fuse FG
Fuses FF and FG have a flow rate of 30 A each. If necessary, they can be replaced with ones of a higher capacity respecting the
indication of a maximum total current draw (sum of the two fuses) equal to 130 A
Note
Each connection on the CBA2 must strictly maintain the integrity and correct positioning of the protective cover.
Fuses
a) Fuses on the CBA1 control unit
208221
Figure 36
