12
DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
GENERAL INFORMATION
1.15 DIMENSIONS AND GROUND
– Printed 692.68.999 – 3 Ed. - Base 08-2020
1.15.3 Rearview mirrors
Depending on the width of the version, the rear visibility angles imposed by the Regulations can be respected choosing the most
appropriate of the three rear-view mirrors with two arms of varying widths available in the catalogue (opt. 8644, 78318).
1.15.4 Determination of the centre of gravity of the superstructure and the payload
To determine the position of the centre of gravity of the superstructure and of the payload, proceed according to the following
examples.
The specific technical documentation for each model (chassis cab version diagram) illustrates the positions allowed with the
standard version vehicle. The masses and the positioning of the individual components of the vehicle are shown on the chassis and
weight allocation diagram.

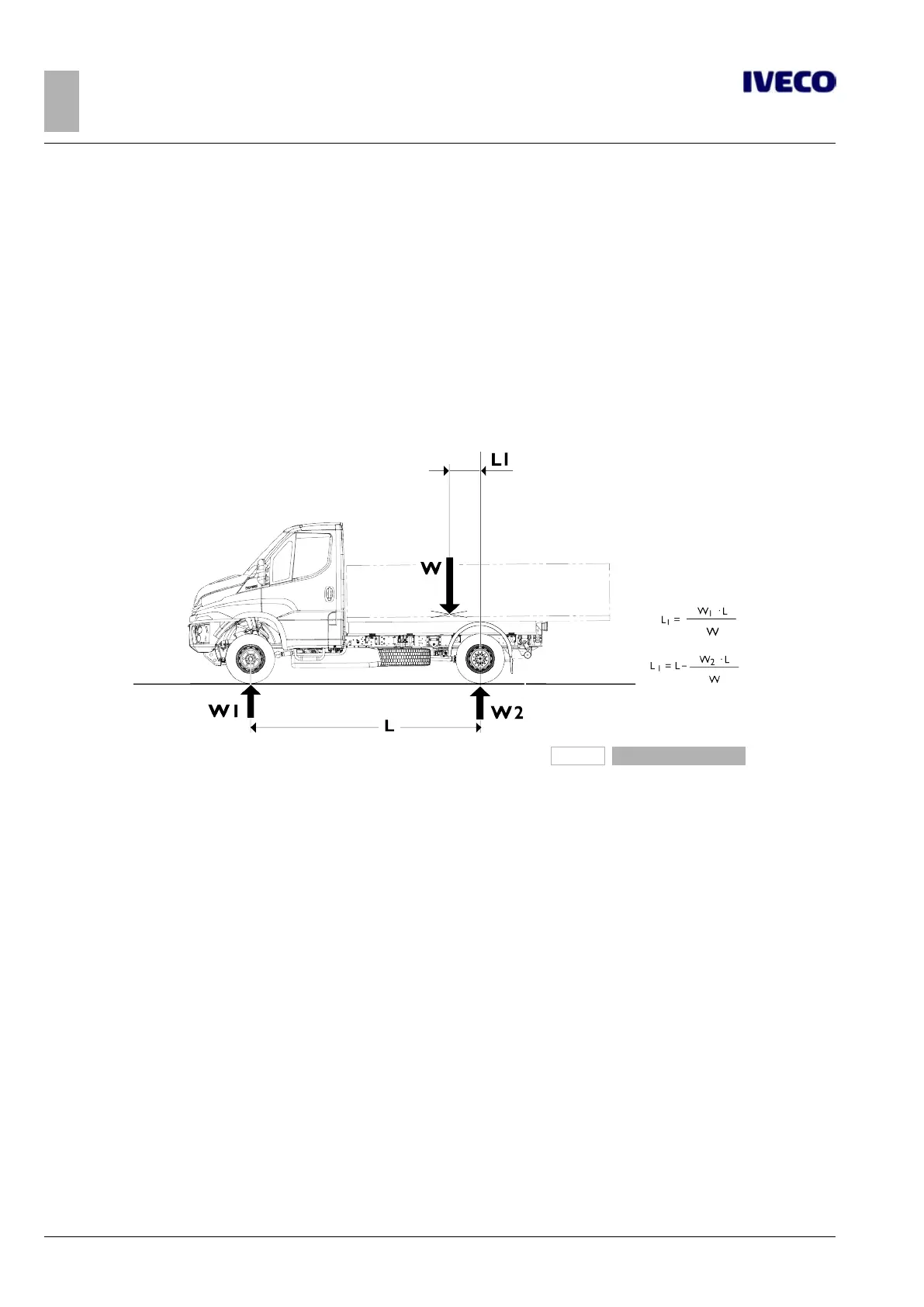

261809
Figure 3
W = Payload plus superstructure
W1 = Measurement of payload on front axle
W2 = Measurement of payload on rear axle
L1 = Distance of centre of gravity from centre line of rear axle
L = Actual wheelbase
For the purposes of payload distribution on the axles, it is assumed that this is evenly distributed, except in cases in which the shape
of the load surface results in a different load distribution.
For equipment, the centre of gravity is obvious considered for its actual position.
In the realisation of the superstructure or containers, automatic loading and unloading of the goods transported must be provided
to avoid excessive variations of the distribution and/or excessive loads on the axles, providing information for users if necessary.
The bodybuilder should also provide a suitable anchoring systems for the load on the superstructure, so that transport can occur in
maximum security.
