DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
GENERAL INFORMATION
1.15 DIMENSIONS AND GROUND
13
– Printed 692.68.999 – 3 Ed. - Base 08-2020
261810

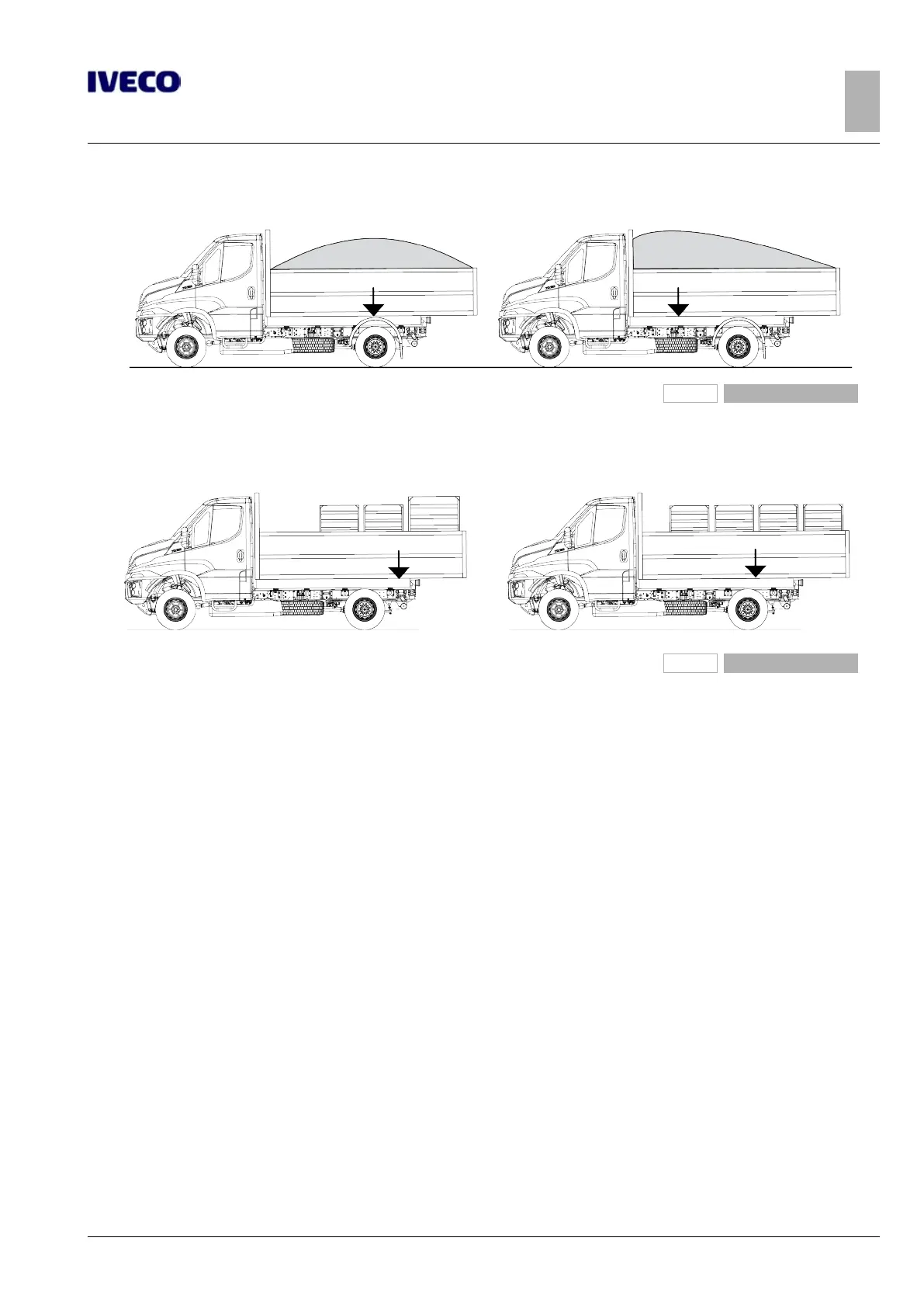

Figure 4
Even distribution of load Uneven distribution of load
261811
Figure 5
Even distribution of load Uneven distribution of load (attention to loads on axles
and minimum ratio)
1.15.5 Height of centre of gravity
For the chassis cab version and no-load vehicle, the value of the height of the centre of gravity is shown on the specific technical
documentation for each model (chassis cab version diagram).
For the vehicle complete with super structure and full load, this height must comply with the maximum values allowed by national
or international standards, in particular, Directives ECE 13 on longitudinal stability and ECE 111 on lateral stability while driving.
The following cases should be distinguished:
a) fixed loads,
b) mobile loads,
c) loads that result in increased aerodynamic actions.
