DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.7 CURRENT DRAWS
– Printed 692.68.999 – 3 Ed. - Base 08-2020
5.7 CURRENT DRAWS
In general it is advisable to:
● use suitable protection fuses in the vicinity near the current draw;
● protect cables inserted into designated sheathing or corrugated cables, installing according to the indications provided in
Chapter 5.4 ( ➠ Page 17) - Paragraph: "Precautions for interventions on the system".
262157

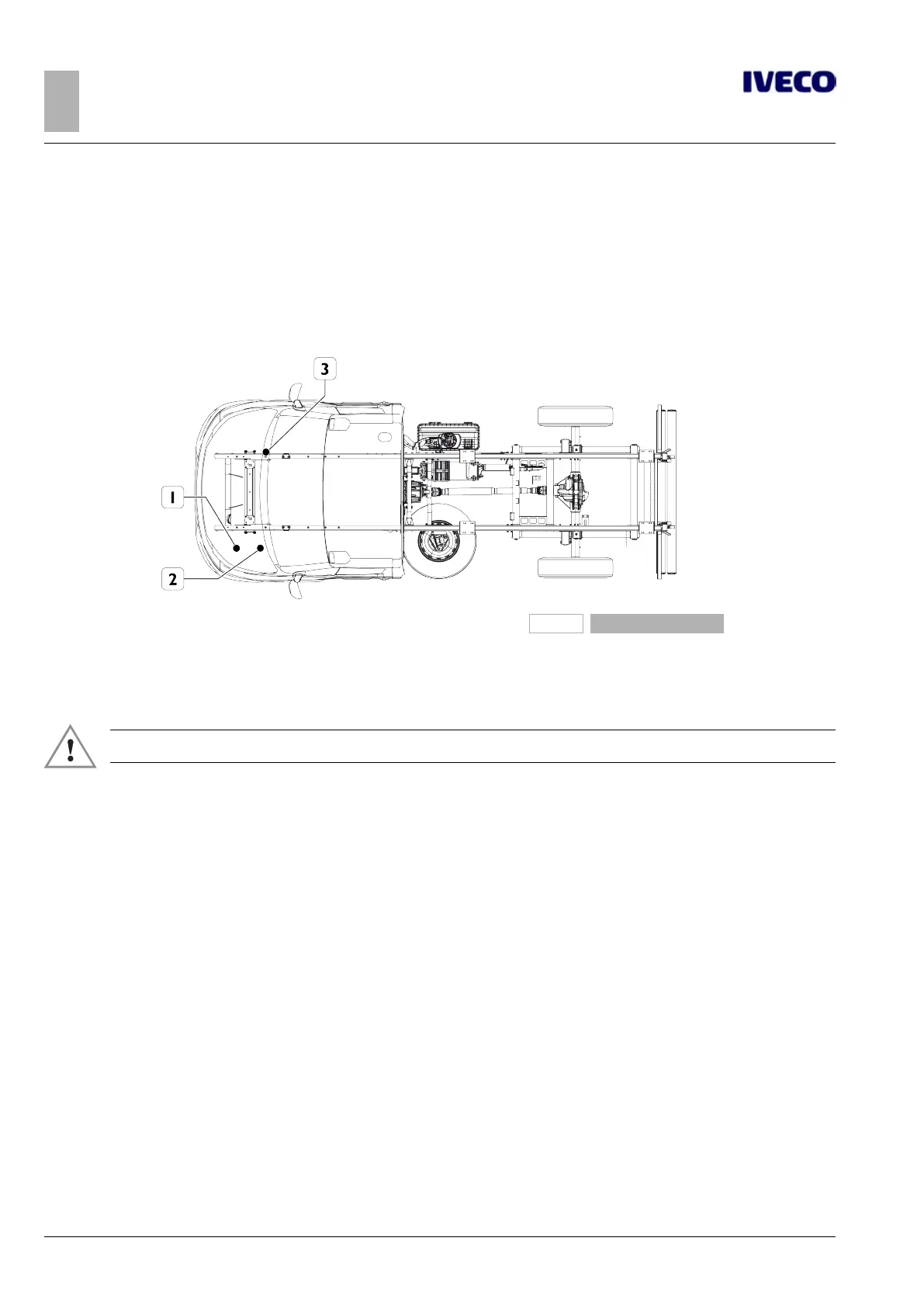

Figure 34
1. CBA2
2. Cable path between cab and engine compartment (see
Figure 38)
3. Bodybuilders connector (inside cab)
▶ It is absolutely forbidden to draw current from unauthorised points. FIRE HAZARD.
5.7.1 Current draw from the CBA2 control unit in the engine compartment
Inside the CBA2 there are two fuses (FF and FG) reserved for the bodybuilders; terminals (HI and MI) downstream of these fuses
are the only authorised points for current draw (see Figure 35) is requested.
