DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.8 MISCELLANEOUS
45
– Printed 692.68.999 – 3 Ed. - Base 08-2020
Table 5.16 - Connector for reverse gear signal
Pin Description
Cable
code
Max. current [mA]
Connected
to
Remarks
1 Reverse 1614 500 - 1000
(1)
BDV 1-G4
The signal comes from the control unit in cab
+12 V = reverse gear engaged
no signal = reverse gear not engaged
Add a protection diode
2
3 Ground 0000 100 Ground for reverse gear
5.8.6 Antitheft system
In combination with the central locking, the vehicle can be equipped with an alarm system controlled by the Body Computer and a
peripheral system.
This system consists of:
● a key with remote control, buttons for distance locking/unlocking;
● actuators for closing the cab doors and sliding side doors in the case of a van;
● open door sensors and engine bonnet opening perimeter sensor (Figure 47 left);
● alarm siren (12 V) (Figure 47 right).
The antitheft current absorption is 30-40 mA.
The bodybuilder must provide a "closed door" signal so that the antitheft system can also detect engine bonnet break-ins.
208227

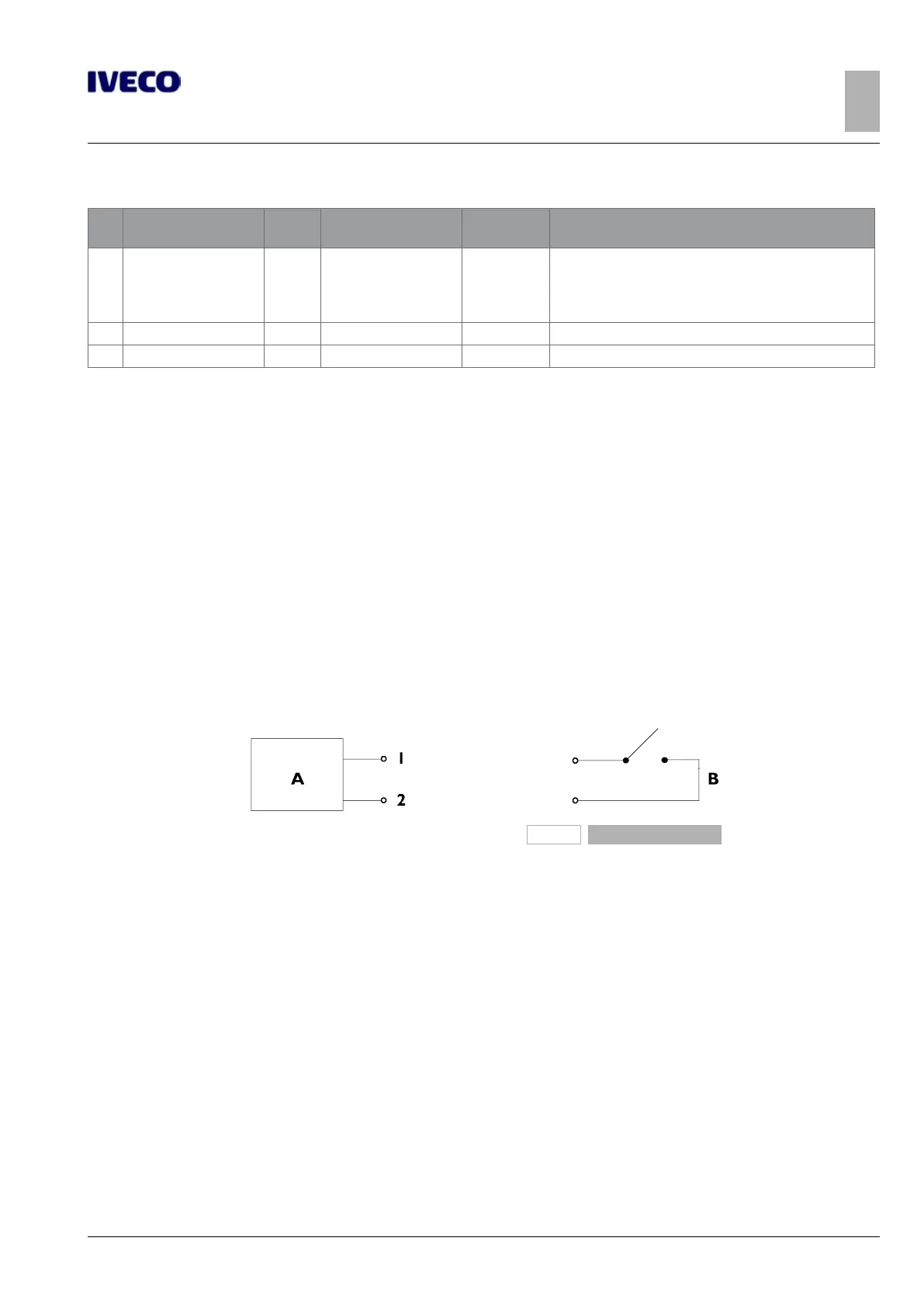

Figure 46
A. Engine bonnet socket
B. Body builder button switch
1. Pin 1: door closed signal
2. Pin 2: door closed signal
(2)
Only for versions with stripped chassis cowl, cowl, stripped chassis cowl for camper with opt 5865
Open circuit
→
when the door is closed
Closed circuit
→
when the door is open
