DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
GENERAL INFORMATION
1.17 GENERAL REGULATION FOR THE PREVENTION OF FIRE RISK
17
– Printed 692.68.999 – 3 Ed. - Base 08-2020
1.17 GENERAL REGULATION FOR THE PREVENTION OF FIRE RISK
▶ Assemblies or parts made using flammable material must never be fitted near the vehicle's ex-
haust system.
Synthetic materials must not be exposed to temperatures exceeding 70 °C; adequate protections must be implemented if higher
temperatures are expected (isolating shielding).
The factory mounted fuel tank is made from materials belonging to this class and therefore pay careful attention if fitting in a posi-
tion other than the original position.

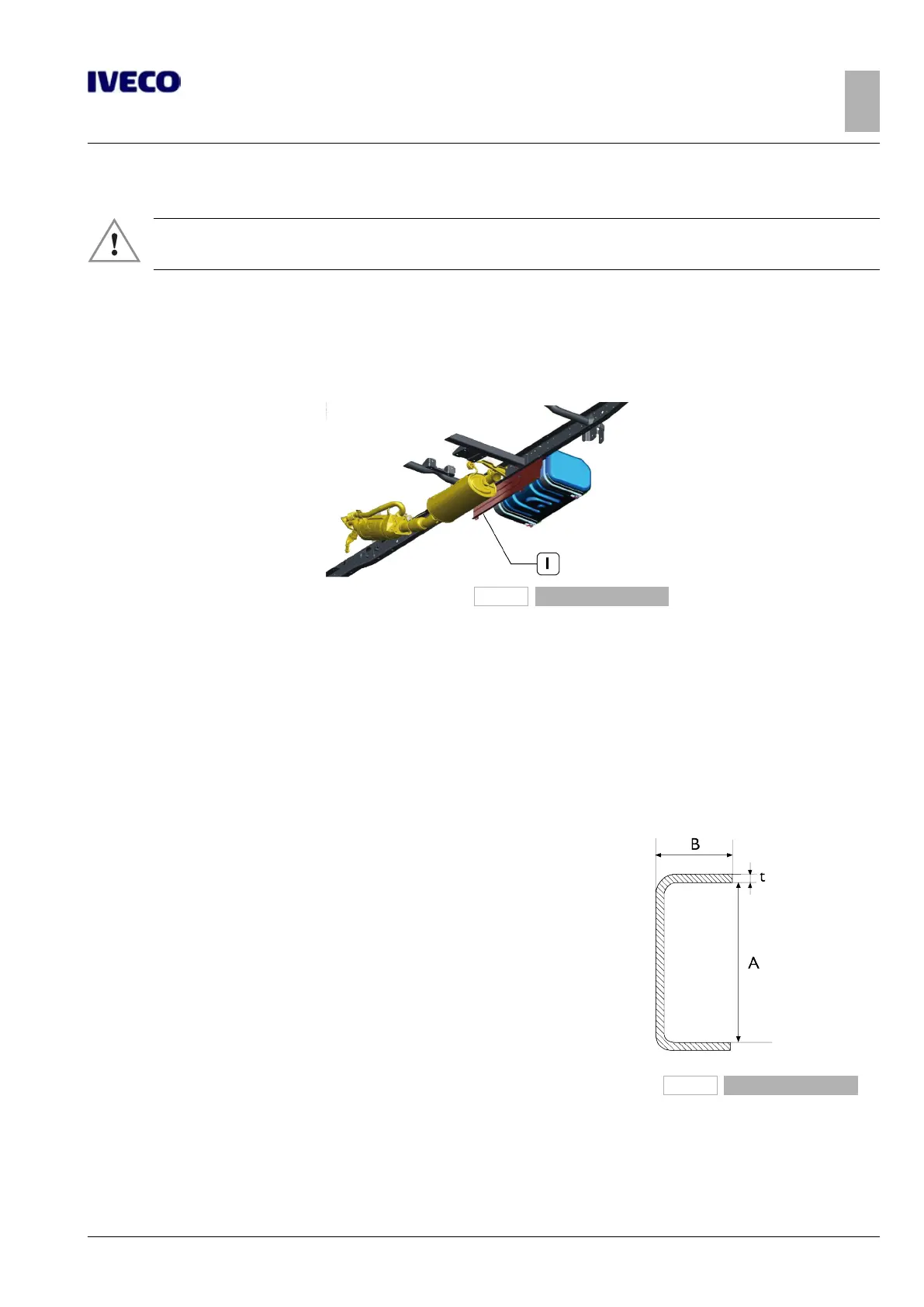

257753
Figure 7
1 Isolating shielding
Particular attention must be paid to prevent the spillage of hydraulic fluids or inflammable liquids above components which may
become hot or overheated.
Therefore, when pipes must be inevitably installed near the engine, exhaust system, catalytic converter or turbocharger, suitable
insulating shields or protective plates must be provided.
1.18 CONVENTIONS
91473
Figure 8
The following conventions are adopted in these Guidelines:
● Wheelbase: distance between the centre lines of the steering
axle and the rear axle.
● Rear overhang: Distance between the centre line of the rear
axle and the rear end of the chassis side members.
● Dimensions A, B and t of the chassis section: see the picture
on the side.
