DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
Hi-MATIC AUTOMATIC GEARBOX
C.3 REQUIREMENTS
– Printed 692.68.999 – 3 Ed. - Base 08-2020
C.3 REQUIREMENTS
C.3.1 Gearbox release lever
210249

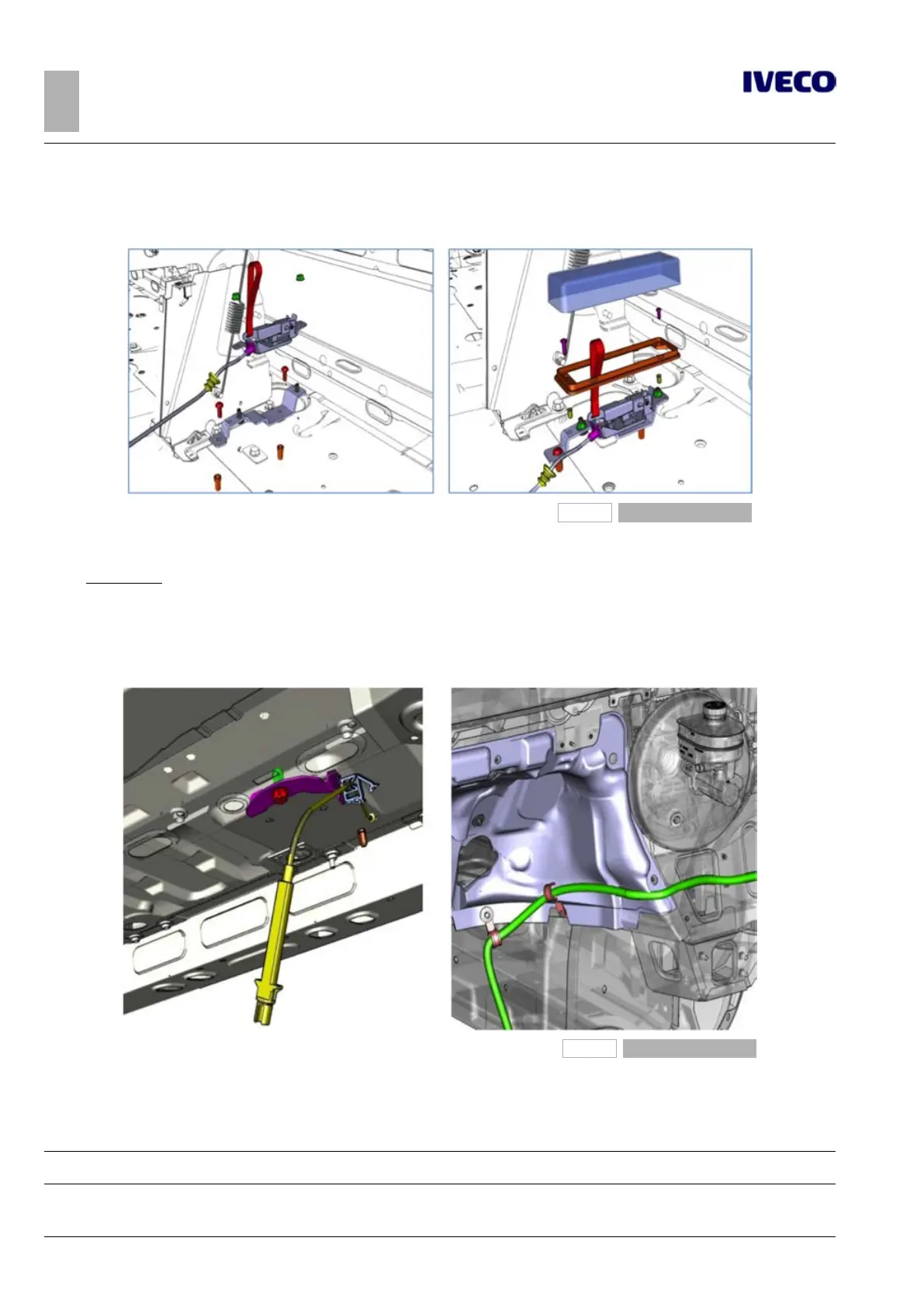

Figure 2
The lever can be positioned in a different location that its original mounting position, as long as:
● it compulsorily remains inside the cab;
● is accessible from the drivers' seat;
● does not entail great variation of the connected Bowden cable route.
C.3.2 Bowden cable
210250
Figure 3
In order to maintain efficiency (performance) of the release system, the length of the Bowden cable must remain the same despite
any new anchoring points and new layout.
Furthermore the Bowden cable must never be bent to an angle below 150°.
Note
The warranty shall be voided if using different cable lengths or types.
