6
DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.2 BODYBUILDER CONNECTORS
– Printed 692.68.999 – 3 Ed. - Base 08-2020
5.2 BODYBUILDER CONNECTORS
Note
Given the multiplicity of vehicular variants and of associated wiring, the present chapter only provides information concerning the
basic version of the electrical system; please contact the IVECO Assistance Service should you require more specific information.
The vehicle's electrical system contains specific connectors for connecting the bodybuilder installations; access to these allows the
system's functional integrity and validity of the warranty to be preserved.
As standard there is a connector 72105A, interfaced with the dashboard cable of the cab and accessible after having removed the
panel of the passenger side storage compartment (see Figure 2).
▶ Any taking of signals from the vehicle to the outfitting must be performed using suitable diodes,
relays and bridles. It is strictly prohibited to make a direct connection to connector 72105A, un-
der penalty of immediate revocation of the warranty.

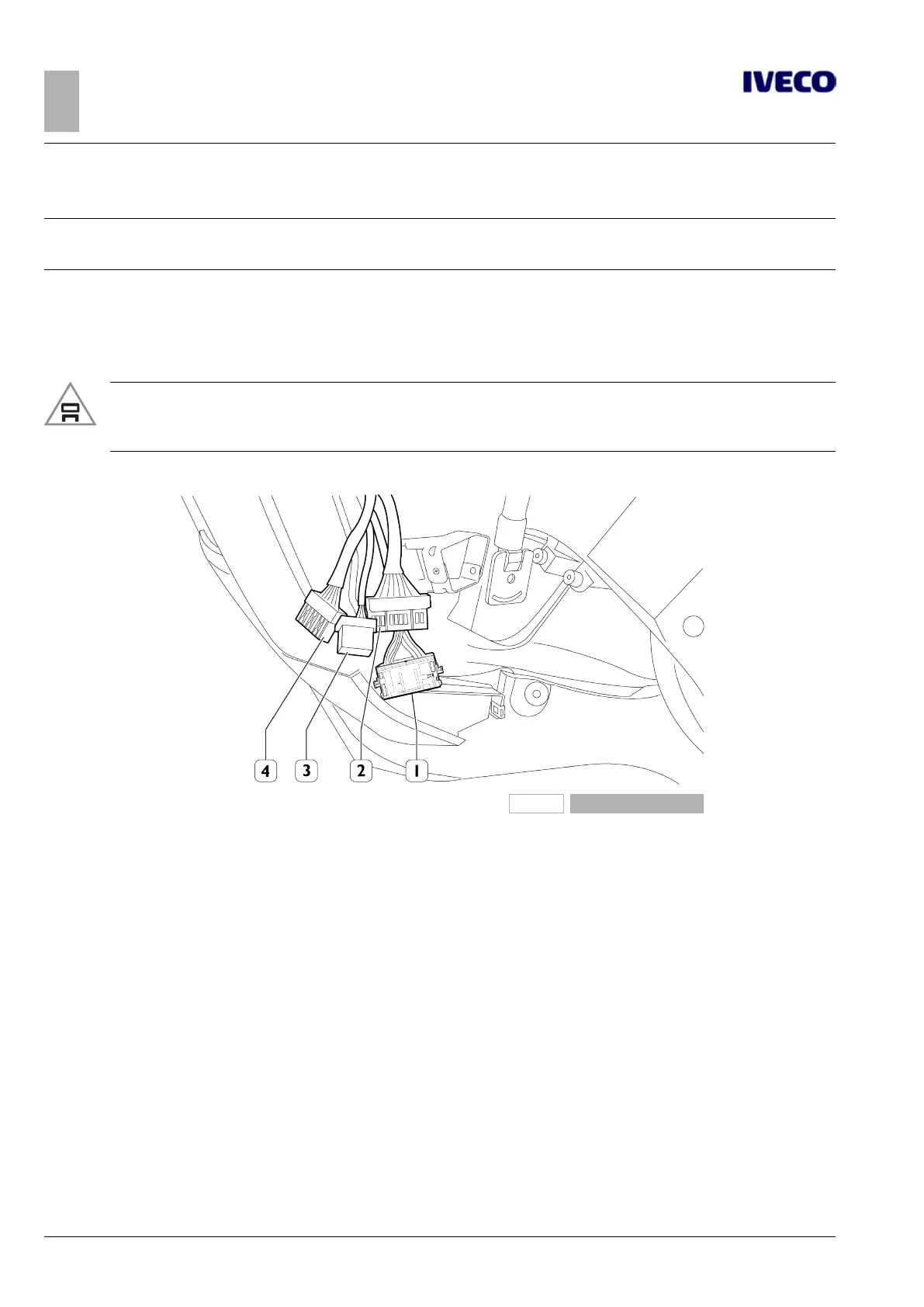

262153
Figure 2
1. Bodybuilder connector 72105A
2. Connector EM 61071B
3. Connector EM 72071
4. Connector EM 72075B
For the Expansion Module, the electrical system in the cab is also equipped with connectors 61071B, 72071, 72075B.
The description of the functions of these connectors can be found in Chapter 7.3 ( ➠ Page 5).
