DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
APPLICATIONS OF SUPERSTRUCTURES
3.5 TRACTOR FOR SEMI-TRAILER
– Printed 692.68.999 – 3 Ed. - Base 08-2020
228303

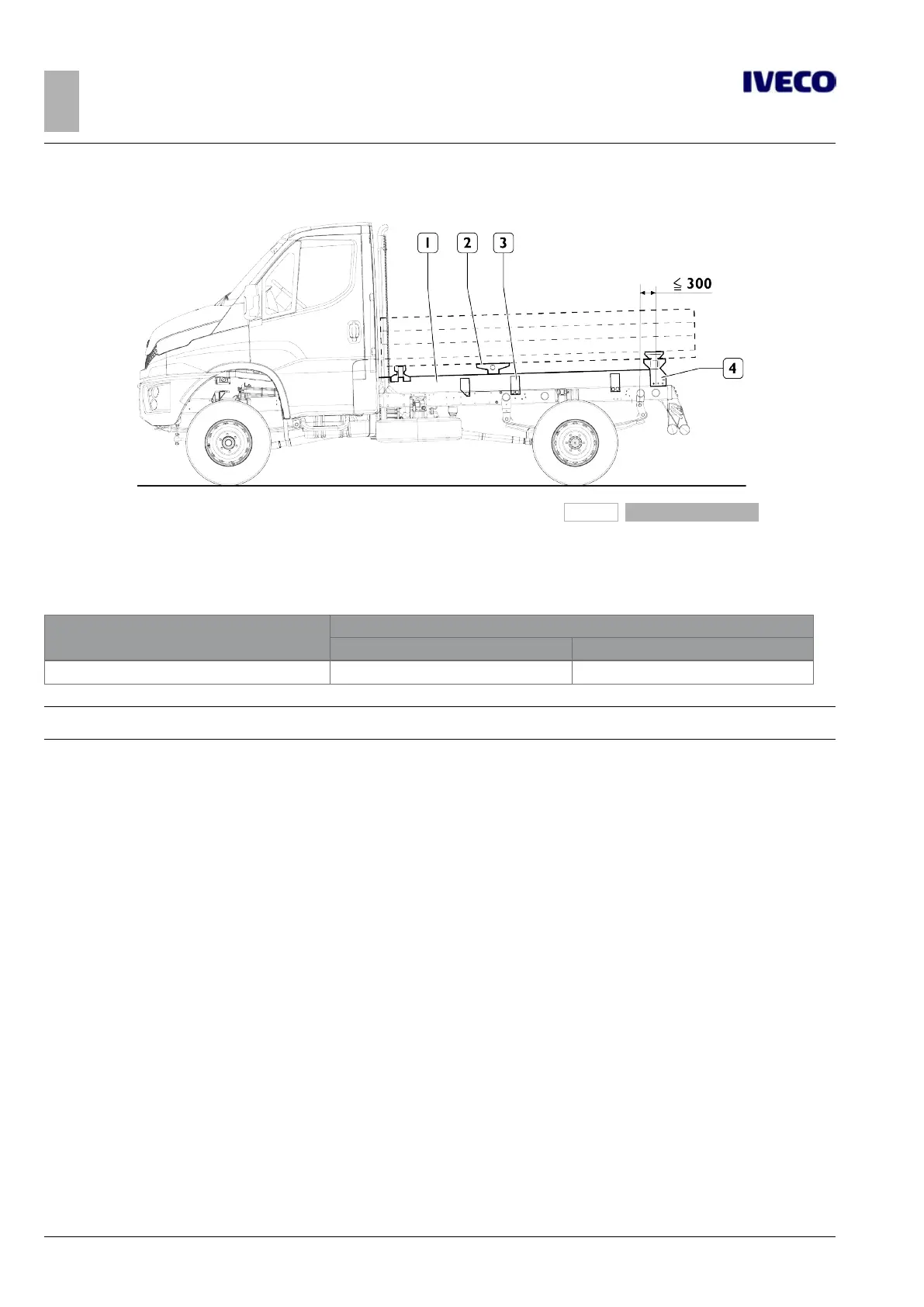

Figure 11
1. Subframe
2. Brackets
3. Plates
4. Retainer with hinge
Table 3.4
Models
Minimum reinforcing profile
Section modulus W
X
[cm
3
] Dimensions [mm]
All 36 100x60x6
Note
For the dimensions of the subframe sections see Table 3.2.
3.5 TRACTOR FOR SEMI-TRAILER
Not provided.
3.6 TRANSPORT OF INSEPARABLE MATERIALS (TRAILER TRUCKS)
Not provided.
