36
DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.7 CURRENT DRAWS
– Printed 692.68.999 – 3 Ed. - Base 08-2020
Table 5.10 - List of fuses on CBA1
Location Amperage [A] Description
1 150 Power supply CBA2
2 200 Power supply SCM and bodybuilders
3 500 Starter and Retarder
4 80 Body Computer power supply
5 TGC (opt)

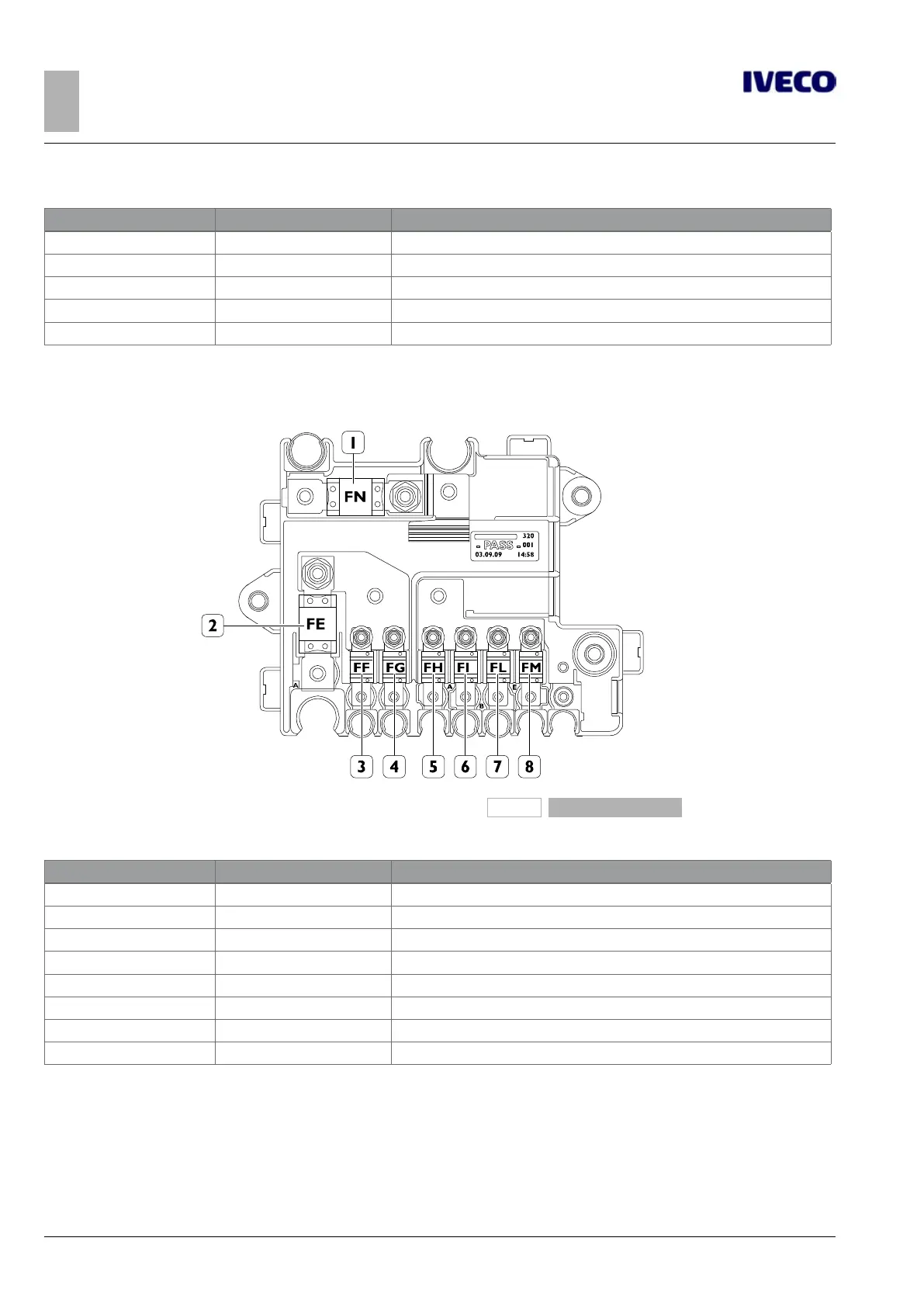

b) Fuses on the CBA2 control unit
209812
Figure 37
Table 5.11 - List of fuses on CBA2
Location Amperage [A] Description
1 150 Second battery (military vehicles)
2 150 SCM Power supply
3 30 Bodybuilders pre-installation
4 30 Bodybuilders pre-installation
5 60 Pre- / post- heating unit
6 90 - 30 Spare
7 100 PTC power supply
8 90 - 40 Spare
