DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.8 MISCELLANEOUS
43
– Printed 692.68.999 – 3 Ed. - Base 08-2020
228308

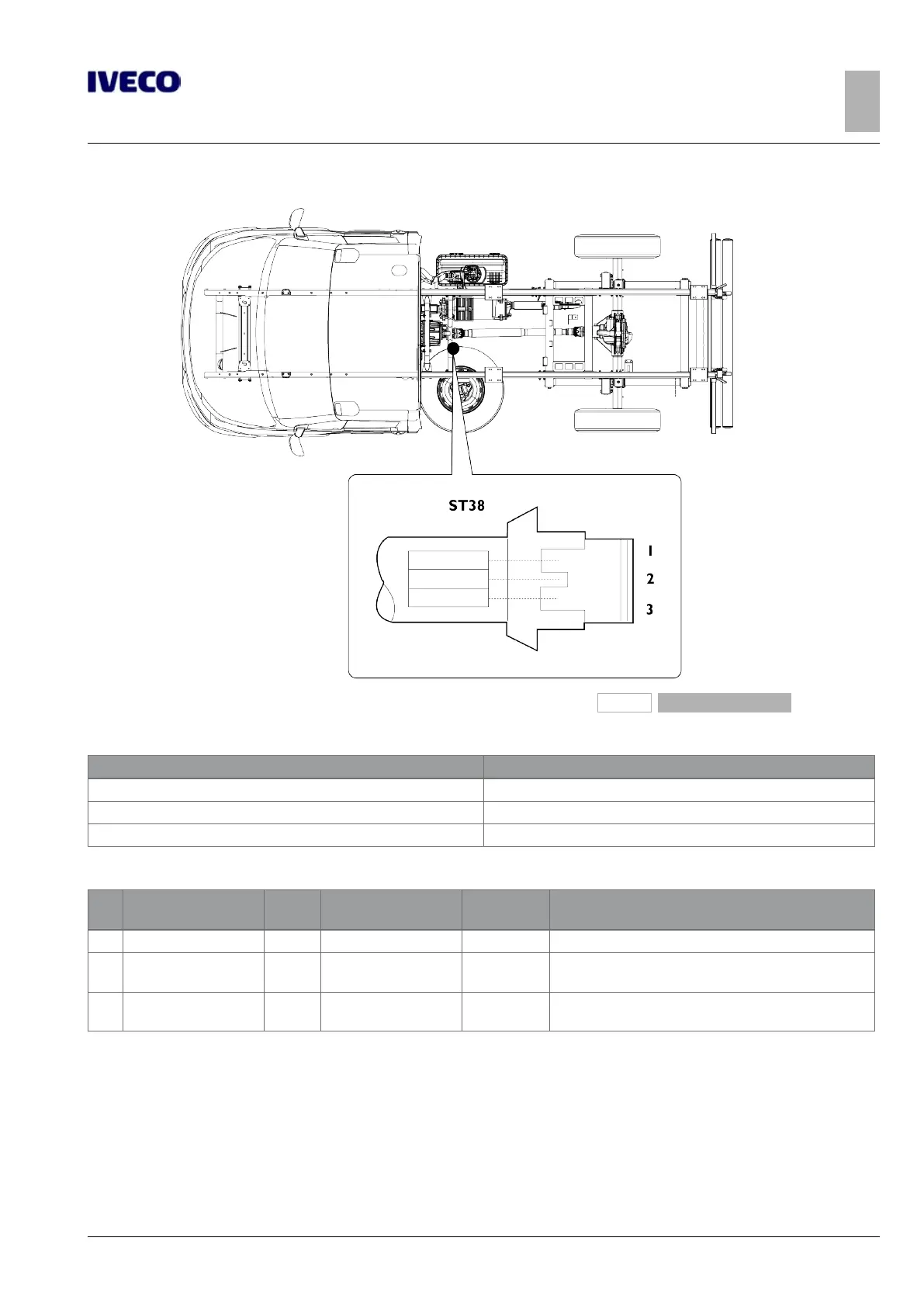

Figure 44
Table 5.14
Code Description
98435331 EZ 3-way male connector
98457375 EZ Male contact for 0.35 to 0.5 mm² cable
98455370 EZ Male contact for cable with cross-section 0.5 to 1.5 mm²
Table 5.15 - Connector ST38 for Side Marker Lamps
Pin Description
Cable
code
Max. current [A]
Connected
to
Remarks
1 Ground 0000 2.5 ST43/1 Ground for left and right side clearance lights
2
Vehicle left side clearance
lights
3390 1.25 ST43/2
+12 V = vehicle left side clearance lights on
no signal = vehicle left side clearance lights off
3
Vehicle right side
clearance lights
3390 1.25 ST43/2
+12 V = vehicle right side clearance lights on
no signal = vehicle right side clearance lights off
The side markers are mandatory for vehicles with a total length exceeding 6 m.
Installation of side markers requires the intervention of the IVECO Service Network in order to enable the Body Computer.
