DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
CHASSIS INTERVENTIONS
2.6 INSTALLING THE TOW HOOK
21
– Printed 692.68.999 – 3 Ed. - Base 08-2020
196787

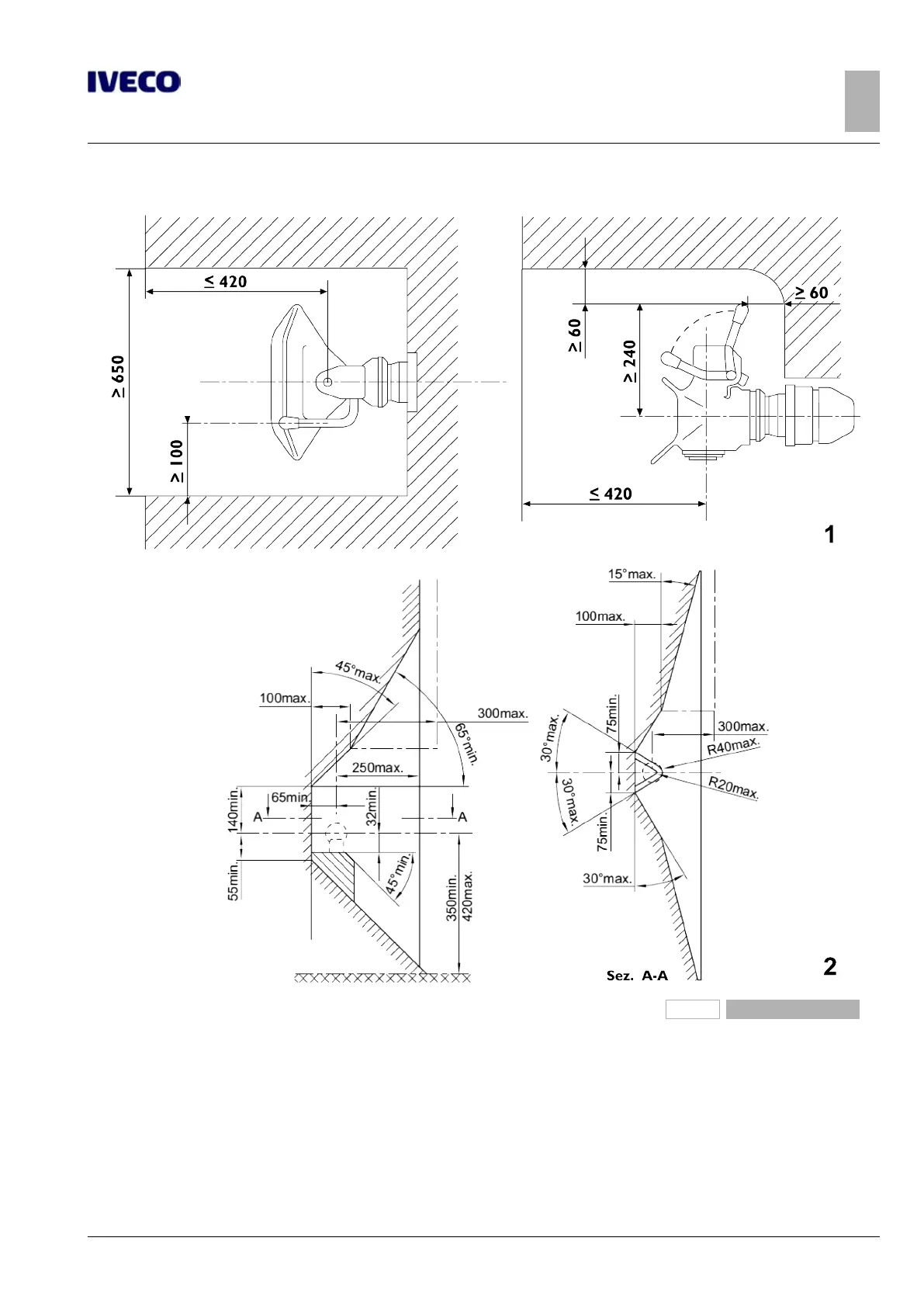

Figure 10
1. Free field for towing hooks 2. Free field for coupling hooks according to standard DIN
74058 ESC-152
In cases where the connection flange of the drawbar coupling does not have holes suitable to those on the existing rear crossbar of
the vehicle, the latter may be authorised for modification upon application of adequate reinforcements.
The Body builder has the duty of realising and installing the superstructure so as to allow coupling connection and checks without
impairment or hazard of sort.
The trailer drawbar must be guaranteed freedom of movement.
