2
ORRS21L1F ORRS21L1T ORRS21L1U
2 + 1
(5)
3
4 + 1
(5)
ORRS42L1F ORRS42L1T ORRS42L1U
8 + 1
(5)
ORRA82L14 ORRA82L1A ORRA82L1B
16 + 1
(5)
ORRAH2L14 ORRAH2L1A ORRAH2L1B
Number of function relays
Receiver model / type of power supply
ORRD22L1C















Standard
(2)
Industrial
(2)
Industrial
with "On/Off"
button
(
3
)
Multifunctions
(3)
Multifunctions
with "On/Off"
button
(
3
)
1
ORET11SL1
2
ORET21SL1 OREi21SL1 OREi22SL1
4
ORET41SL1 OREi41SL1 OREi42SL1 OREL42SL1
6
OREL62SL1
8
OREL81SL1 OREL82SL1
12
ORELD2SL1
16
ORELH1SL1
Transmitter model
Number of function buttons

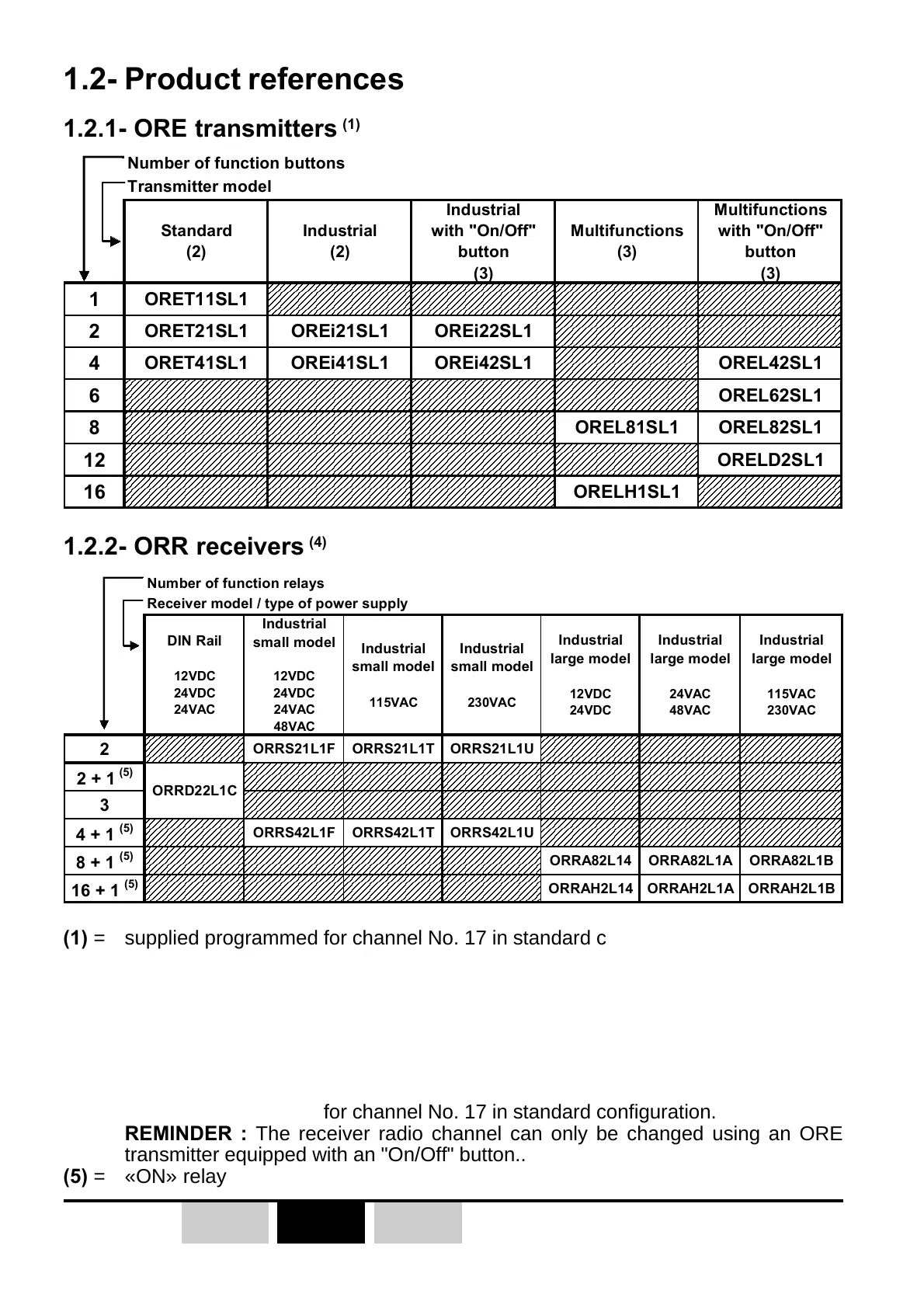

1.2- Product references
1.2.1- ORE transmitters
(1)
(1) = supplied programmed for channel No. 17 in standard configuration.
REMINDER : The transmitter radio channel can only be changed on the ORE
transmitters equipped with an "On/Off" button.
(2) = Delivered with 2 AAA batteries.
(3) = Delivered with 3 AAA batteries, can be used with 3 AAA accumulators. These
transmitters, when they are equipped with AAA accus, can be directly reloaded on
a ORCL support charger. The support charger is to be separately
commanded(ordered).
(4) = supplied programmed for channel No. 17 in standard configuration.
REMINDER : The receiver radio channel can only be changed using an ORE
transmitter equipped with an "On/Off" button..
(5) = «ON» relay
1.2.2- ORR receivers
(4)
