3.7- «Dead man» function time programming
(Automatic shutdown of transmitter)
REMARK : Only transmitters equipped with «On/Off» button allow the user
to view or to modify the duration of the «Dead man» function
temporization.
z This procedure is realized by the transmitter with buttons
B1
,
B2
and «on/off».
z The receiver does not need to be ON

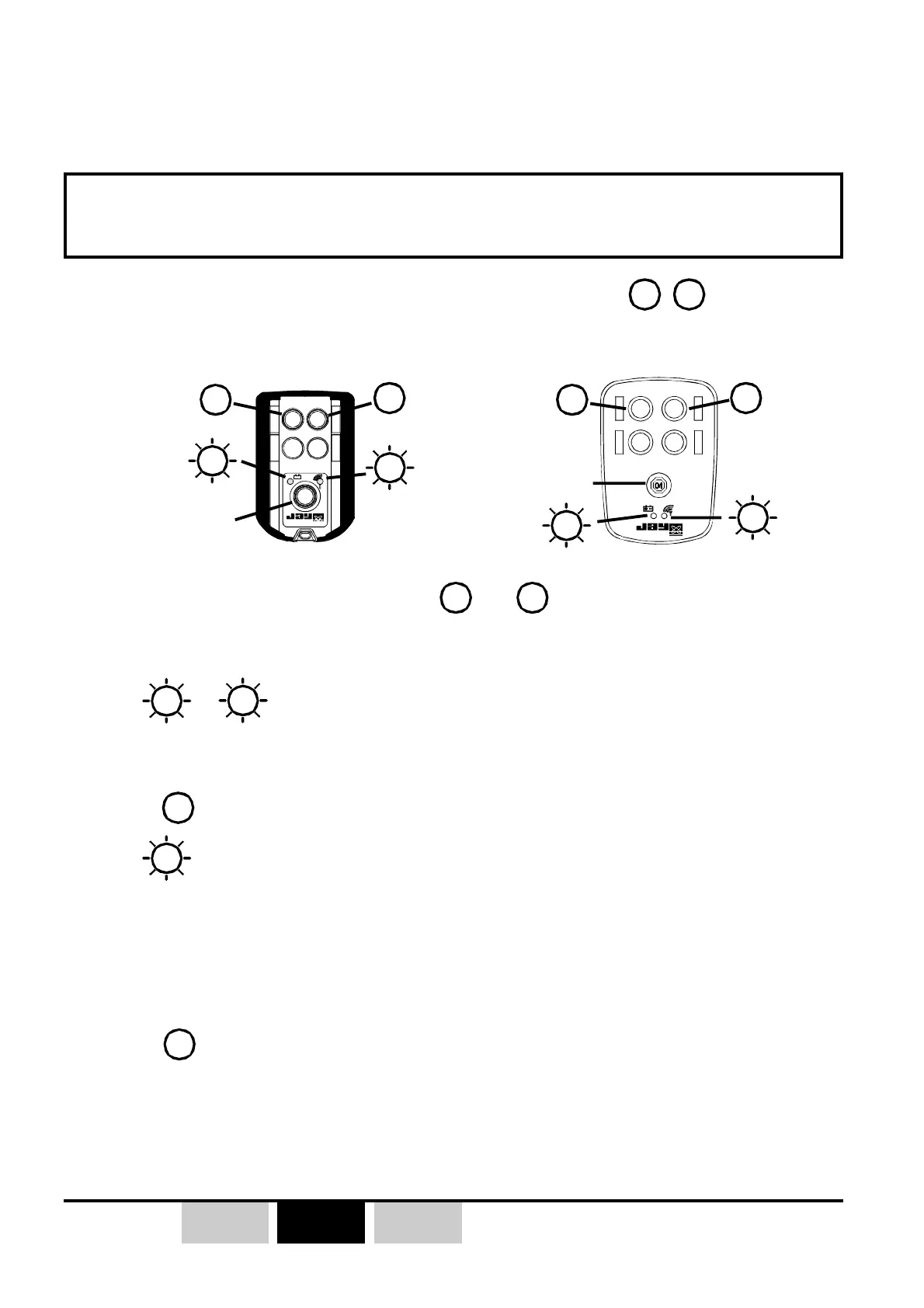

1- Simultaneously press and hold buttons
B1
and
B2
then press the «On/Off» button
on the transmitter; keep the three buttons pressed for 1 second, then release
the 3 buttons.
-
Va
et
Vb
transmitter LEDs come on steady,The transmitter is waiting for
a programming choice (this waiting time lasts 4 seconds, after, the transmitter
switches itself off).
2- Press
B2
button to enter in «Dead-Man function time» mode
-
Vb
LED indicates the current duration :
1 flash, off, 1 flash etc... = 4mn
2 flash, off, 2 flash etc... = 15mn
3 flash, off, 3 flash etc... = 60mn
4 flash, off, 4 flash etc... = infinite time (function is deactivated)
3- Press
B2
to modify the duration, each pressure on the button increments the
duration.
4- Once the desired duration is selected, press the «on/off» button to validate your
choice. The transmitter saves the changing.
B1
B2
Va
Vb
«on/off»
B1
B2
Va
Vb
«on/off»
