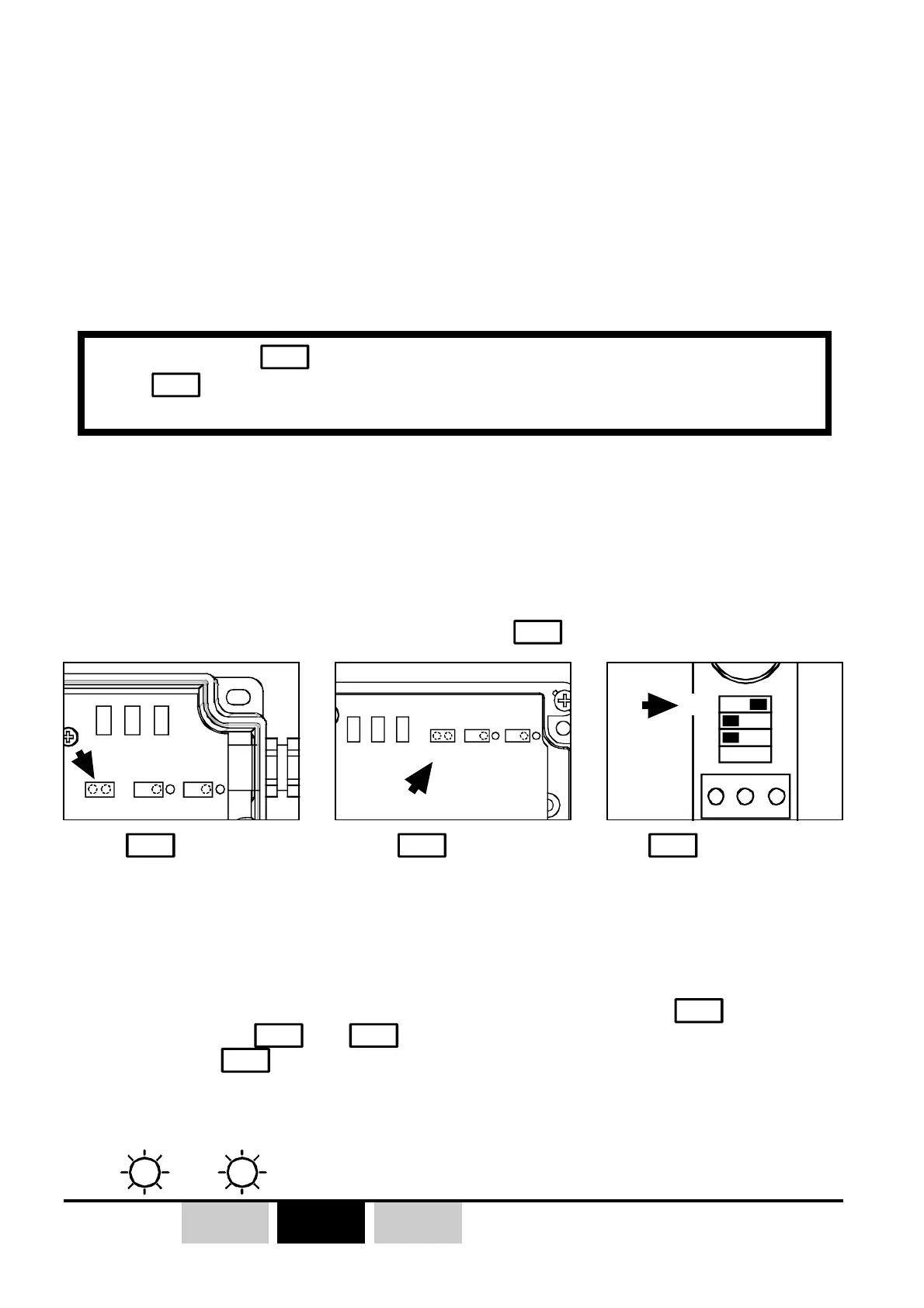

3.5- Programming of conflicting command
interlocking
This procedure allows to forbid conflicting actions activated by the simultaneous
pressure of two transmitter function buttons.
Relays concerned by the interlocking will be deactivated (OFF state) if an interlocking
is detected.
Requirements :
This programming procedure uses the receiver
JP1
jumper/microswitch.
))
))
)
z A transmitter / receiver association must have been realized.
z This procedure requires transmitter and receiver.
Every time
JP1
jumper (ORRS and ORRA) is put in short circuit, or
JP1
microswitch (ORRD) is set on «ON» position, previously
programmed interlockings are erased.
JP1
jumper
ORRS receiver
JP1
jumper
ORRA receiver
JP1
microswitch
ORRD receiver
1- Switch off industrial receiver (ORRA or ORRS), the receiver on DIN rail
(ORRD) can remain power supplied during all the procedure.
2- For the ORRS and ORRA industrial receivers, place jumper
JP1
in the short-
circuit position (
JP2
and
JP3
not short-circuited ), for the ORRD receiver, set
microswitch
JP1
to the «ON» position.
3- "Industrial" type receivers (ORRA and ORRS): switch ON receivers.
4- -
V2
and
V3
LEDs blink 2 times then go off.
