Jay electronique ORRD22L1C - ORCL• Charger Support

Gb Fr
324501D revision07 - 45 -
De

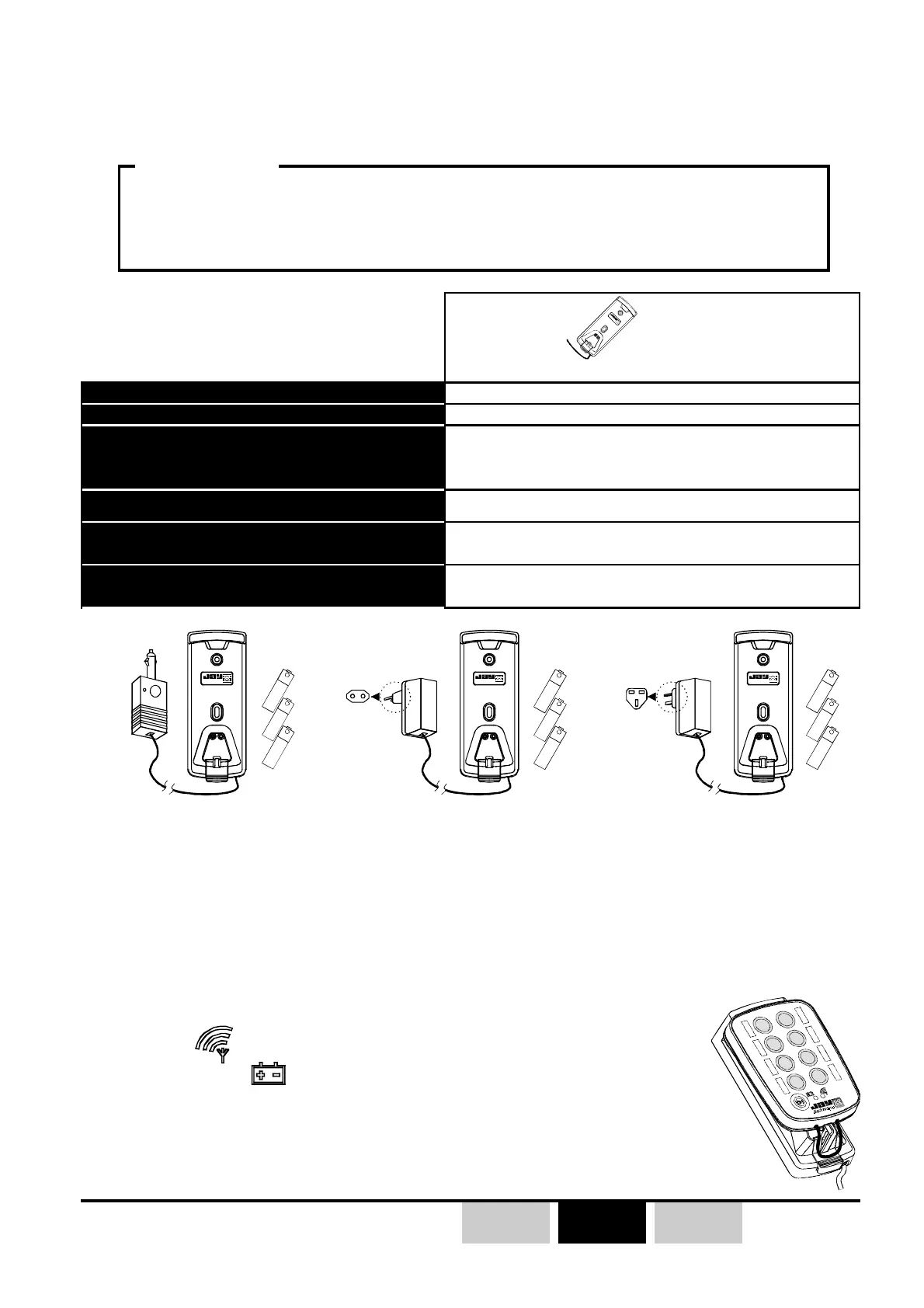

Charger support
(
ORCL•
)
Material, housing color and tightness
ABS, Yellow, IP20
Wei
g
ht
400 g
Power supply
Vehicle plu
g
12 to 24 VDC
"European" or "English" plug type 230 VAC
Output voltage and current
9 VDC, 300mA
Temperature ranges
Storage : -30°C to +70°C
Charging : 0°C to +40°C
Length of cable between voltage adapter and
charger support
1,70 m approximately
éle ct ronique éle ct ronique
éle ct ronique
+
+
+
+
+
+
+
+
+
2.2- Charger supports (for
ORELOREL
ORELOREL
OREL Multifunction
transmitters with accumulators)
élec tron iq ue
To recharge the Multifunction transmitter with accumulators :
1. Switch off the transmitter (red and green indicator lights are OFF) (push on «On/
Off» button if present).
2. Place the transmitter on the charger support.
During the charging operation, the green indicator light on the
transmitter (
) comes on steady and the red indicator light shows
the charge level (
) :
Red indicator light flashing : fast charge
Red indicator light on steady : slow or up-keep charge (transmitter
accumulator charge level is > or = 60%)
DO NOT PUT IN CHARGE BATTERIES.
ONLY ACCUMULATORS CAN BE RELOADED.
IMPORTANT
ORCL1 , vehicle plug
(12 - 24VDC / 9VDC)
delivered with 3 accus.
ORCLU , european plug
(230VAC / 9VDC)
delivered with 3 accus
ORCLW , english plug
(230VAC / 9VDC)
delivered with 3 accus
