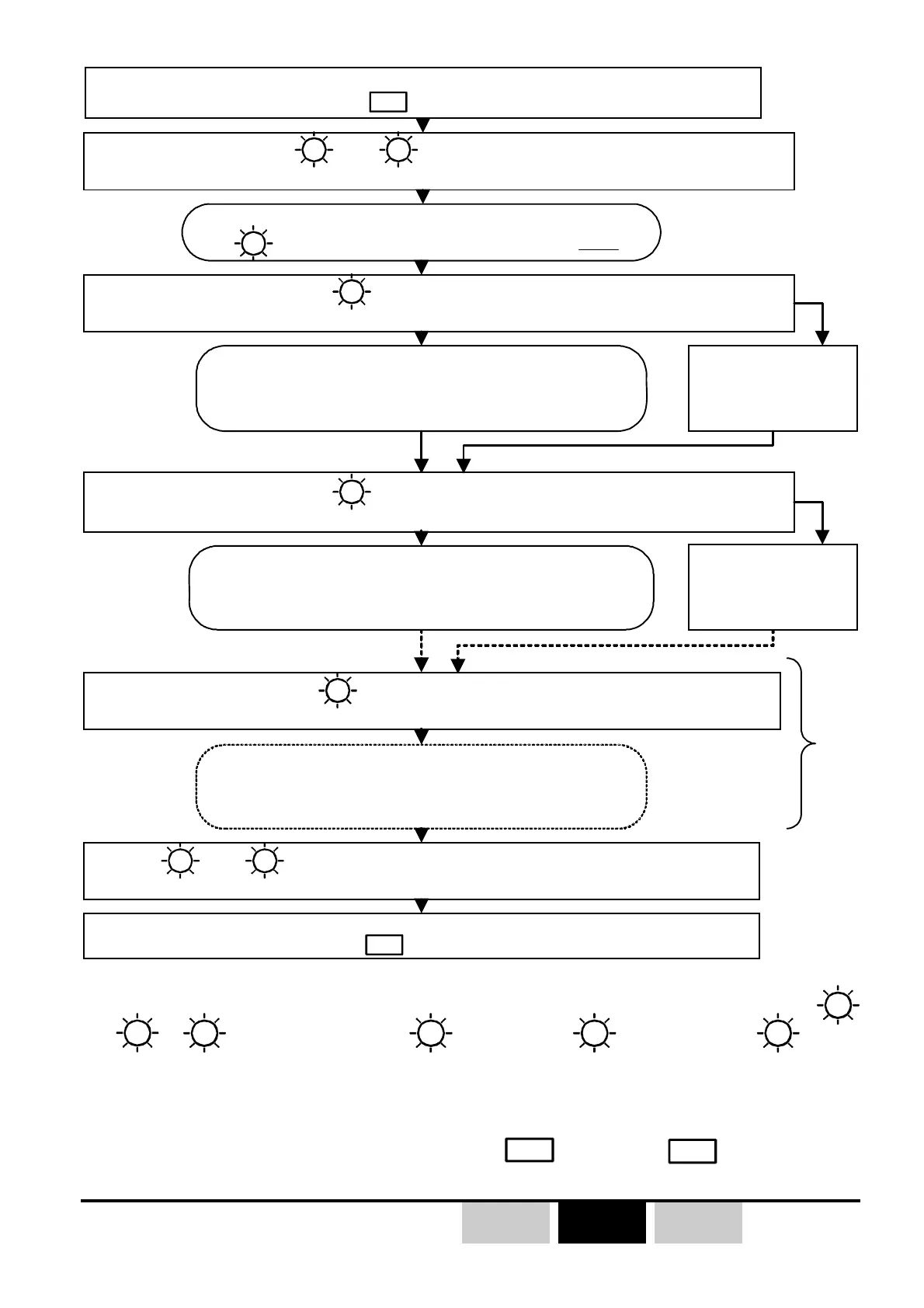

- Press on transmitter button n° Y (i.e) within 6,5 seconds
- The receiver records the assignment : " button n° Y +
identity code (xxxxxxxx) " / relay n° X
and are ON steady
The receiver is waiting for an order from the transmitter to start the buttons / relay assignment
- Press on and release any transmitter function button
-
goes OFF
, the programming procedure starts
blinks 1 time
the receiver is waiting for a "button number and identity code" to "assign" them to its relay n°1
- Press on transmitter button n°1 (i.e) within 6,5 seconds
- The receiver records the assignment : " button n°1 + identity
code (xxxxxxxx) " / relay n°1
and blink in a alternative way then go OFF
The last relay of the receiver has been assigned, the procedure is ended.
blinks 2 times
the receiver is waiting for a "button number and identity code" to "assign" them to its relay n°2
if no button is
pressed within 6,5s,
the receiver selects
the relay n°2
- Press on transmitter button n°2 (i.e) within 6,5 seconds
- The receiver records the assignment : " button n°2 + identity
code (xxxxxxxx) " / relay n°2
if no button is
pressed within 6,5s,
the receiver selects
the relay n° X
blinks
X
times
the receiver is waiting for a "button number and identity code" to "assign" them to its relay n° X
(1)
V2
V3
V3
V2
V2
V2
V2 V3
- « Industrial » type receiver (ORRA and ORRS) : switch ON receiver
- Receiver on DIN rail (ORRD) :
place microswitch on ON position
- « Industrial » type receiver (ORRA and ORRS) : switch OFF receiver
- Receiver on DIN rail (ORRD) : place microswitch on OFF position
JP3
JP3
4- If other associations must be realized, repeat the algorithm above.
5- Once all the associations have been completed, switch off industrial receiver
(ORRA and ORRS) and remove jumper
JP3
, or set the
JP3
microswitch to
the "OFF" position (ORRD).
(1) = Special case of ORRA receiver with number «X» > 9 :
In this case, the number of the relay to be programmed is given by the flashing indicator lights
V2
and
V3
or
V2
indicates the tens, and
V3
the units (i.e. :
V2
flashes once and
V3
flashes
5 times: the receiver is on standby for a «button + identity code» assignment for its relay No. 15)
.
