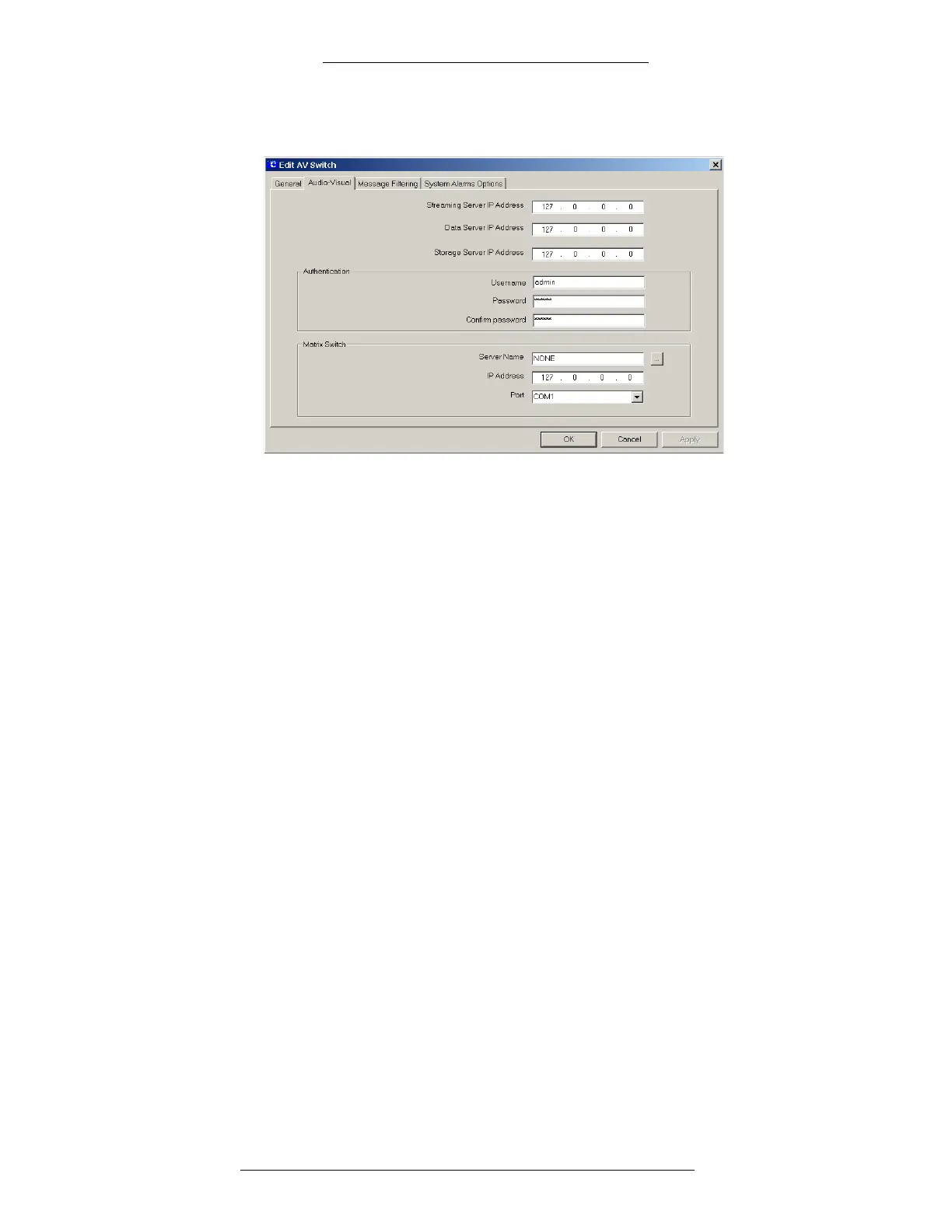

Audio-Visual Tab for Protocols Other Than SmartSight
Streaming Server IP Address – IP address of the Streaming Server (usually the IP
address of the AV Switch). The Streaming Server allows transmission and viewing
of audio and video.
Data Server IP Address –
IP address of the Data Server (usually the IP address of the
AV Switch). The Data Server is a database server that maintains all necessary
information for operating DVR functions including administration, video clip
logging, etc. In addition, it handles all video retrieval requests.
Storage Server IP Address –
IP address of Storage Server (usually the IP address of
the AV Switch). This is an archive server that typically has a number of tape
libraries.
Username
– Login user name needed to access remote DVR systems.
Password –
Login password needed to access remote DVR systems.
Confirm Password –
Re-enter login password needed to access remote DVR systems.
Server Name – Name of the server computer that is responsible for manipulating a
vi
deo matrix switch. This is the network ID computer name of the AV Switch that
communicates with the CCTV Switch.
IP Address –
IP address of the video matrix switch server. This is the IP address of
the AV Switch that communicates with the CCTV Switch.
Port –
The COM port of the AV Switch that is physically connected to the CCTV
Switch. Note that the software will check with the CCTV Server to establish
whether there is a conflict in port usage, but will not check with any other equipment
that may be running.
