Chapter 1 INSTALLATION
27

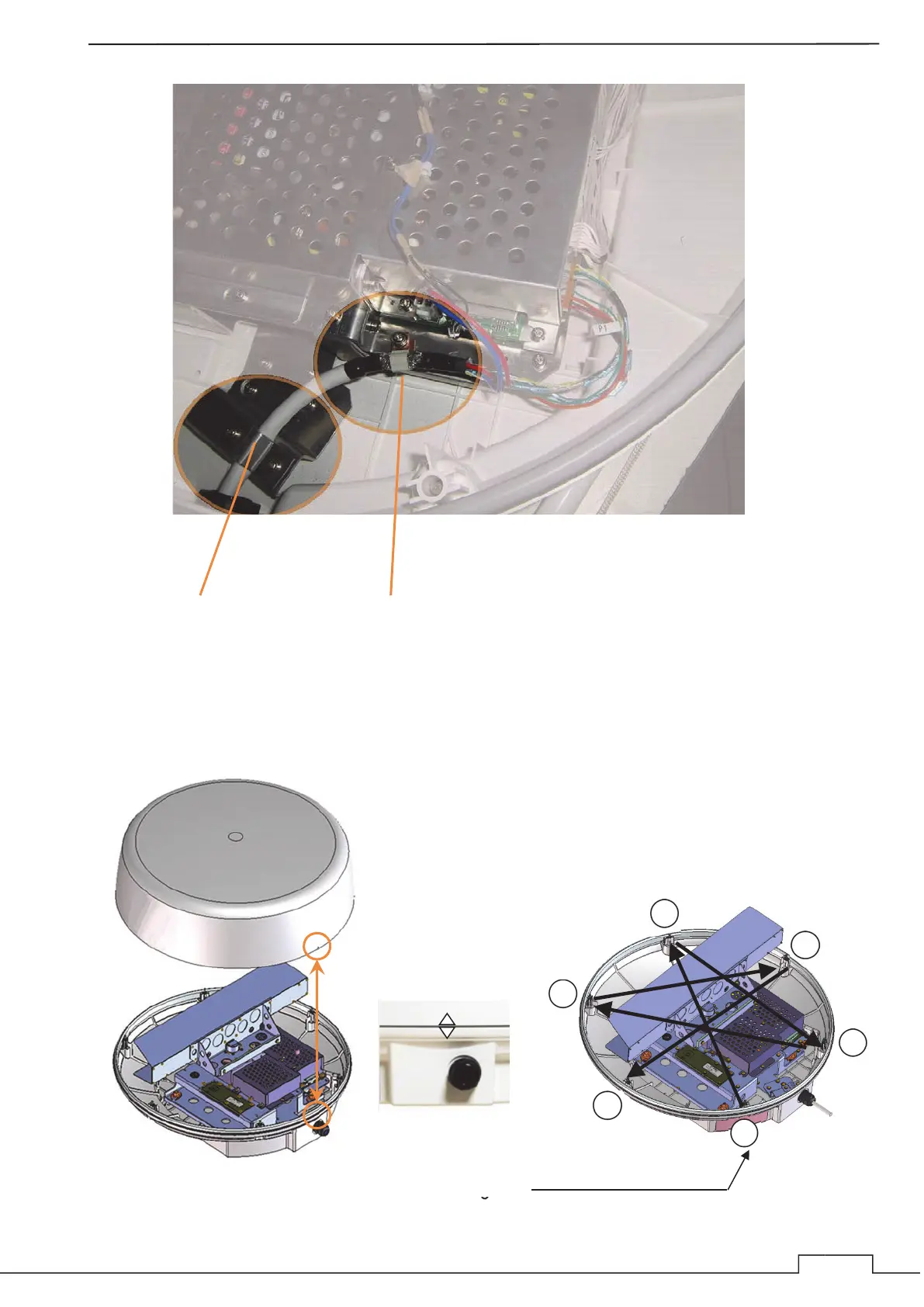

Fig. 1-4-1-4
Close radome
Attach the radome. Set to fit the triangle mark of the upper and lower radome.
Fig. 1-4-1-5
Clamp the cable Connect cable mesh wire as Ground.
Like this
In the following order, on the diagonal, tighten gradually
in order to press uniformly packing.
The proper fastening torque of the fitting bolts (M5) is
102.96 N•cm (10.5kgf•cm).
4
1
2
3
5
6
6-M5 (stainless steel) bolt
Tightening torque: 10.5 kgf/cm
