7. If the AC power source outlet has a power switch, set it to the on (|) posion.

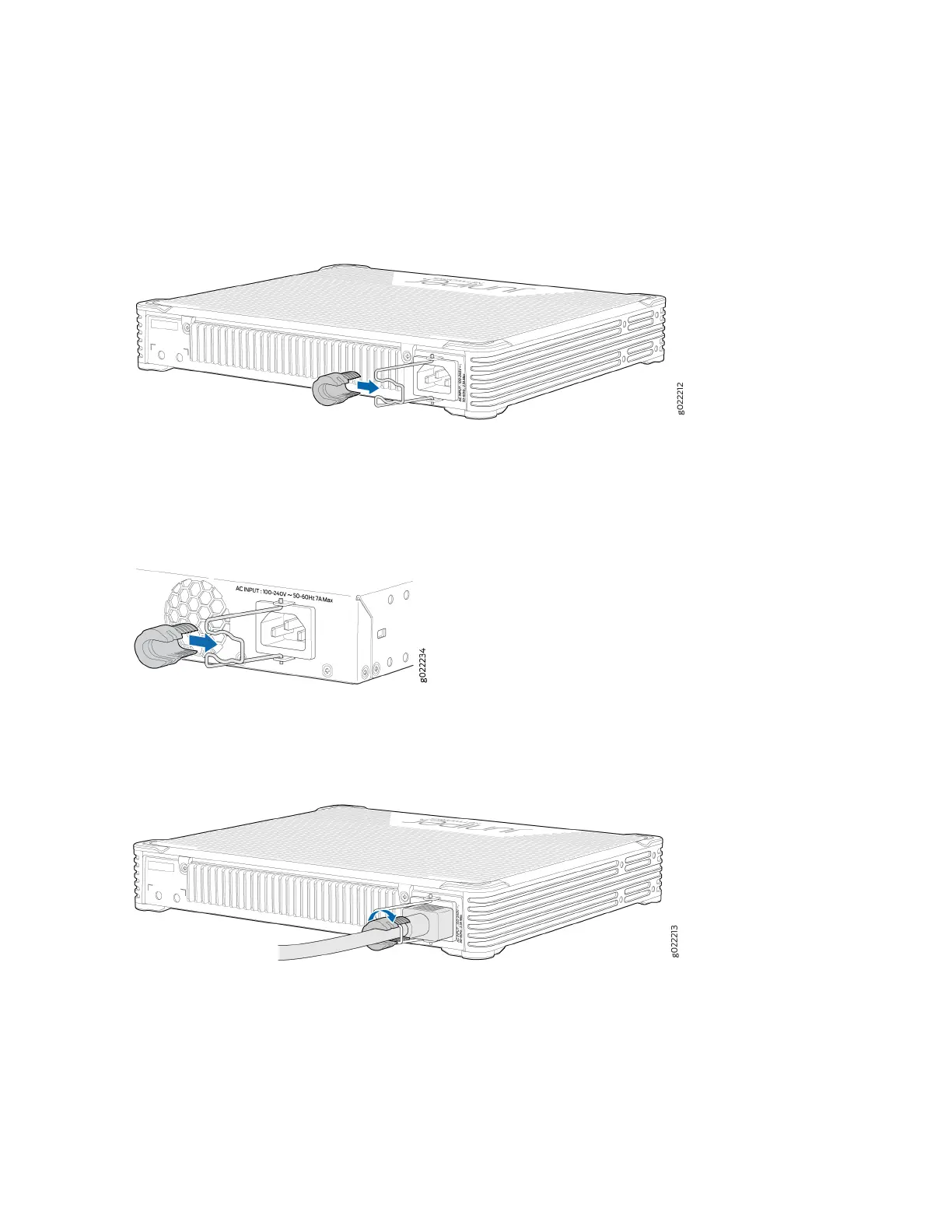

Figure 76: Connecng an AC Power Cord Retainer Clip to the AC Power Cord Inlet on EX2300-C
Switches
Figure 77: Connecng an AC Power Cord Retainer Clip to the AC Power Cord Inlet on EX2300
Switches Except the EX2300-C Switch and the EX2300-24MP and EX2300-48MP Models
Figure 78: Connecng an AC Power Cord to the AC Power Cord Inlet on EX2300-C Switches
143
