Airow Direcon in EX2300-24MP Switch Model

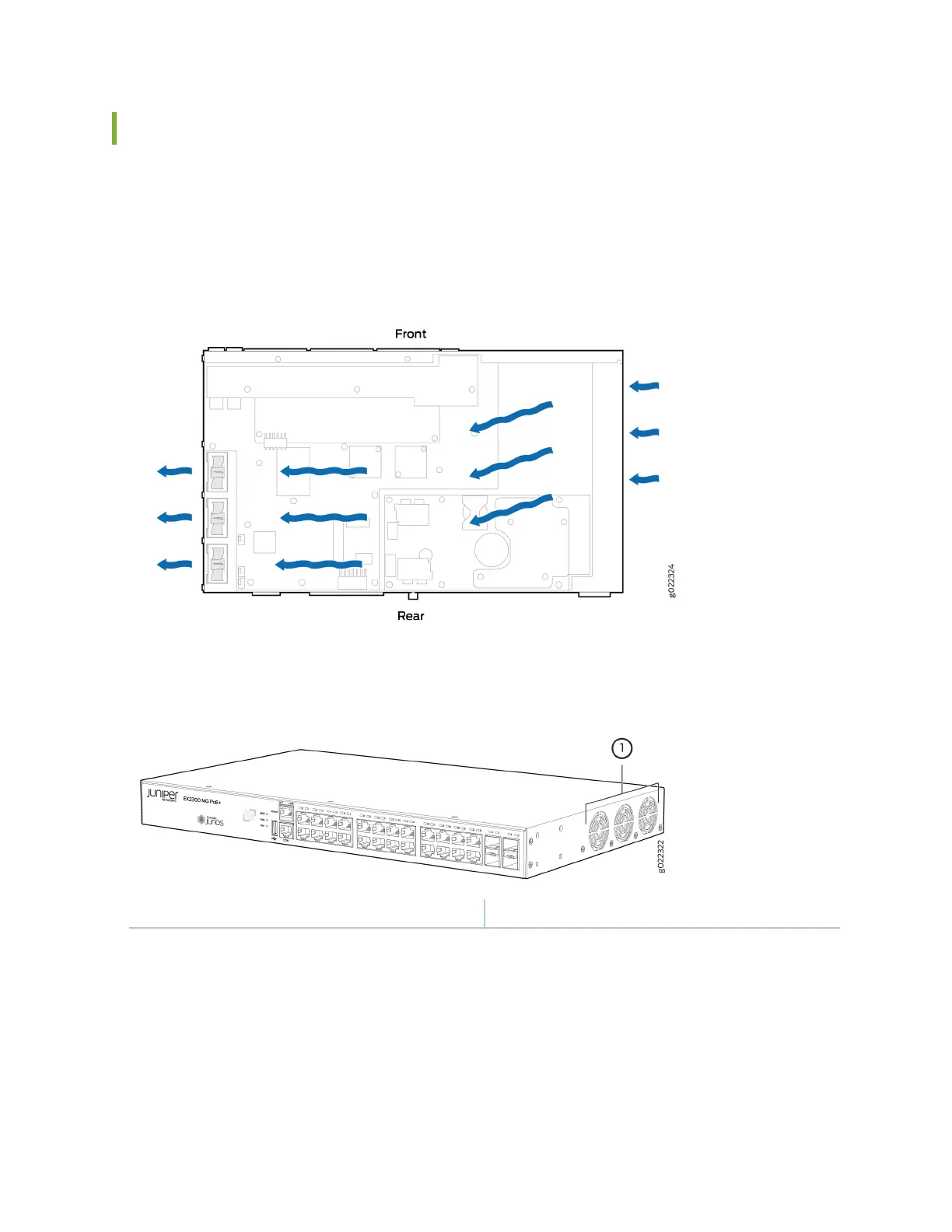

Figure 33 on page 42 shows the airow in the EX2300-24MP switch model and Figure 34 on page 42
shows the built-in fans.
Figure 33: Airow Direcon in the EX2300-24MP Switch Model
Figure 34: Fans Built-in on the EX2300-24MP Switch Model
1—
Built-in fans
42
