Airow Direcon in EX2300-48MP Switch Model

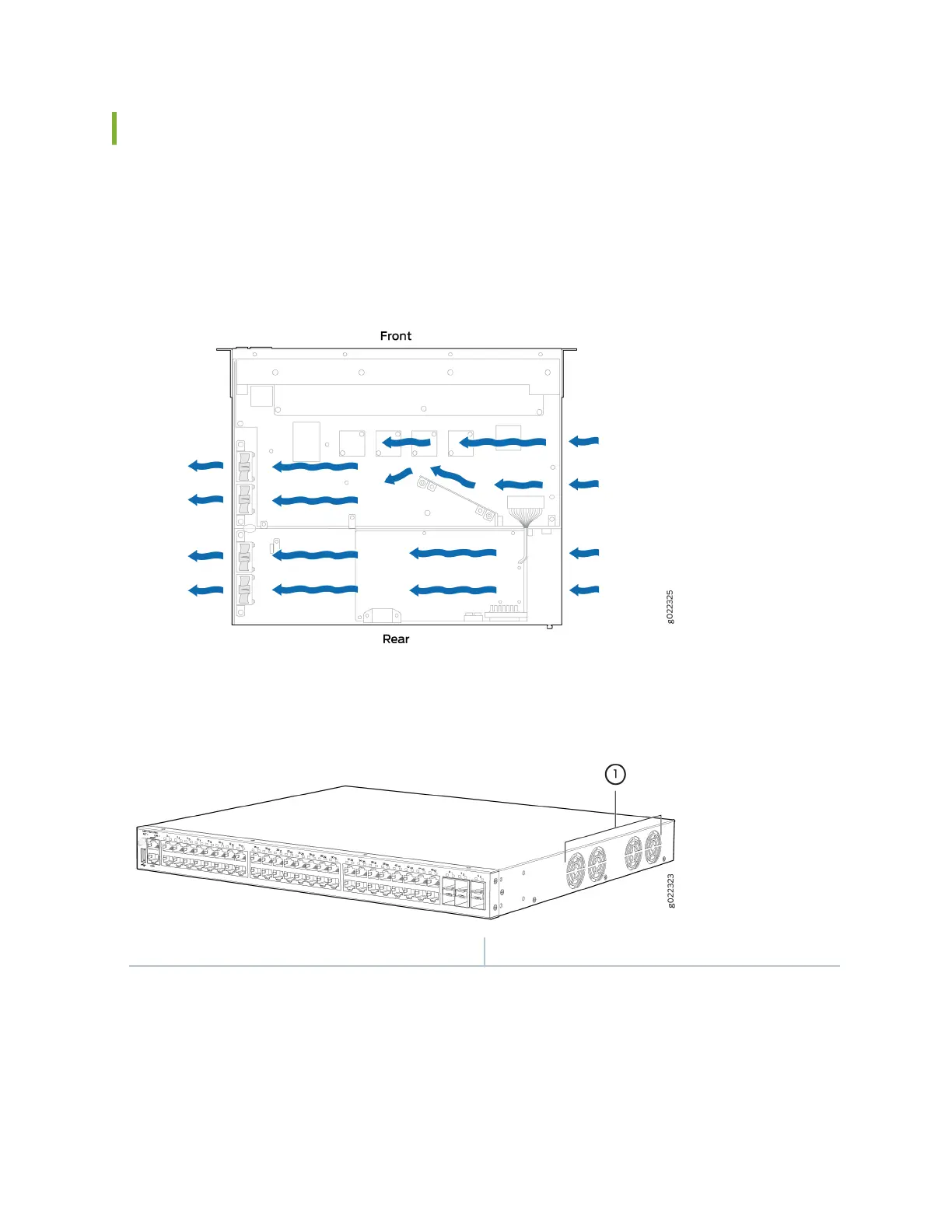

Figure 36 on page 44 shows the airow in the EX2300-48MP switch model and Figure 37 on page 44

shows the built-in fans.

Figure 36: Airow Direcon in the EX2300-48MP Switch Model

Figure 37: Fans Built-in on the EX2300-48MP Switch Model

1—

Built-in fans
