Juniper QFX5240 - Page 10

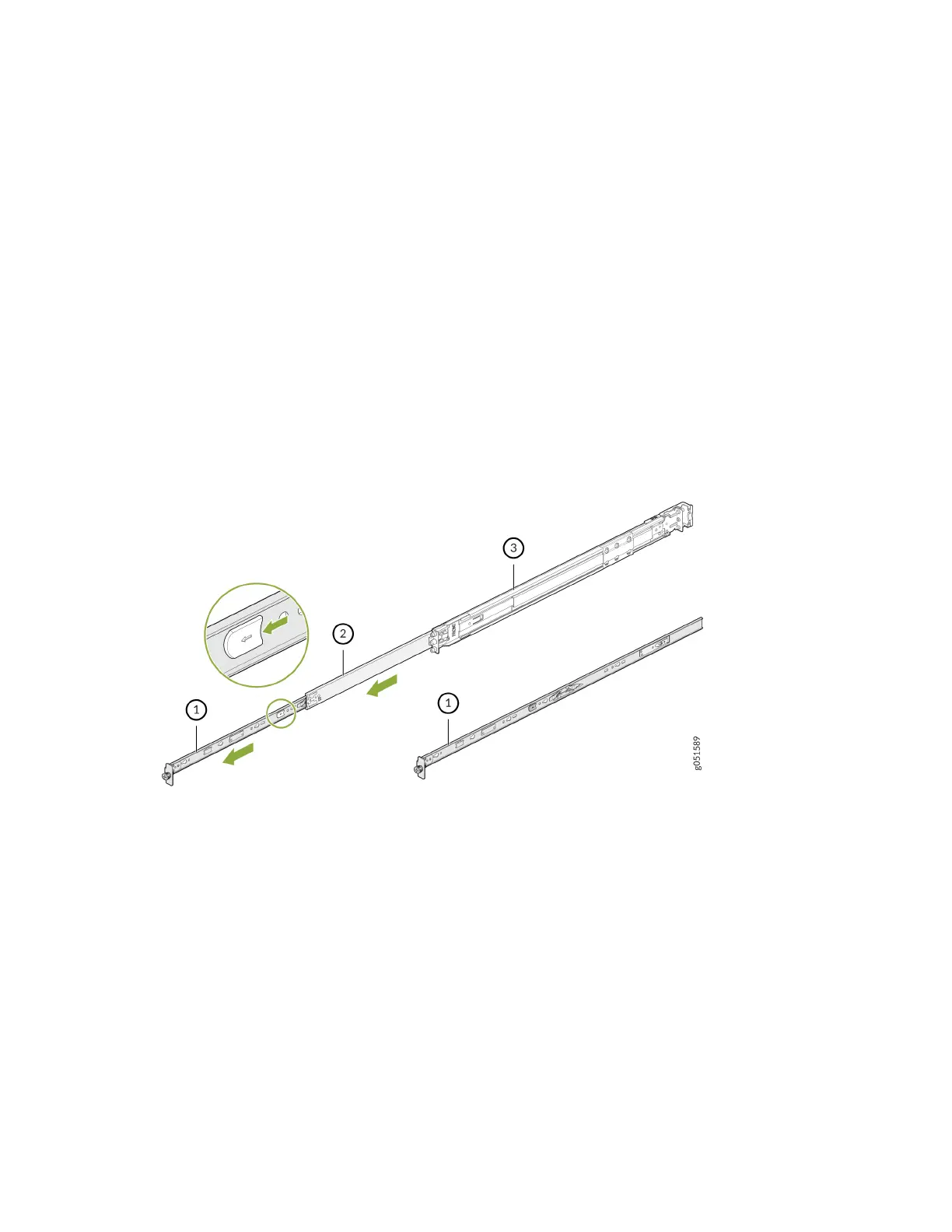

1. Outer rail
2. Slider rail
3. Inner rail bracket
Remove the Inner Rail Bracket from the Slide Rail Assembly
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end to a site ESD point.
2. Hold the slide rail assembly and pull the inner rail bracket and the slider rail out to their full extended
posion unl you hear a click sound.
3. Push the white tab on the inner rail bracket forward and pull the inner rail bracket out of the slide rail
assembly and place it aside.
a. Inner rail bracket
b. Slider rail
c. Outer rail
4. Press the latch on the slider rail down and retract the slider rail into the slide rail assembly.
3
