Juniper QFX5240 - QFX5240 Management Panel Leds

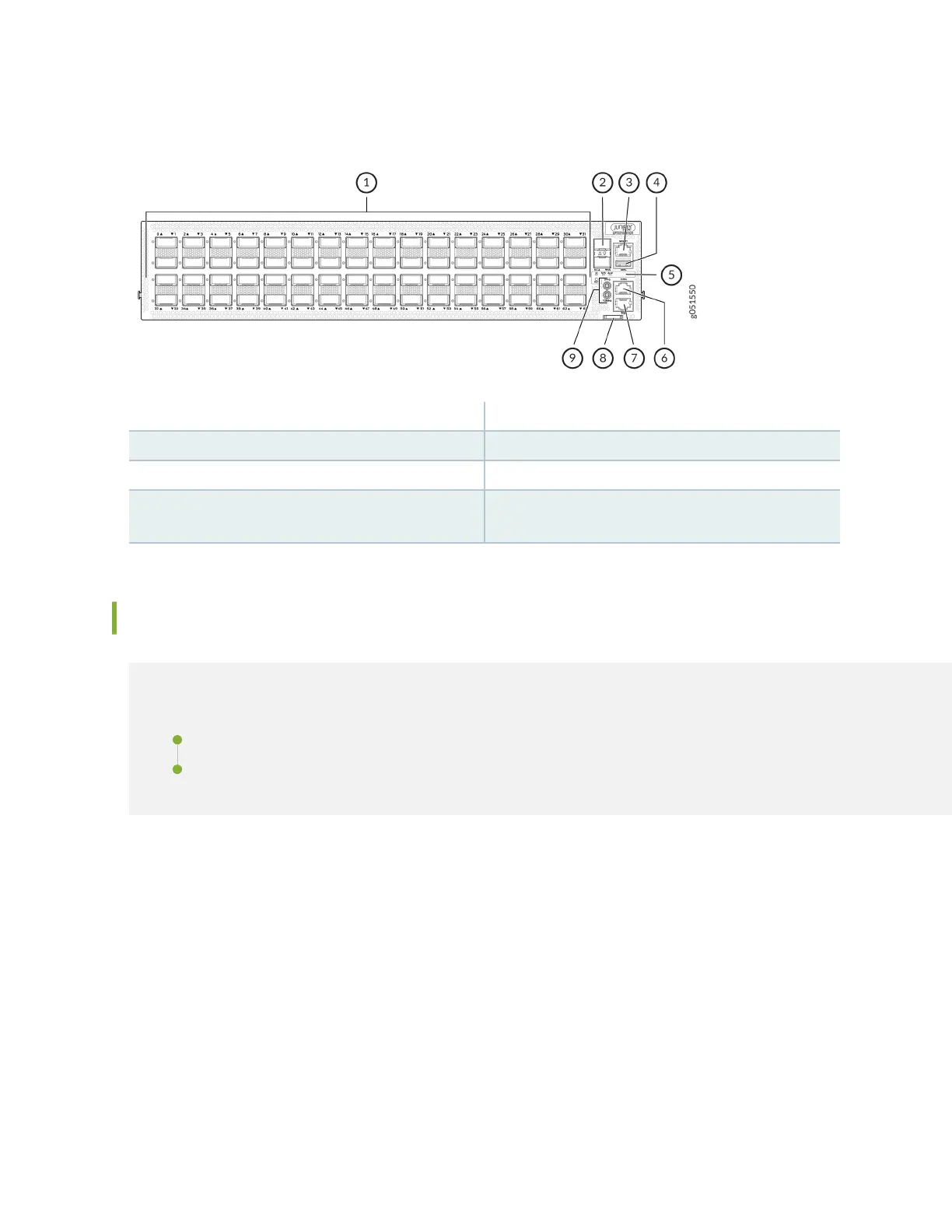

Figure 11: QFX5240-64QD Management Panel
1—
Port Panel
5—
Status LEDs
2—
RJ-45 Ports
6—
CON port
3—
RJ-45 Console Port
7—
Chassis serial number pull-out
4—
USB Port
8—
Clock input and output connectors (10 MHz
and 1 PPS)
QFX5240 Management Panel LEDs
IN THIS SECTION
QFX5240 Chassis Status LEDs | 23
Management Port LEDs | 26
You can nd LEDs on these management panel ports:
• Chassis status LEDs
• RJ-45 management port LEDs
The following secons explain how to interpret these LEDs.
