QFX5240 Management Panel
IN THIS SECTION
QFX5240 Management Panel Overview | 21
QFX5240 Management Panel LEDs | 22
QFX5240 Management Panel Overview
The management panel of the QFX5240 is located to the right of the port panel. See Figure 10 on page
21 and Figure 11 on page 22.

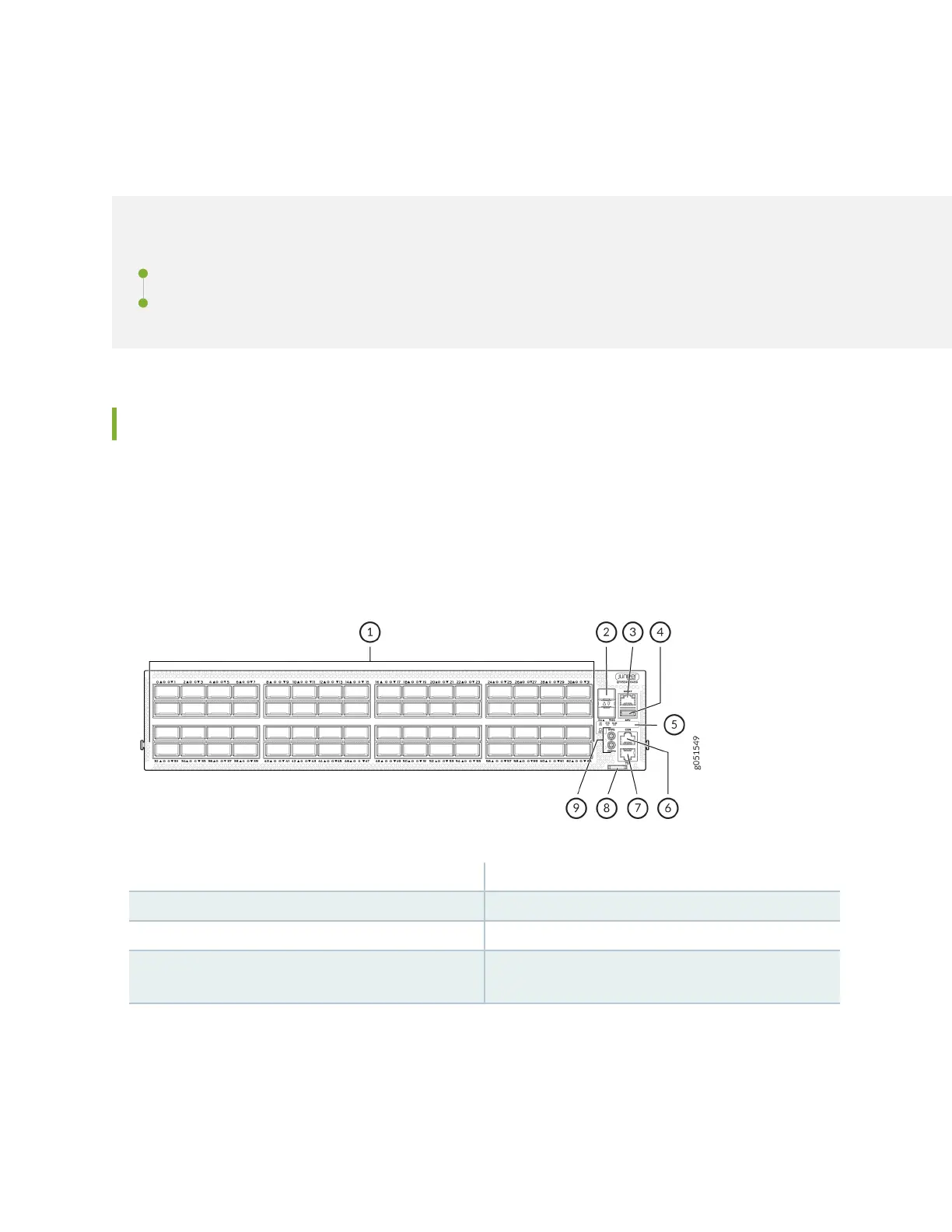

Figure 10: QFX5240-64OD Management Panel
on page 21
1—
Port Panel
5—
Status LEDs
2—
RJ-45 Ports
6—
CON port
3—
RJ-45 Console Port
7—
Chassis serial number pull-out
4—
USB Port
8—
Clock input and output connectors (10 MHz
and 1 PPS)
21
