K-TRON K-Vision User Manual

Docu-No.: 0590020601-EN Rev. 1.6.0 Page 89
Appendix 5
Special KCM LWF features 5.1
The next diagram shows the refill & load cycle when loading of the
loader hopper fails.
Notes:
• Loading restarts after refill or after alarm clear.
• VCT = valve close time
• MLT = maximum load time
• Prox Switch input High = no material at probe

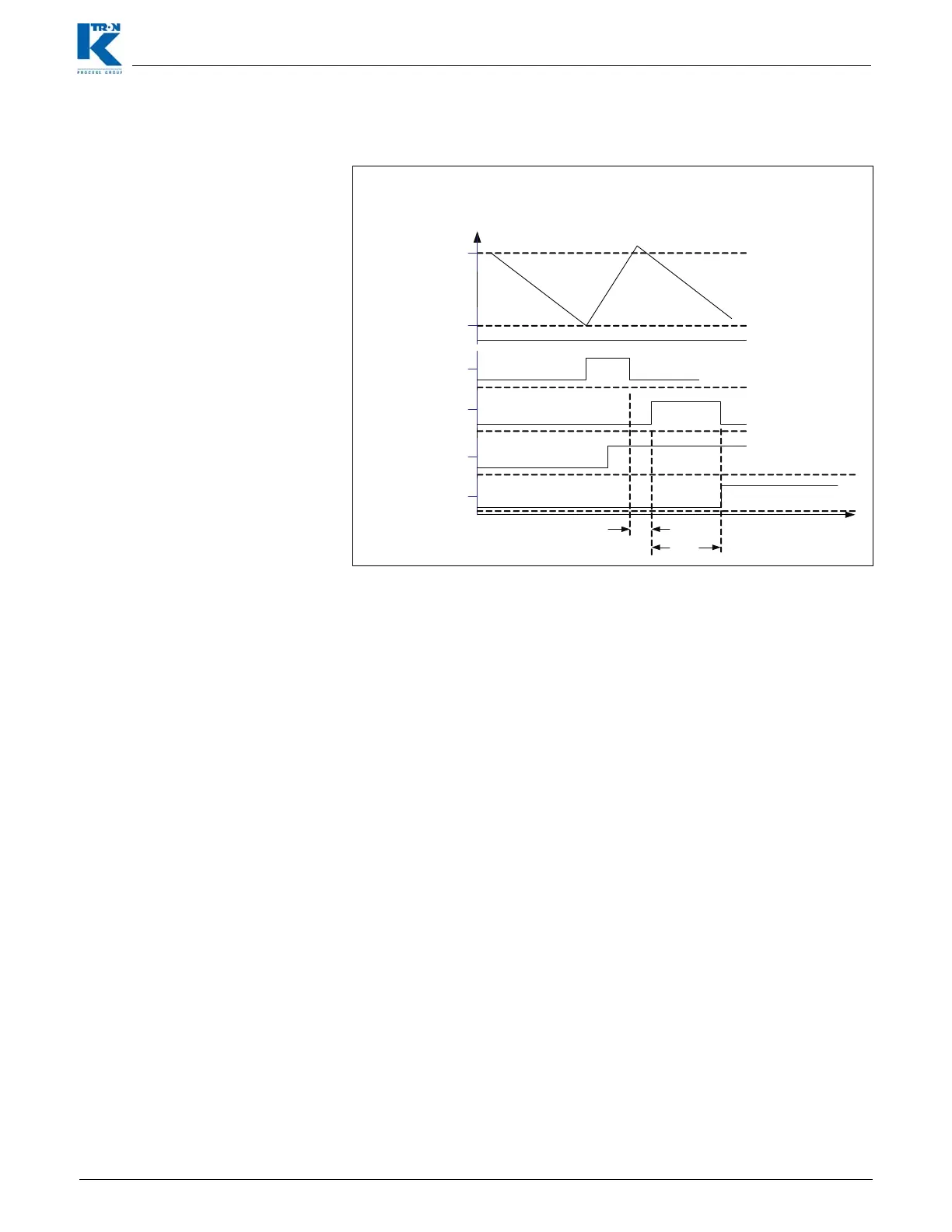

Fig. 5.5 Normal refill but failed loading function diagram
Refill Max
Refill Min
Hopper
Weight
Refill Window
active high
Loader Motor
Hi=On
Prox SW input
Hi = no material
Time
MLT
VCT
Loader Alarm
