K-TRON K-Vision User Manual

5 Appendix
5.1 Special KCM LWF features
Page 90 Docu-No.: 0590020601-EN Rev. 1.6.0
The next diagram shows refill with empty loader due to failed proximity
switch
Notes:
• DT = discharge time
• Prox Switch input Low = material at probe

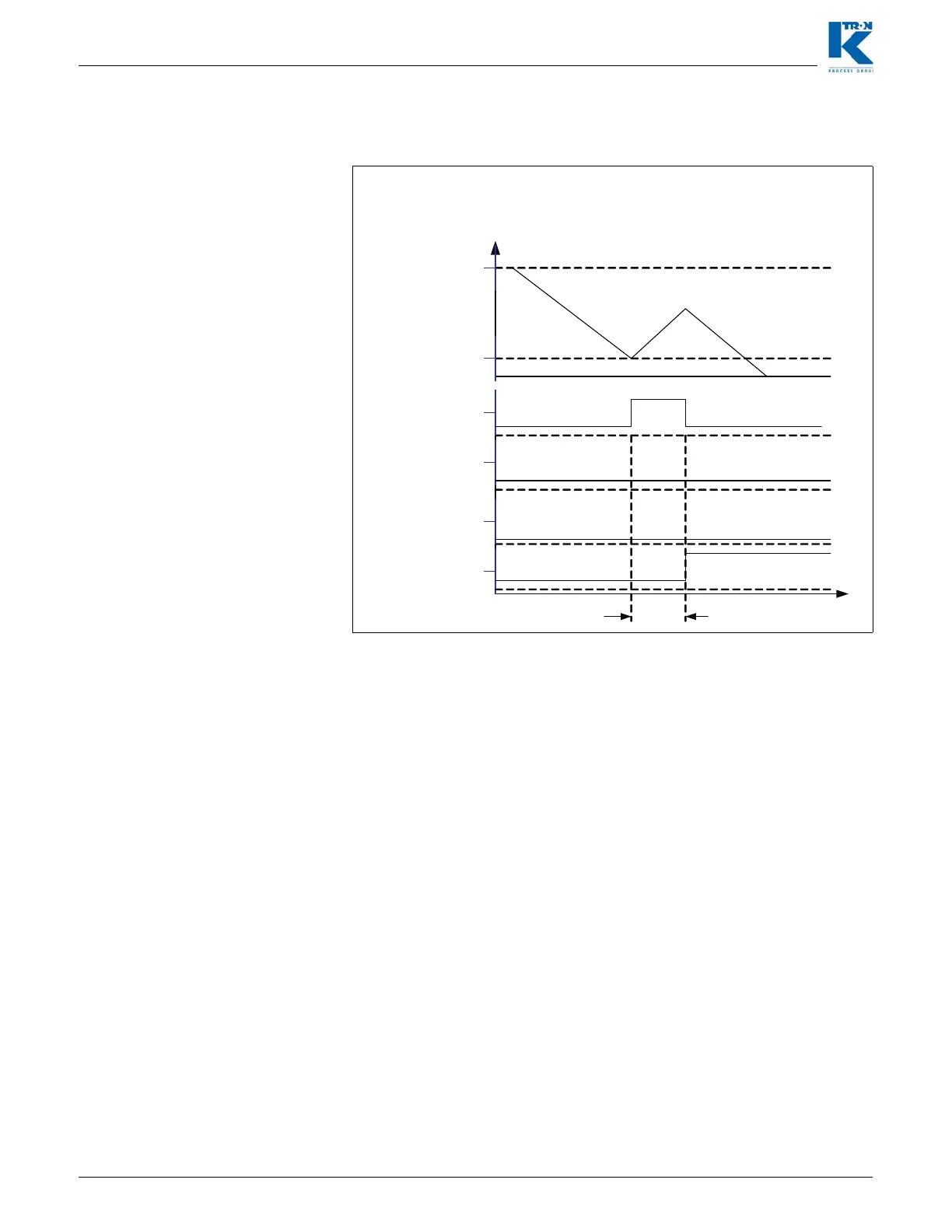

Fig. 5.6 Refill with empty loader due to a failed high level prox. switch
Refill Max
Refill Min
Hopper
Weight
Refill Window
active high
Loader Motor
Hi=On
Prox SW input
Low = material
Time
DT
Loader Alarm
