Special KCM LWF features 5.1
The next diagram shows refill during loading of the loader hopper.
Note:
VCT = valve close time
ST = shutdown time for the loader motor

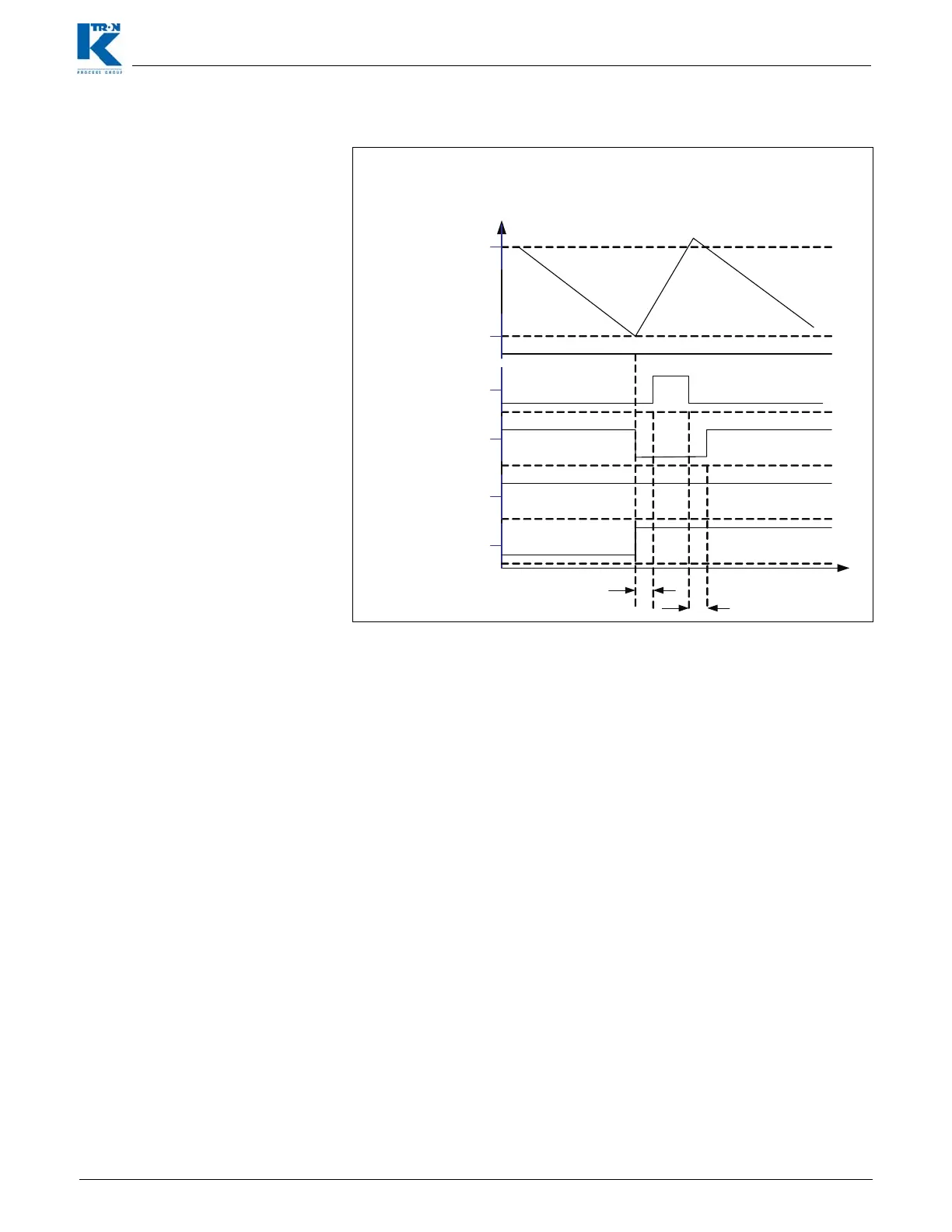

Fig. 5.7 Refilling while loading the hopper loader function diagram
Refill Max
Refill Min
Hopper
Weight
Refill Window
active high
Loader Motor
Hi=On
Prox SW input
Hi = no material
Time
ST
Loader Alarm
VCT
