5 Appendix
5.1 Special KCM LWF features
Page 92 Docu-No.: 0590020601-EN Rev. 1.6.0

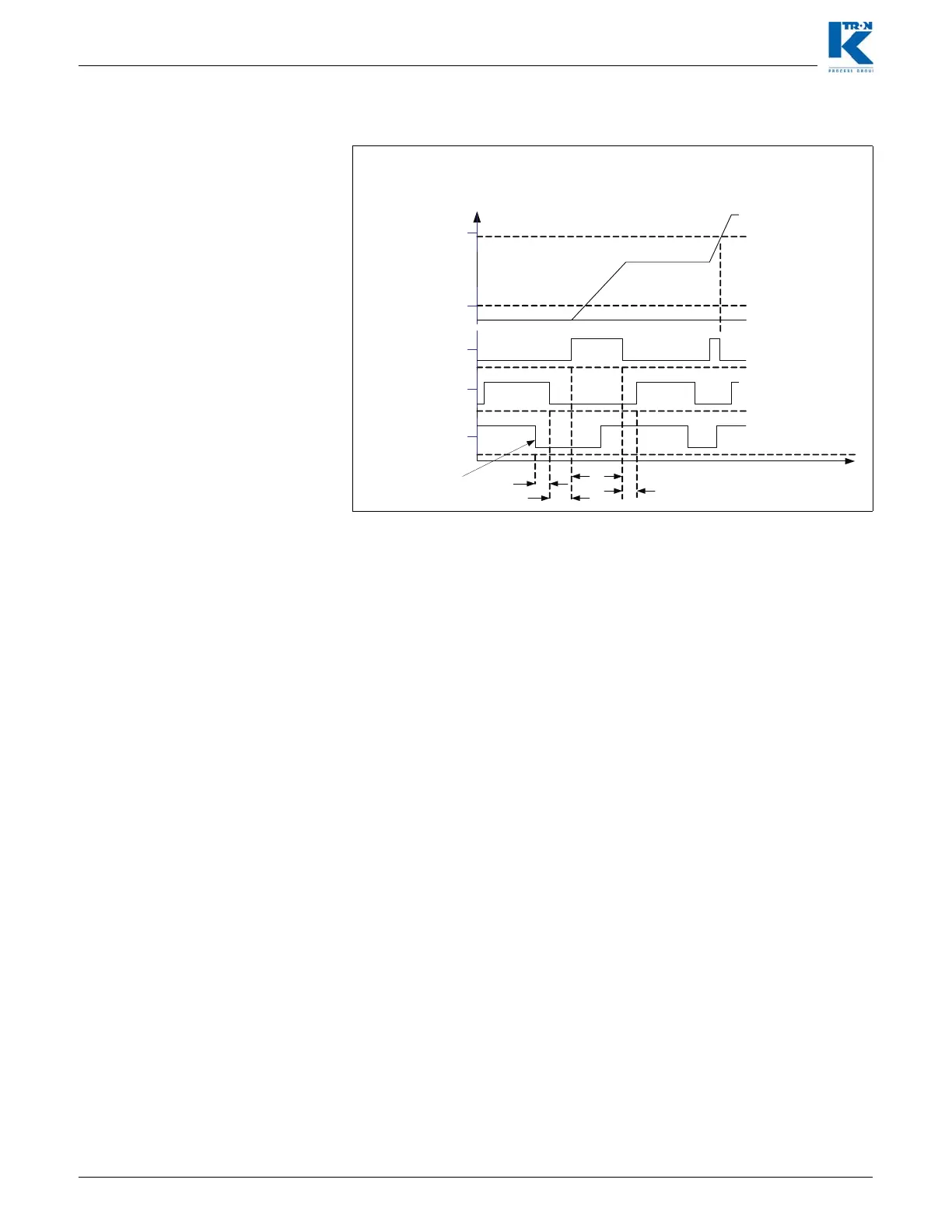

The next diagram shows loading an empty hopper.
Notes:
• SH = loader motor shutdown time
• DT = discharge time
• VCT = valve close time
• #1 refers to when the loader is full and the high level proximity
switch is On.
When the refill does not complete by the weight level, there is a
programmable <Discharge Timer> parameter. If the valve is open for
this time, it will close so the loader can start. After the loader is full and
the motor stops, it waits for a programmable <Motor Shutdown Time>.
After this time, it will reopen the valve. This cycle continues until the
refill is completed.
Fig. 5.8 Loading an empty loader and refilling function diagram
Refill Max
Refill Min
Hopper
Weight
Refill Window
active high
Loader Motor
Hi=On
Prox SW input
Hi = no material
Time
DT
2 sec
SH
VCT
#1
To Next Page
