KAESER M26 - Frost Protector Maintenance; Fig. 40 Tool Lubricator Maintenance

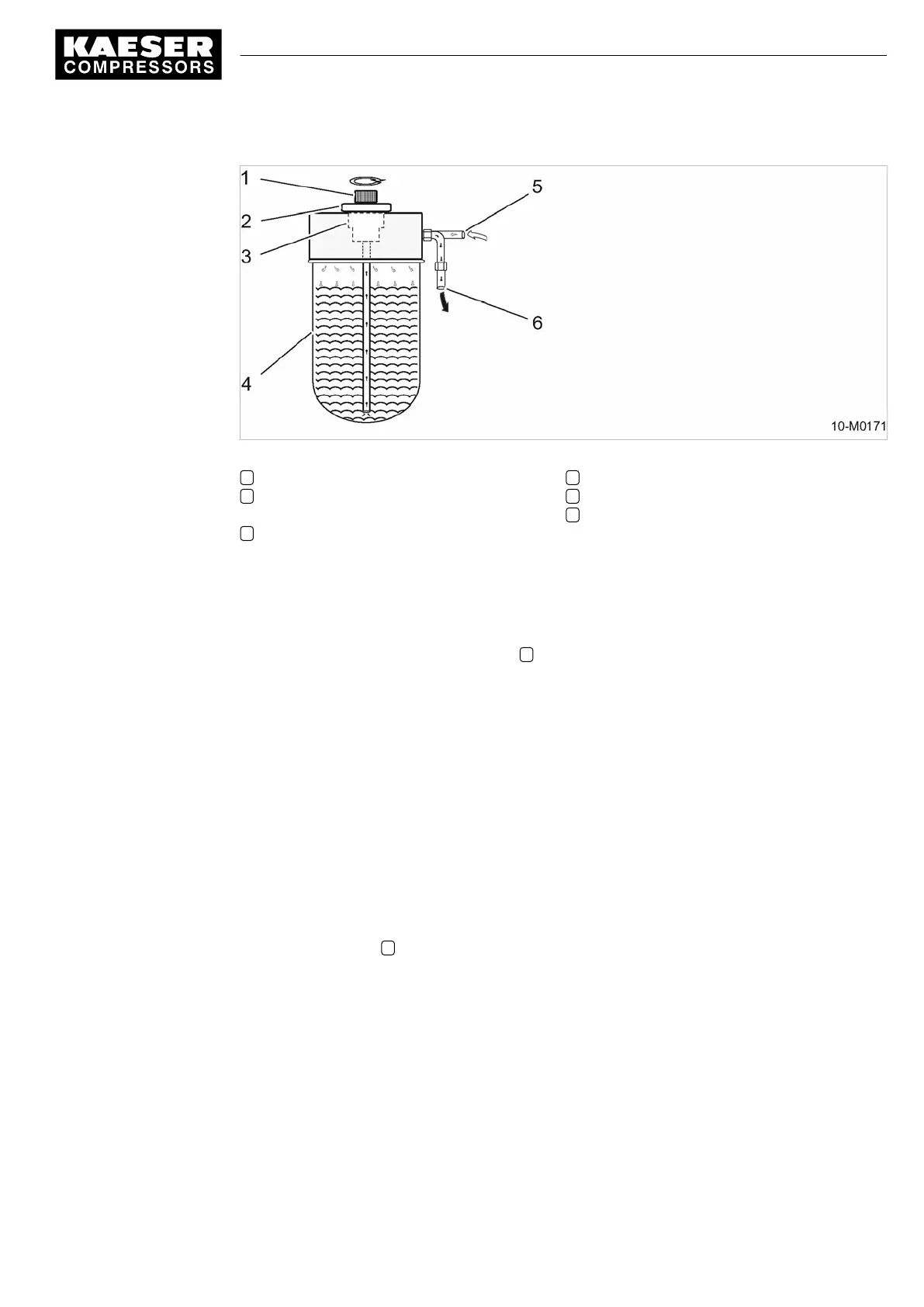

Fig. 40 Tool lubricator maintenance
1 Metering knob
2 Filler plug with dipstick and integrated riser
tube
3 Oil filler port
4 Oil tank
5 Compressed air inlet
6 Tool oil outlet
Checking the tool lubricator oil level
Check the oil level daily.
1.
Raise the canopy.
2. Slowly unscrew and withdraw the plug 2
from the oil filler port.
A dipstick is attached to the plug.
3.
Wipe off the dipstick with a lint-free cloth or rag and screw the plug fully in again.
4. Unscrew and withdraw the plug once more and read off the oil level on the dipstick.
The oil level should be in the upper third of the dipstick. Top up if the oil does not reach this
level.
Topping up with tool lubricator oil
1. Use the funnel to top up oil to 10 - 15 mm below the top of the oil tank
(see chapter 2.7.1 for oil grade and quantity).
2. Check the oil level again.
3. Check the filler plug gasket for damage.
Change a damaged gasket immediately.
4. Replace the plug 2
in the filler port.
10.6.2 Option ba
Frost protector maintenance
At temperatures under 40°F, the level of antifreeze in the protector must be checked daily before
starting the compressor.
