4.2 Component identification

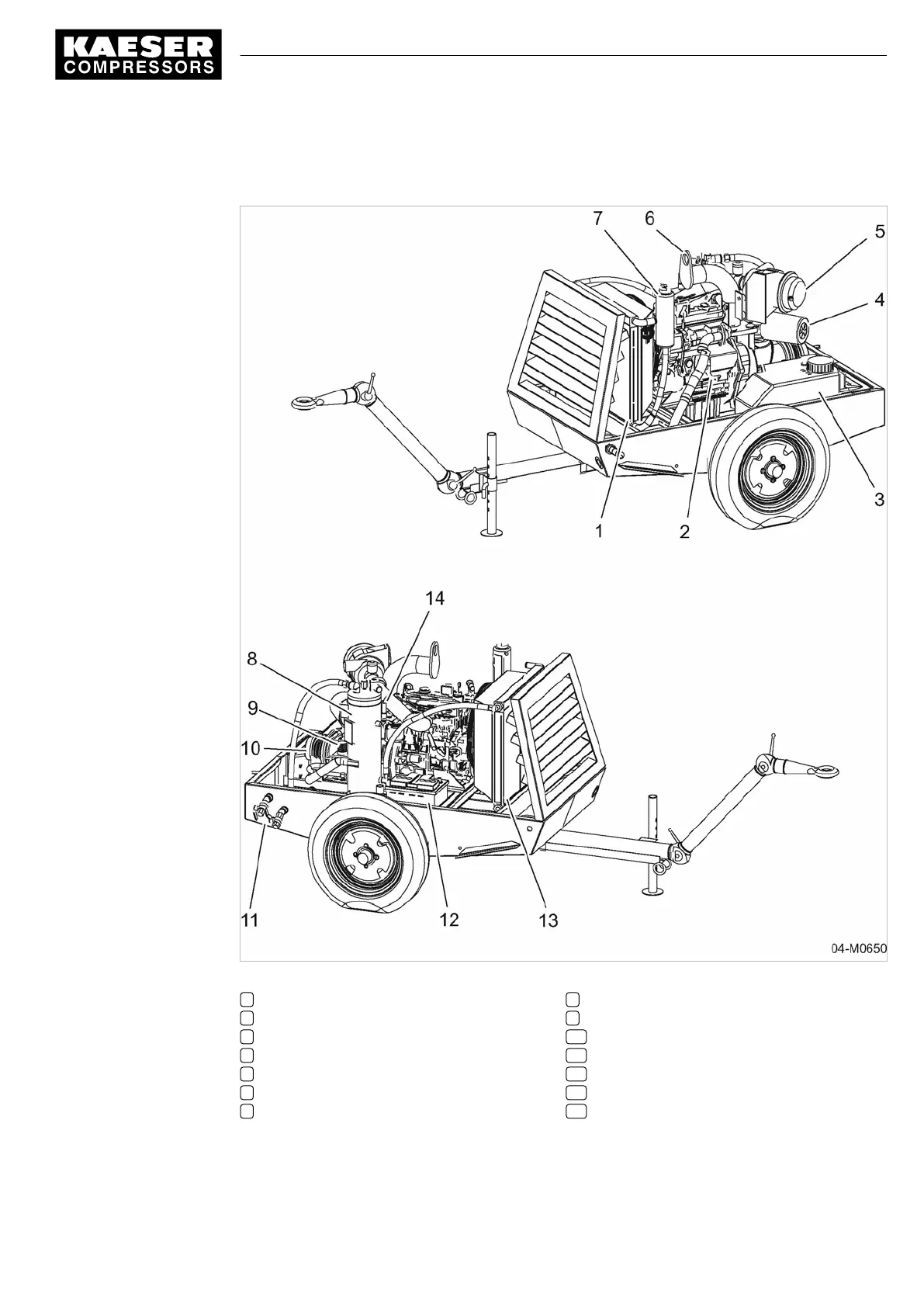

Fig. 3 Side view (canopy removed)

1 Water cooler

2 Drive motor

3 Fuel tank

4 Compressor air filter

5 Engine air filter

6 Lifting eye

7 Coolant expansion tank

8 Oil separator tank

9 Thermostatic valve

10 Airend

11 Compressed air outlet valve

12 Battery

13 Oil cooler

14 Pressure relief valve
