10.3.5 Changing the engine oil filter
Material Spares
Common tools
Cleaning cloths
Receptacle
Precondition The machine is shut down.
The machine is fully vented, the pressure gauge reads 0 psig.
Engine cooled down.
All compressed air consumers are disconnected and the air outlet valves are open.
Danger of burns from hot components and escaping engine oil!
➤ Wear long-sleeved clothing and gloves.

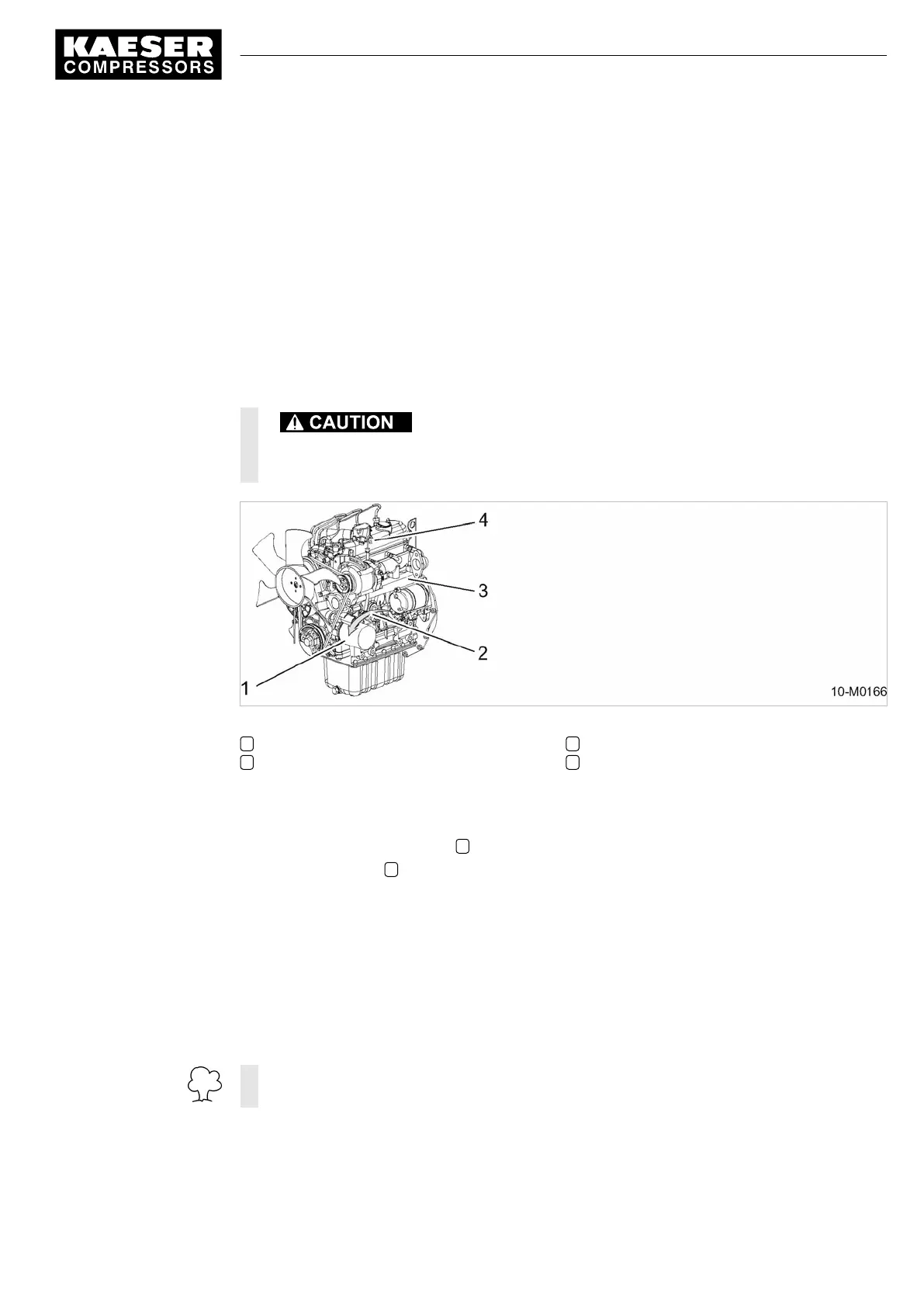

Fig. 28 Changing the engine oil filter
1 Engine oil filter
2 Direction of rotation to unscrew the filter
3 Engine
4 Oil dipstick
1. Raise the canopy.
2.
Prepare a receptacle.
3. Note the direction of rotation 2
to unscrew the filter.
4.
Unscrew the filter 1
. Catch any escaping oil.
5.
Carefully clean sealing surfaces using lint-free cloth.
6. Lightly oil the new filter's gasket.
7. Turn the oil filter clockwise by hand to tighten.
8. Check the engine oil level.
Top up if the level is too low.
9. Close the canopy.
Further information The engine service manual gives further information on oil filter changing.
Dispose of old oil filters, old oil and materials contaminated with oil according to environmen‐
tal protection regulations.
