KAESER M26 - Fig. 11 Change from Eye to Ball Coupling (Height Adjustable Towbar)

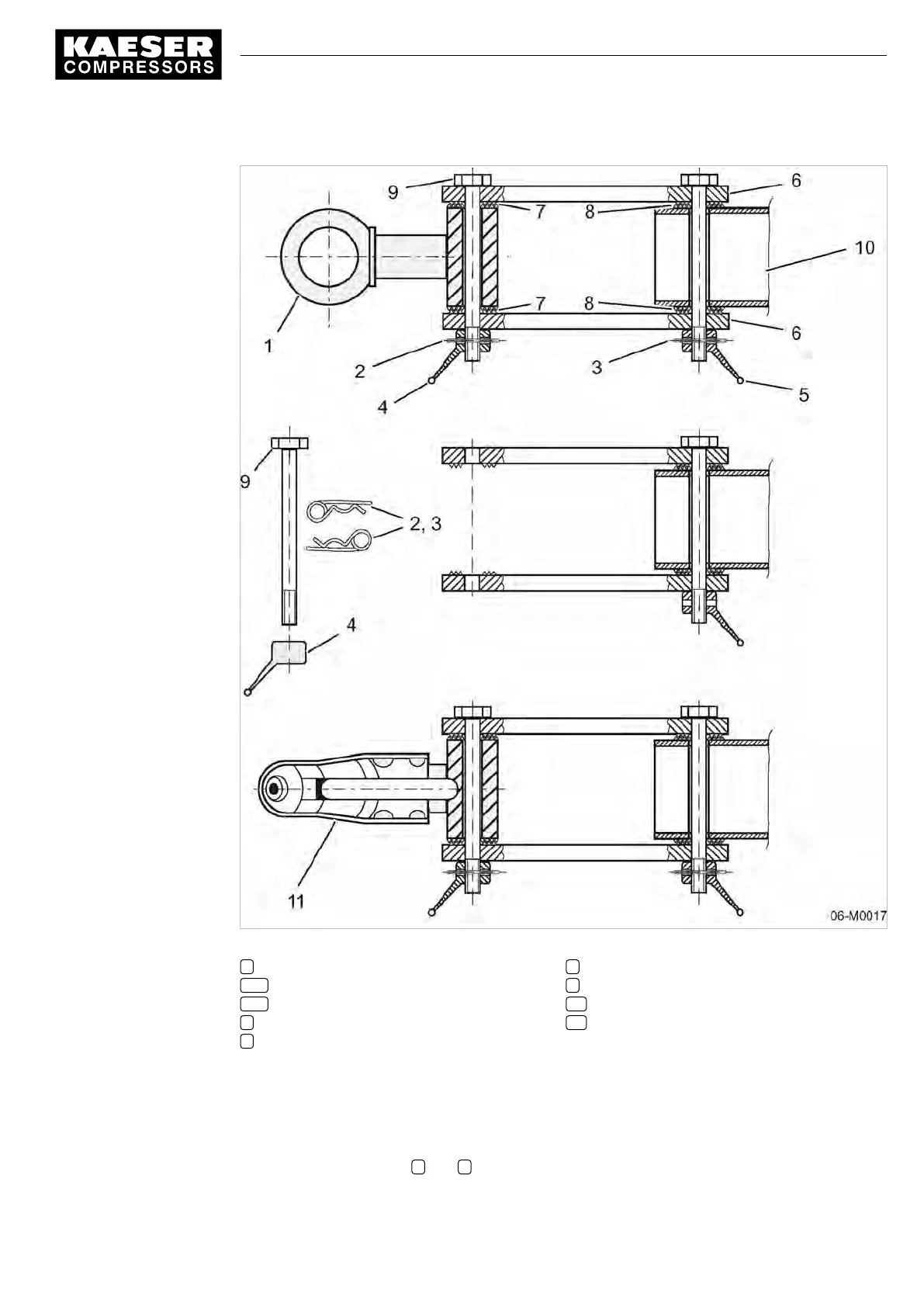

Fig. 11 Change from eye to ball coupling (height adjustable towbar)
1 Towing eye
2, 3 Split pin
4, 5 Locking lever
6 Side part
7 Serrated joint
8 Serrated joint
9 Hex-head bolt
10 Towbar tube
11 Ball coupling
➤ Check that the ball coupling to be fitted is complete.
➤
Proceed as illustrated.
Removing the towing eye
1. Remove the split pins 2
and 3 .
6 Installation
6.3 Adjusting the chassis
No.: 9_9446 01 USE
SERVICE MANUAL Screw Compressor
M26
43
