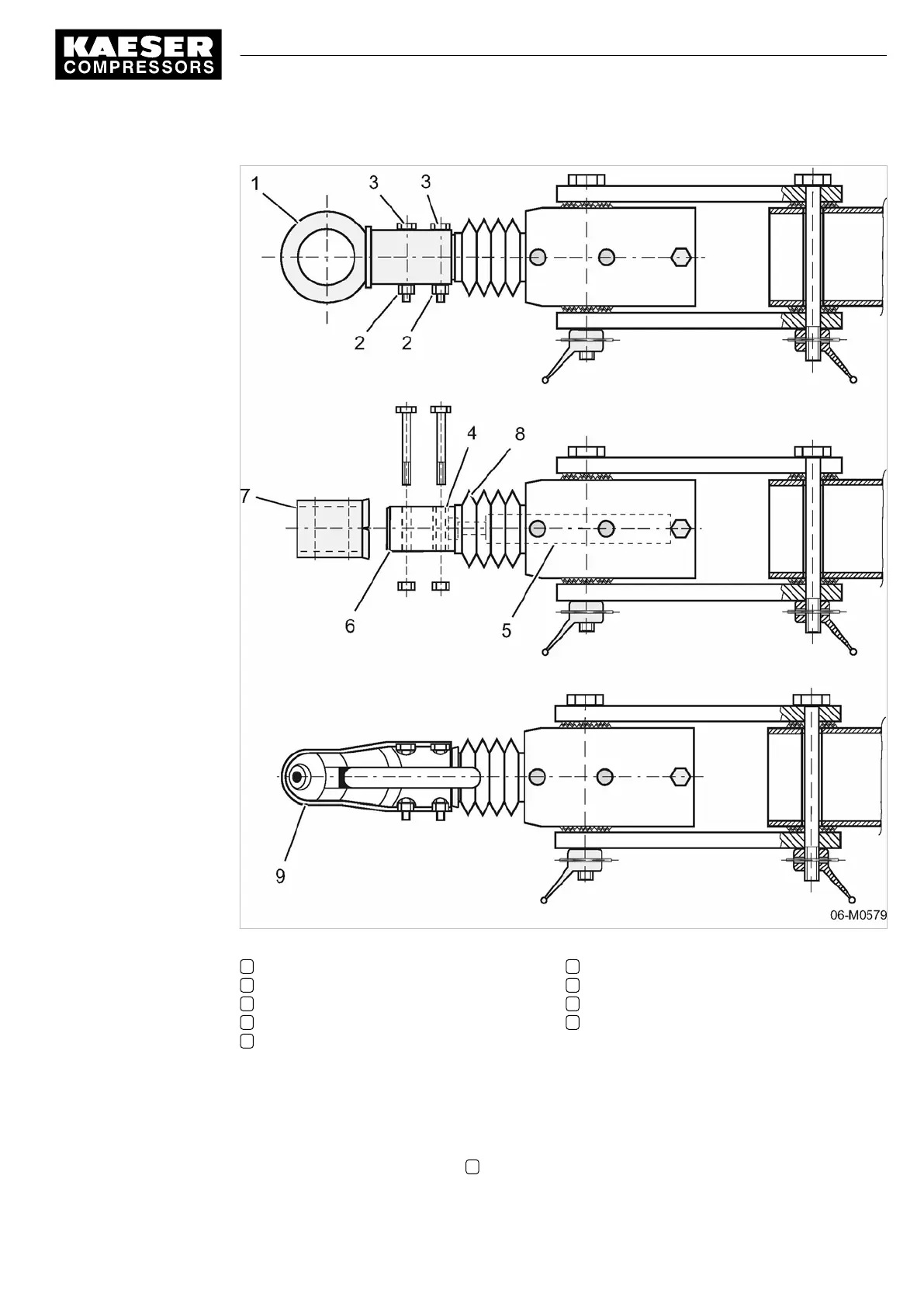

Fig. 12 Change from eye to ball coupling (height adjustable towbar with overrun brake)

1 Towing eye

2 Self-locking nut

3 Screw

4 Bushing overrun damper

5 Overrun damper

6 Tension rod

7 Saddle

8 Protective sleeve

9 Ball coupling

➤ Check that the ball coupling to be fitted is complete.

➤

Proceed as illustrated.

Removing the towing eye

1. Loosen and remove both nuts 2
