KAESER M26 - Fig. 13 Change from Eye to Ball Coupling (Fixed Height Towbar)

6.3.3.3 Option sd
Changing a fixed height towbar from eye to ball coupling

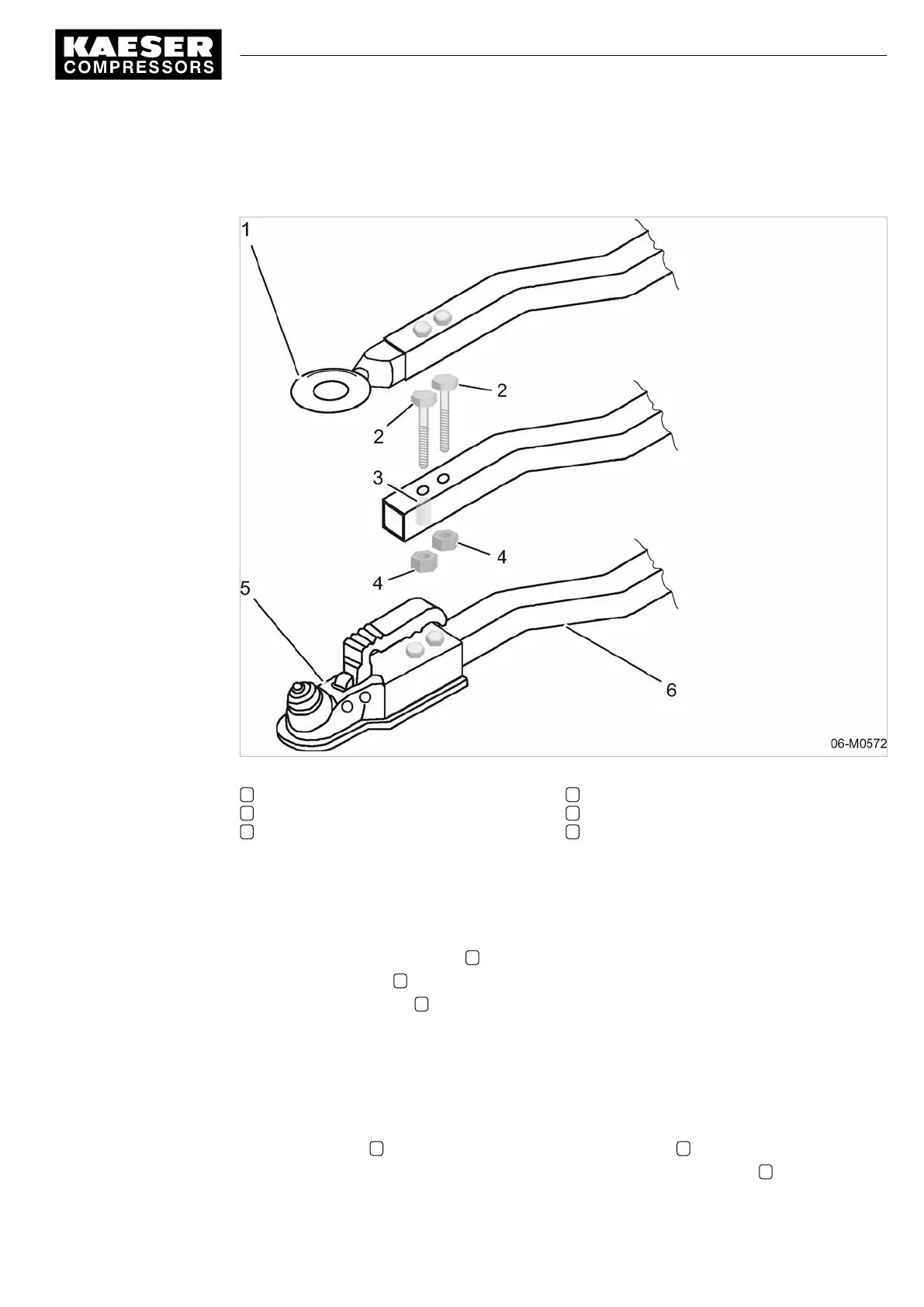

Fig. 13 Change from eye to ball coupling (fixed height towbar)
1 Towing eye
2 Screw
3 Sleeve
4 Self-locking nut
5 Ball coupling
6 Towbar tube
➤ Check that the ball coupling to be fitted is complete.
➤
Proceed as illustrated.
Removing the towing eye
1. Loosen and remove both nuts 4
.
2.
Remove both bolts 2
.
3.
Pull off the towing eye 1
.
Fitting the ball coupling
Precondition The towing eye has been removed.
The assembly condition as shown in the center graphic in
13 has been achieved.
The complete ball coupling is to hand.
1. Position sleeve 3
on the corresponding hole within the towbar 6 .
2.
If necessary, use a metal rod to adjust until the hole is flush with the sleeve 3
.
