The machine is equipped with a plastic fuel tank to save weight.
The securing strap of the fuel tank is working properly as soon as the locking mechanism is proper‐
ly tightened with the correct tool
Your manual force is sufficient to tighten the screw of the locking mechanism!

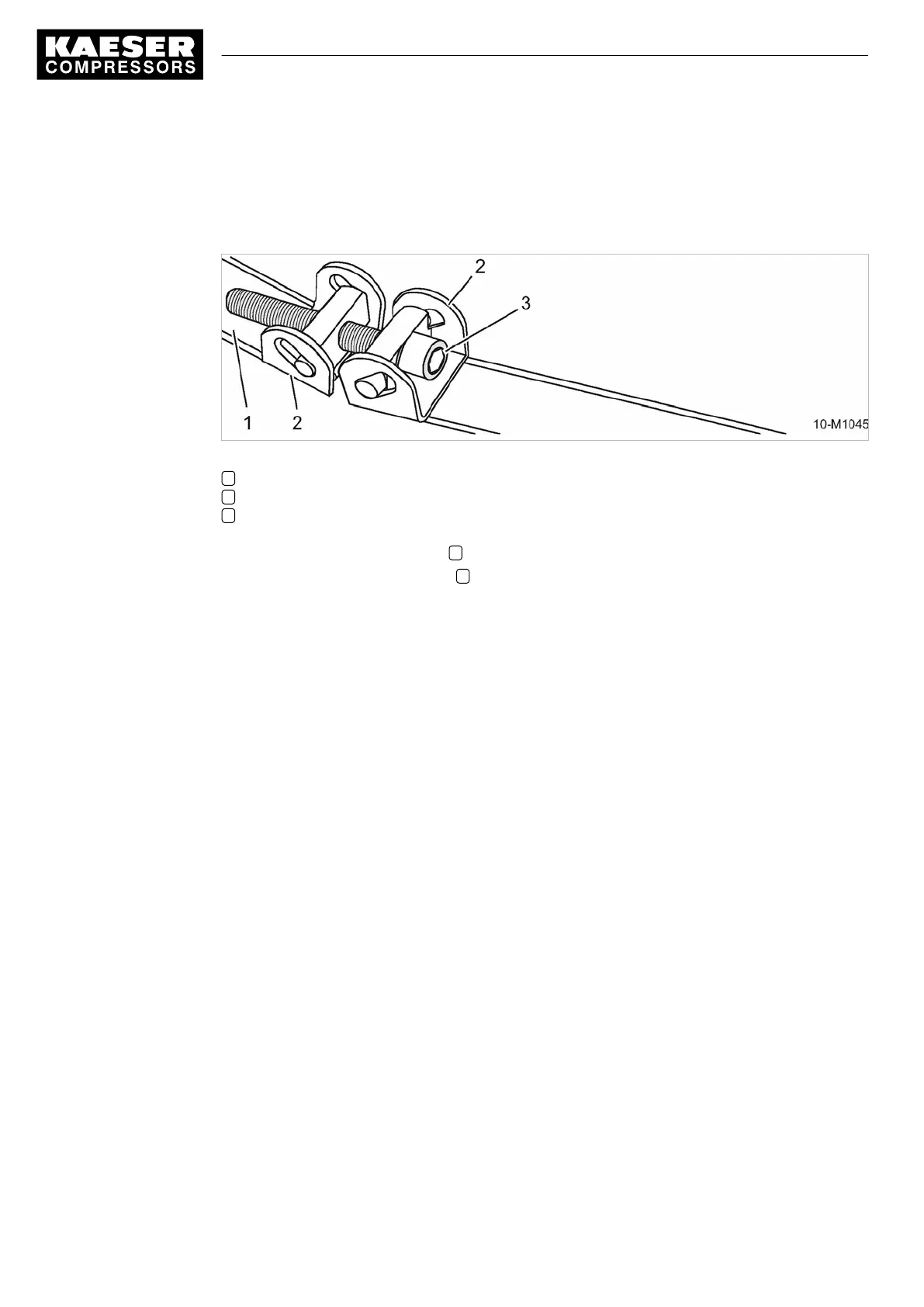

Fig. 24 Checking the securing strap
1 Securing strap
2 Locking mechanism
3 Screw
1. Ensure that the securing strap 1 is firmly gripped.
2.
If required, re-tighten the screw 3
manually.
3.
Check again that the securing strap is firmly gripped.
The fuel tank is properly secured.
10.3.3.2 Option ne
Maintaining the fuel water trap
The fuel water trap is positioned between the fuel tank and the fuel pre-filter.
It protects the fuel pump against water that separates out from the diesel and against early wear.
Material Wrench
Receptacle
Cleaning cloths
Precondition The machine is shut down.
The machine is standing level.
The machine is fully vented, the pressure gauge reads 0 psig.
Machine cooled down.
The negative cable to the battery is disconnected.
